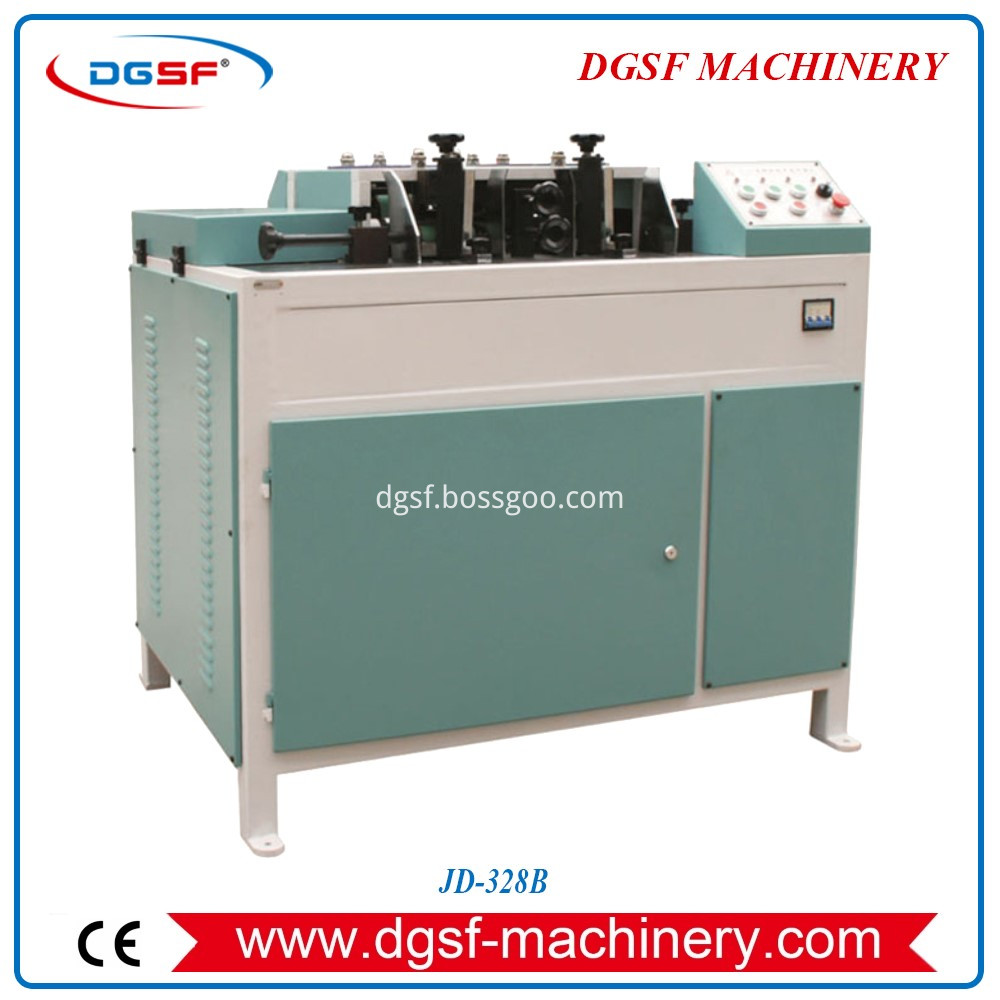

Automatic Double-Head Insole Skiving Machine JD-328B

Product Description

USE

The machine adapts to skiving any size of insole inserted with shank board, it is good for sticking, pressing, forming of insole and improving the quality of products.

CHARACTERS

1.Adopt the unique straight line feeding mechanism, belt type pressing material,high speed conveying and skiving ,guarantee feeding and skiving stable and reliable.

2.Adopt unique alloy spiral knife, double-head skiving design system, respectively skiving left and right shank board, avoid the lack of edge angle.

3.Can feed and skive left and right insole at the same time, greatly improve the work efficiency.

4.Double dust collecting system, keep working environment clean.

5.Skiving discharging exit is equipped with belt type automatic stack, tidy the material more conveniently and easily.

PARAMETER

Model: JD-328B

Total power: 4.2kW

Power: 380V 50Hz

Cutter rotation speed: 5100rpm/min

Output: 19000pcs/hr

Package size: 1530×1100×1080mm

Gross weight / Net weight: 400kg/340kg
