Refrigeration HVAC EEV EXV Electronic Expansion Valve 12VDC
Electronic Expansion Valves (EEV) are designed for use in air conditioning and refrigeration systems or in heat pumps. The valve controls the automatic adjustment of refrigerant flow rate and makes the system work under optimized conditions for the purpose of fast cooling or heating, precise temperature control and energy saving. The valve can also be used e.g. for suction line pressure controls. These valves provide bidirectional operation to control the refrigerant flow rate in heating or cooling mode.
Specifications:
|
Applicable Refrigerants
|
R22, R410A, R407C, R32, R134A, R404A, R507C, etc
|
|
Medium Temperature
|
-30 to +70℃
|
|
Ambient Temperature
|
-30 to +60℃
|
|
Relative Humidity
|
0 to 95% RH
|
|
Coil Voltage
|
12VDC (±10%), rectangular wave
|
|
Coil Current
|
260mA/phase (20°C)
|
|
Coil Resistance
|
46±3.7 Ω/phase (20°C)
|
|
Coil Insulation Class
|
E
|
|
Coil Protection Class
|
IP67
|
|
Excitation Mode
|
1 to 2 phase excitation, monopole actuation
|
|
Excitation Rate
|
30pps to 90pps
|
|
Activation of self-holding mechanism
|
Maintain excitation in stop position min. 0.1 to 1 sec
|
|
Min. motion time from completely open to completely closed
|
5.8s (90pps)
|
Technical Data:
|
Model No
|
Nominal Cooling Capacity (kW)
|
Kv
(m³/h)
|
MOP
(bar)
|
MOPD
(bar) |
ROP
(bar) |
||||
|
R22
|
R407C
|
R410A
|
R32
|
R134A
|
|||||
|
EEV0.6A
|
0.7
|
0.7
|
0.8
|
1.2
|
0.5
|
0.01
|
43
|
35
|
≥25
|
|
EEV0.8A
|
1.2
|
1.3
|
1.4
|
2.1
|
0.9
|
0.017
|
|||
|
EEV1.0A
|
2.7
|
2.8
|
3.1
|
4.6
|
2.1
|
0.025
|
|||
|
EEV1.3A
|
5.3
|
5.7
|
6.2
|
9.2
|
4.2
|
0.05
|
|||
|
EEV1.6A
|
9.0
|
9.5
|
10.5
|
15.5
|
7.0
|
0.08
|
|||
|
EEV1.8A
|
10.6
|
11.3
|
12.5
|
18.4
|
8.3
|
0.1
|
|||
|
EEV2.0A
|
13.2
|
14.0
|
15.4
|
22.8
|
10.3
|
0.16
|
|||
|
EEV2.2A
|
14.2
|
15.1
|
16.6
|
24.5
|
11.1
|
0.2
|
|||
|
EEV2.4A
|
16.7
|
17.7
|
19.5
|
28.8
|
13.0
|
0.23
|
|||
|
EEV3.0A
|
27.6
|
29.4
|
32.3
|
47.7
|
21.6
|
0.39
|
≥15
|
||
|
EEV3.2A
|
30.4
|
32.4
|
35.6
|
52.6
|
23.8
|
0.43
|
|||
|
EEV4.0B
|
50.6
|
53.8
|
59.2
|
87.5
|
39.5
|
0.5
|
≥7
|
||
|
EEV4.5B
|
67.7
|
72.0
|
79.2
|
117.0
|
52.9
|
0.7
|
|||

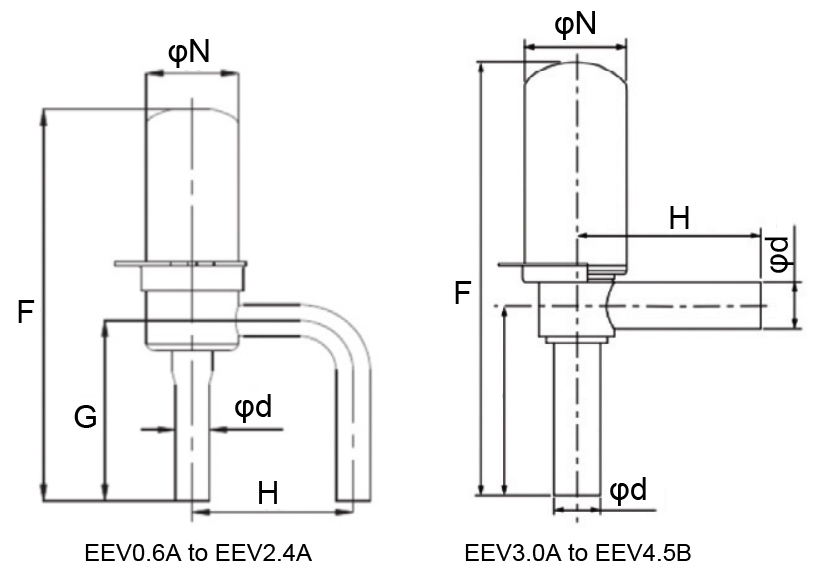

Main Dimension:
|
Model No
|
Orifice Size
(mm)
|
Dimension
(mm)
|
||||
|
F
|
G
|
H
|
φd
|
φN
|
||
|
EEV0.6A
|
0.6
|
80
|
36
|
30
|
6.35
|
17.35
|
|
EEV0.8A
|
0.8
|
|||||
|
EEV1.0A
|
1.0
|
|||||
|
EEV1.3A
|
1.3
|
|||||
|
EEV1.6A
|
1.6
|
|||||
|
EEV1.8A
|
1.8
|
|||||
|
EEV2.0A
|
2.0
|
|||||
|
EEV2.2A
|
2.2
|
|||||
|
EEV2.4A
|
2.4
|
|||||
|
EEV3.0A
|
3.0
|
83
|
39
|
39
|
7.94
|
|
|
EEV3.2A
|
3.2
|
|||||
|
EEV4.0B
|
4.0
|
101
|
47
|
51
|
||
|
EEV4.5B
|
4.5
|
|||||

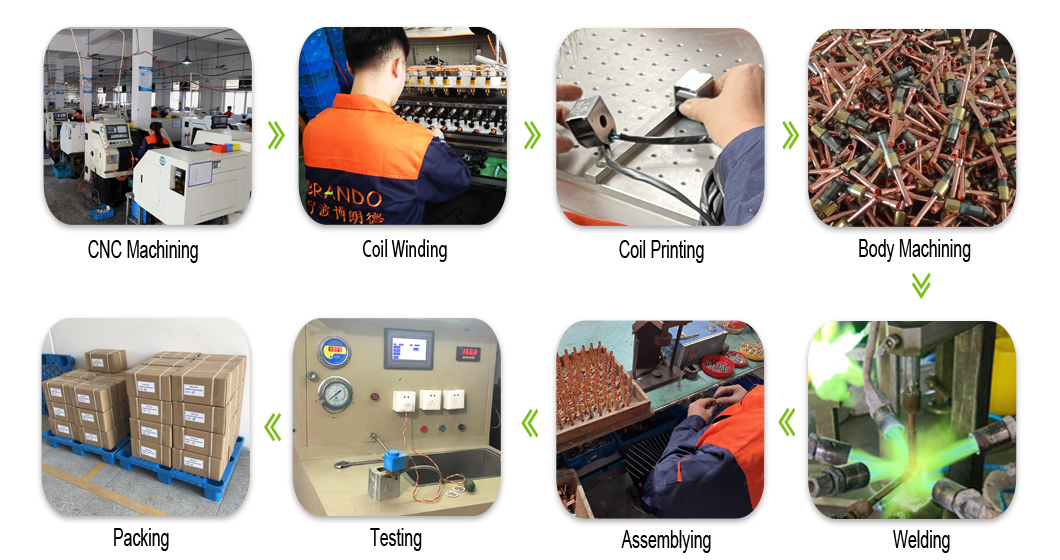

Production Show:
Related Products:
 |
 |
 |
 |

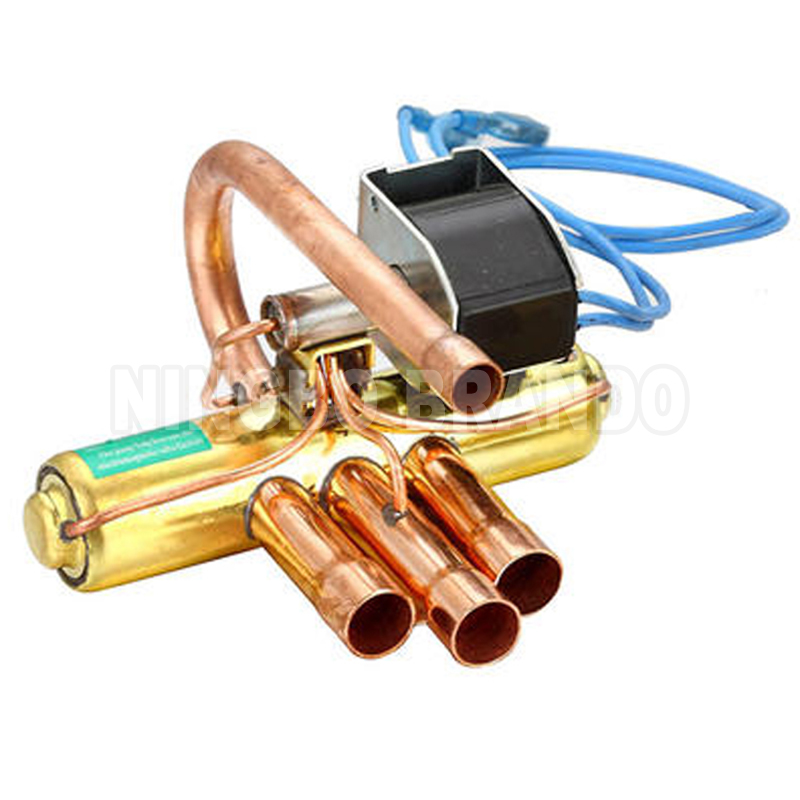

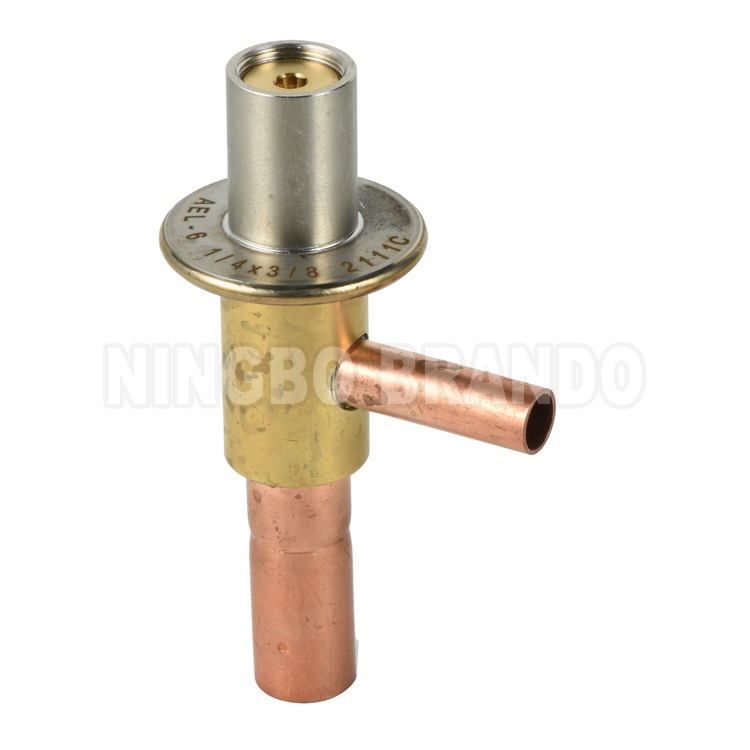

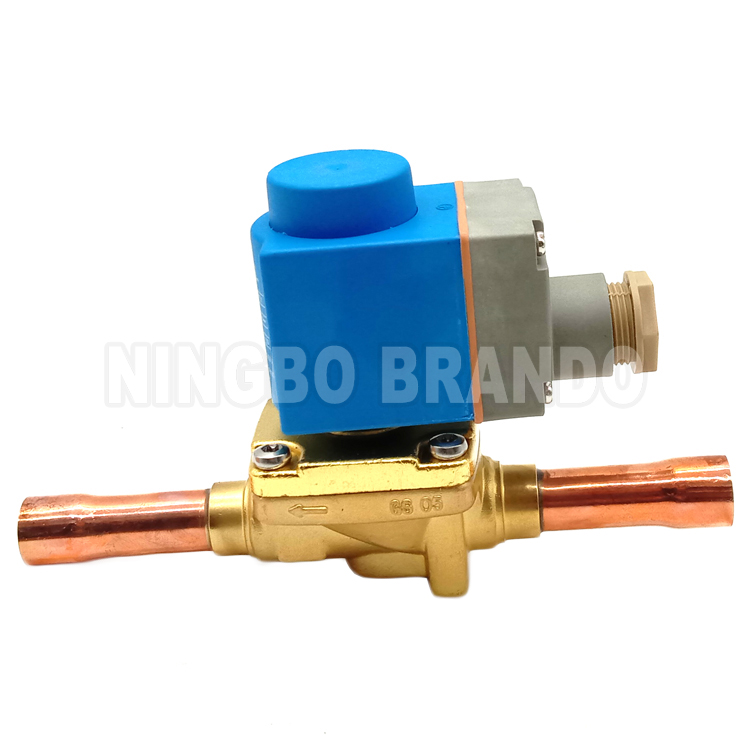

| Refrigeration Solenoid Valve | Thermal Expansion Valve | Automatic Expansion Valve | 4 Way Reversing Valve |
 |
 |
 |
 |
|

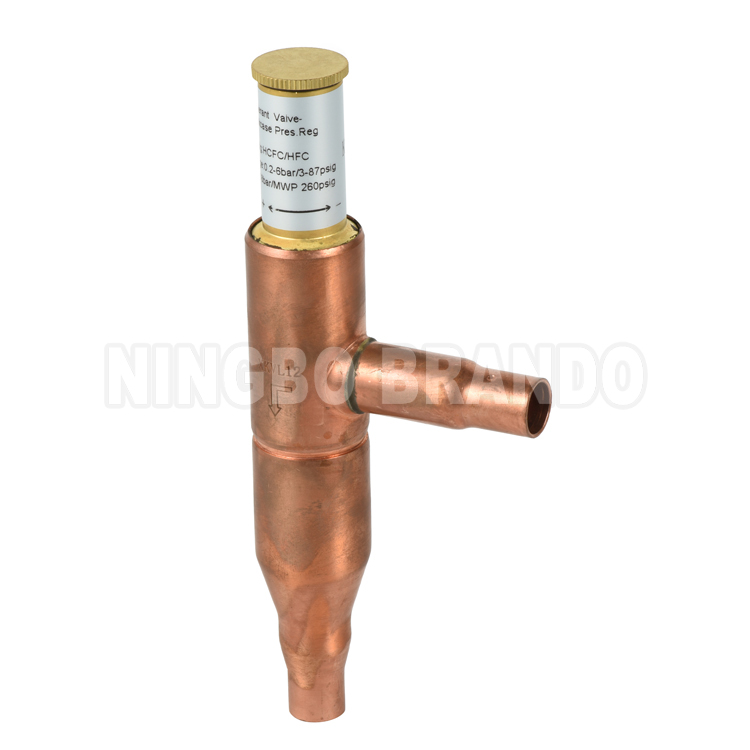

Crankcase Pressure Regulator |

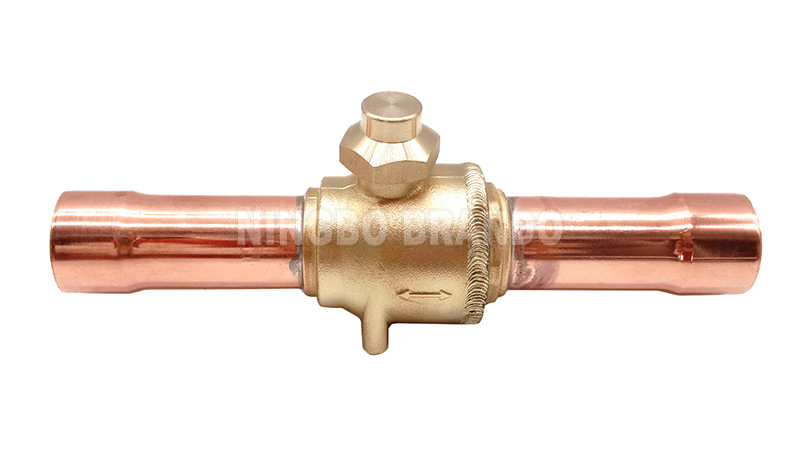

Refrigeration Ball Valve |

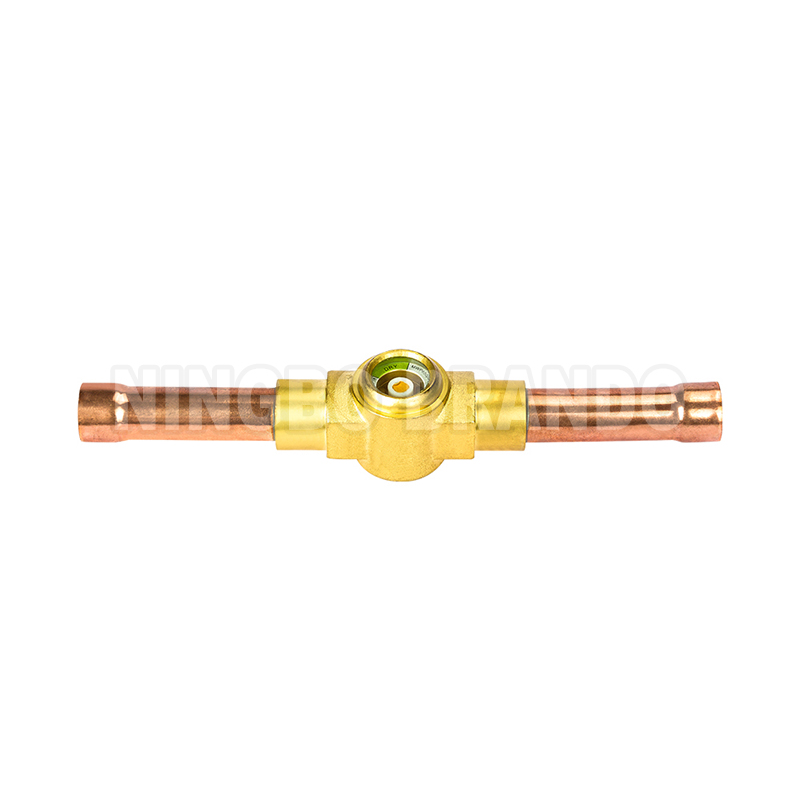

Refrigeration Check Valve | Sight Glass |
