Automatic Lifting Mixer Machine

Features:

●The Automatic Lifting Barrel Blender Machine is very simple, convenient and fast. There are no complex operations such as aligning, clamping, etc. All operations are simplified into the automatic operation procedure of the equipment.

●Compared with former mixing machine, it saves more space, and its weight is far lower than  traditional machines, so it is suitable for floor installation.

●This blending machine has a perfect safety protection system and the gyrator center of gravity is ensured to be within the range of the base. Therefore, it is ensured that the machine can rotate stably and reliably without vibration.

●This powder mixer machine has an increased mixing angle, so that the movement of materials in the mixing barrel is enhanced, the possibility of material layering is reduced and the mixing evenness is improved.

●This Double Column Lift Hopper Mixer is also provided with lifting function. The materials after mixing can be directly subject to in-place lifting and filling, so as to save the space, reduce the transferring process and lower work intensity.

●According to user requirements, it can also be additionally mounted with an automatic weighing system. This weighing system can be connected with PLC to automatically control feeding and filling, ensure consistent weight of materials to be filled and facilitate the measurement and the control of transferring batches.

Summary:

The hopper lifting mixers currently used in Chinese manufacturers mostly adopt the single-arm or double-arm type box structure. During mixing, the rotary device is inside the box, taking large floor space, making installation difficult and increasing load on the ground. During material discharging after the mixing is completed, it is not easy to carry out in-place filling with the next procedure and a special lifting machine is needed to realize the filling procedure, which increases the operation space and enhance work intensity, making the costs far higher than those for column lifting mixers.

Double-column lifting hopper mixer. With small floor space, easy installation, availability of in-place filling, simplified operation procedure, reduced work intensity, enhanced work efficiency and stable performance, this machine is widely applied in such industries as medicine, chemical industry, food and health product, and its structural performance reaches the level of other products of its kind in the world.

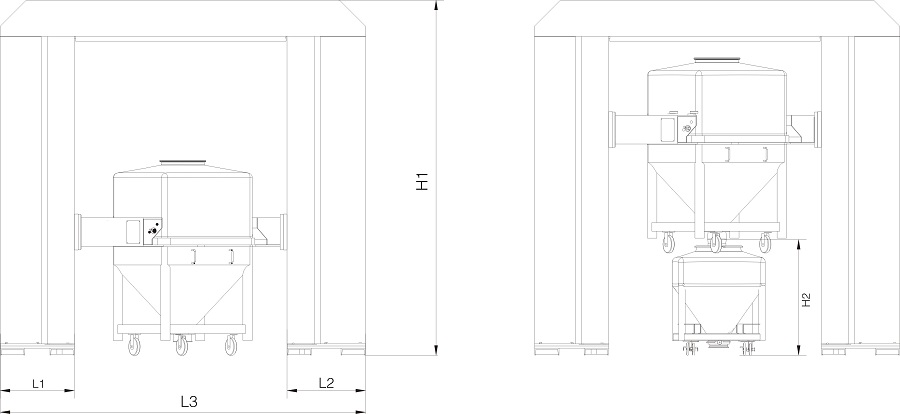

Drawing:

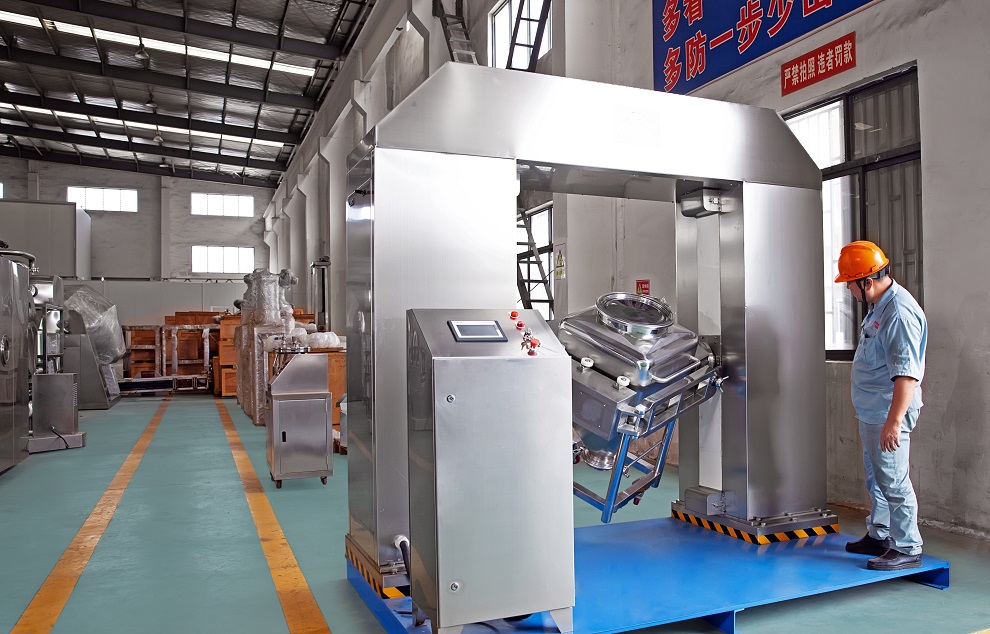

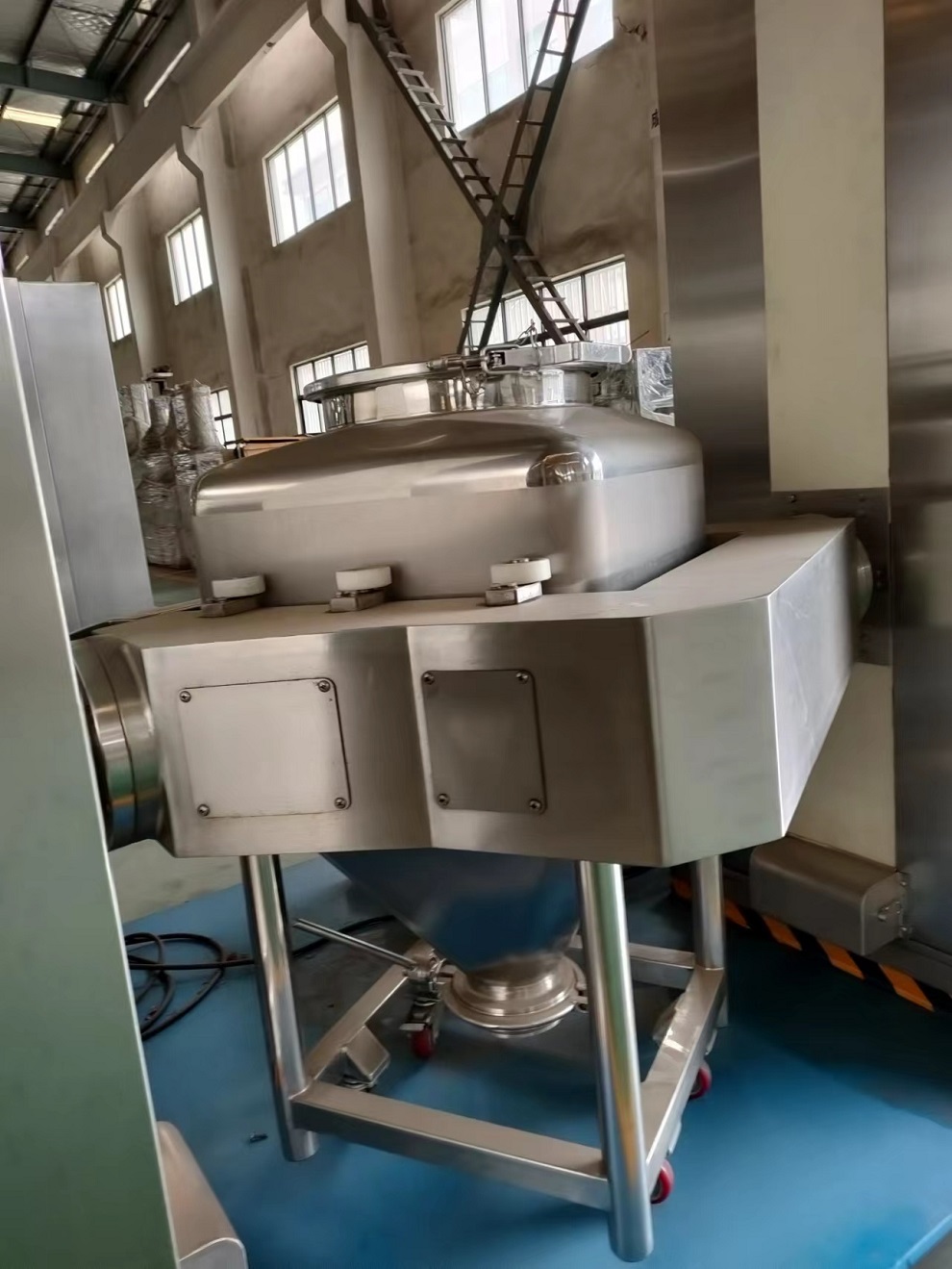

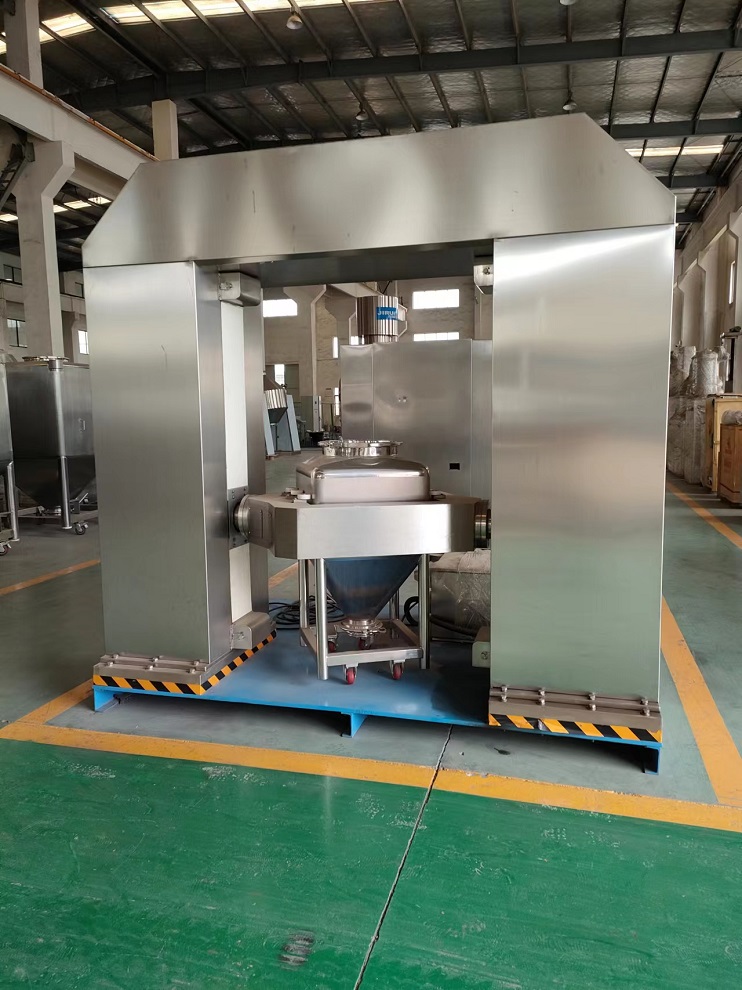

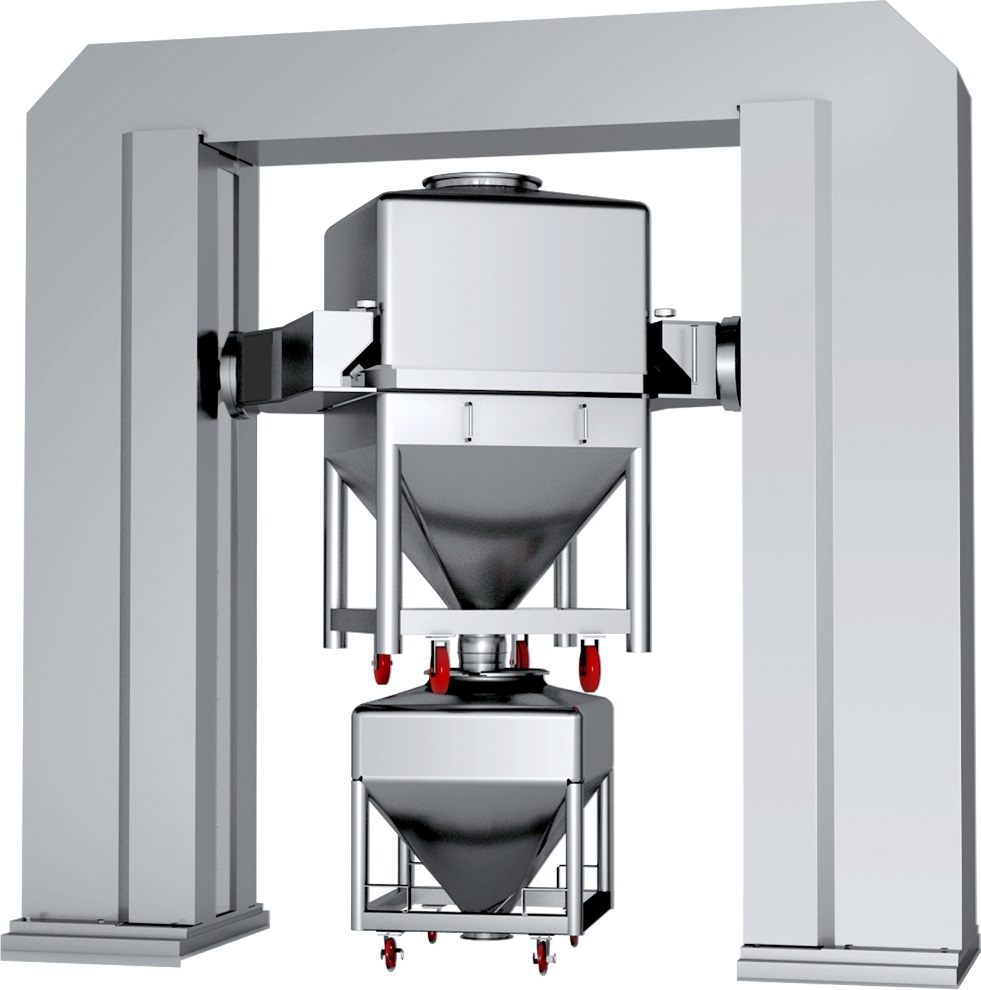

Pictures:
