SPC means stone plastic composite, also named Rigid vinyl plank, which is new environment-friendly flooring, with zero formaldehyde, mildew, moisture, fire-proof, pest control, simple installation.

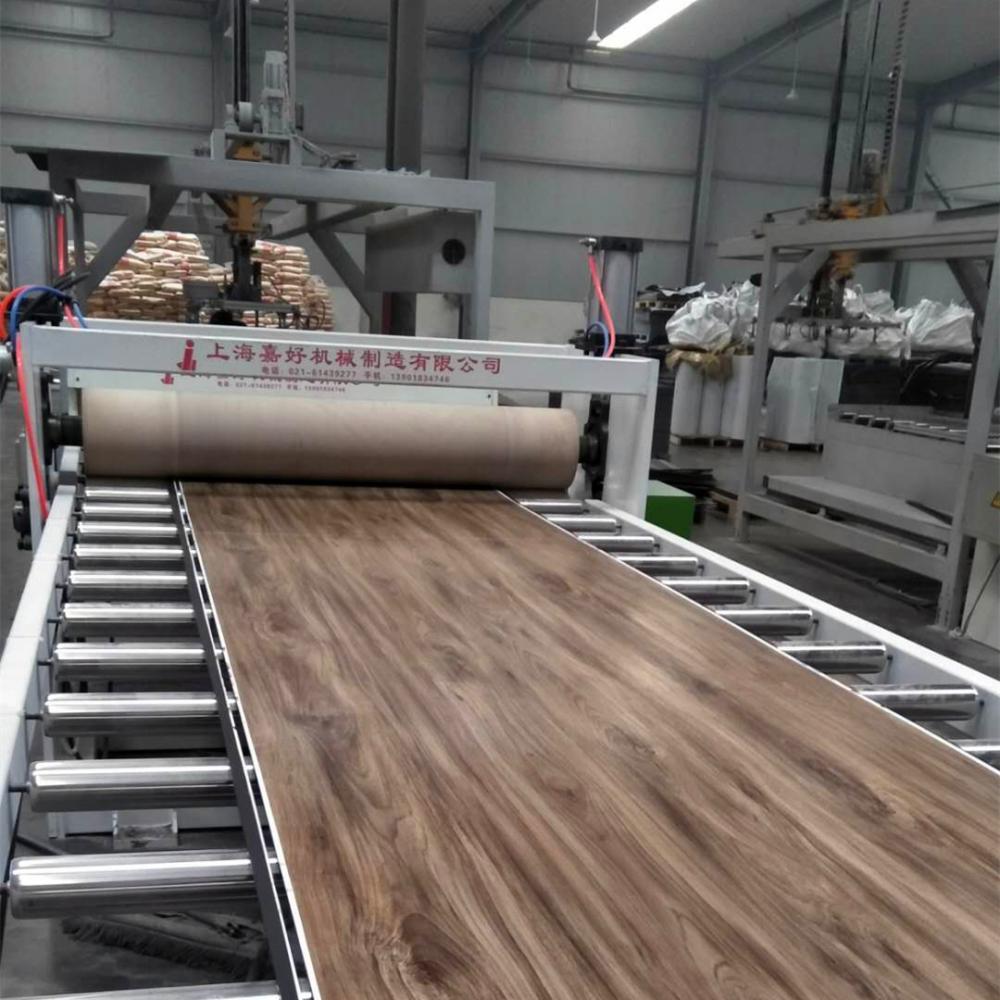

SHANGHAI JIAHAO machinery company SPC floor is extruded by extruder and T-die extrusion PVC substrate, with three-roll or four-roll calender, respectively, PVC wear layer, PVC color film and PVC substrate, one-time heating paste, embossed products , The process is simple, close by heat to complete, do not need glue.
|
Extruder model |
Motor power |
Suitable material |
Products thickness |
Products width |
Output |
|
SJSZ110/220 |
200kw |
PVC |
2-8MM |
970-1220MM |
1000-1200kg/h |
Specifications for SPC/PVC vinyl floor making extrusion machine
|
1 |
Use raw materials |
PVC plus accessories |
|
2 |
Production line speed |
0-6m / min |
|
3 |
Maximum yield |
900-1200kg / h |
|
4 |
Total installed power |
200kw |
|
5 |
Actual energy consumption |
140kw |
|
6 |
Air consumption |
0.4m3 / min |
|
7 |
Air pressure |
0.6mpa |
|
8 |
Water circulation |
0.3m3 / min |
|
9 |
Working temperature |
0-40 ° C |
