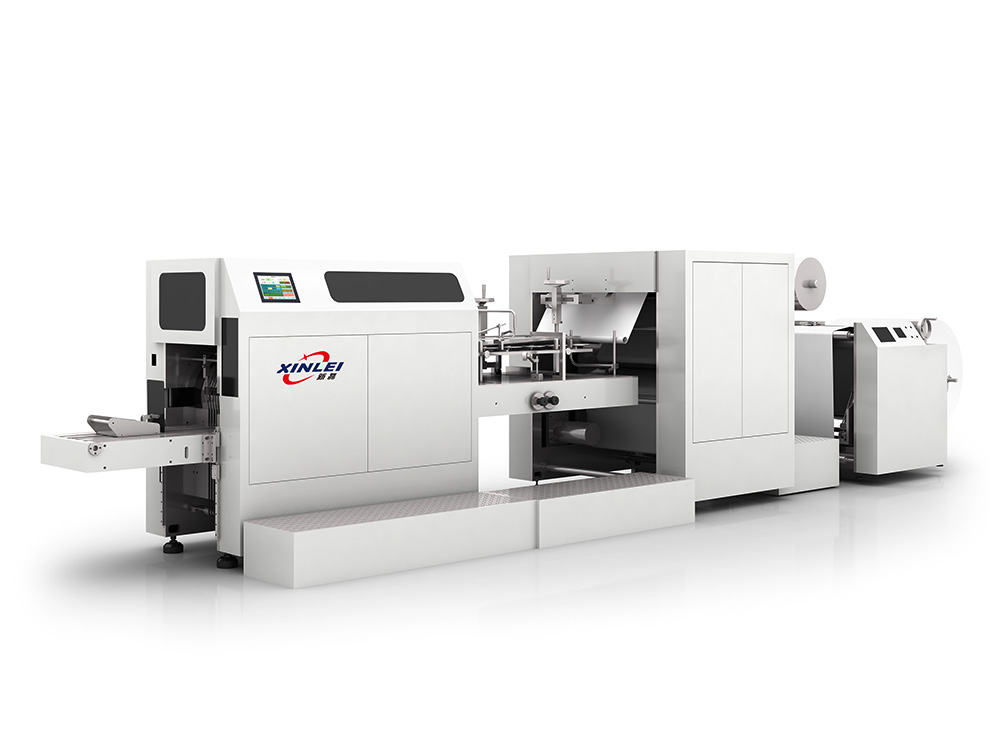

Automatic High-speed Paper Bag Machine

4 year ago
63 0
Product details


Performance and use

This machine is used for roll primary color paper or printing roll paper such as kraft paper. Paper rolls such as food paper are completed by this machine at one time. Automatic center gluing, raw material into tube, cut to length, bottom indentation, bottom folding. Glue on the bottom and shape the bottom of the bag. Finished bag finishing is completed at one time. This machine is more convenient to operate, more efficient and more stable. It is an environmentally friendly paper bag machine equipment that produces various paper bags, snack food bags, bread bags, dried fruit bags, etc.

main feature:
1. Using Willon touch screen man-machine interface, the operation function is clear at a glance, easy to control

2. Adopt the Japanese original Mitsubishi motion controller, through the integration with the optical fiber, operation stability

3. Japanese Mitsubishi servo motor with German Schick color standard eye correction, accurate tracking printing bag size

4. The raw material loading and unloading adopts hydraulic dynamic lifting structure, and the unwinding adopts automatic constant tension control.

5. The raw material correction adopts brushless servo motor to reduce the adjustment time of paper roll alignment.


 Model

XL-FD450Q

 Cutting Length

270-530mm

 Paper Bag Width

210-450mm

Bottom width

90-180mm

Paper bag thickness

80-150g/

Mechanical speed

30-220pcs/min

Paper bag speed

30-150pcs/min

Paper roll width

660-1290mm

Paper diameter

1300mm

Inner diameter of paper

76mm

Total power

380V  3phase  4line  41.5kw

Total Weight

9000kg

Overall size

14000*6000*2400mm
