Building Material Roll Forming Machine

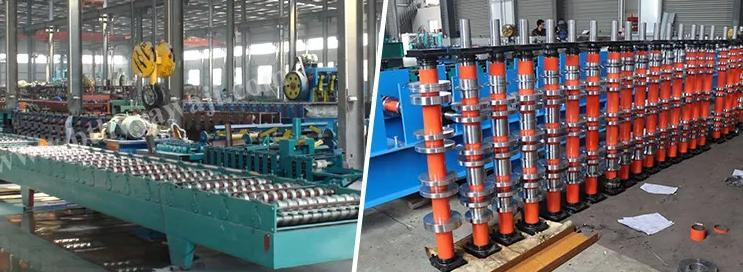

The glazed tile roof sheet making machine is equipped with a cutting system that cuts the formed material into the desired length. The control system is responsible for controlling the entire process, including the speed of the machine, the length of the cut material, and the thickness of the material.
The hydraulic system is responsible for providing the necessary pressure and force required to shape and cut the material. The machine is designed to produce high-quality glazed tiles that are durable, weather-resistant, and aesthetically pleasing. The automatic glazed tile roof sheet making machine is widely used in the construction industry for producing roofing tiles for residential and commercial buildings.
Technical details
|
Description |
1.5KW |
|
Working speed |
10-15m/min（Shear time is not included） |
|
Pressed plate thickness |
0.5-1.2mm |
|
Control mode |
Panasonic PLC |
|
Discharging rack |
2t electric discharging rack |
|
Number of molding passes |
14lanes |
|
Roll material |
Gcr15 steel is processed and quenched to HRC58-62℃, and the surface is chrome-plated |
|
Shaft material and diameter |
45# Steel finishing，Shaft diameter is￠76mm |
|
Main engine power |
5.5kw |
|
Power of hydraulic station |
3kw |
|
Hydraulic pressure |
12Mpa |
|
Scissors material |
Cr12Mov， quench HRC 58-62℃ |
|
Control panel |
Button-type switch and touch screen |
|
Length tolerance |
1.5mm |
|
Voltage |
380V, 50HZ,3 phase（According to customer requirements can be adjusted） |
|
Transmission mode |
1.0 inch single row chain |
|
Equipment form |
Card structure |
|
Equipment size |
L*W*H— 7.5m*1.3m*1.0m |
