CCT Adjustable Led Office Lighting
3 year ago
What is CCT K?
Color temperature is a unit of measurement that expresses the color components contained in light. Theoretically speaking, the black body temperature refers to the color of the absolute black body after being heated from absolute zero (-273°C). If the light emitted by a light source has the same spectral components as the light emitted by a black body at a certain temperature, it is called a certain K color temperature. For example, the color of the light emitted by 100W led lighting is the same as the color of absolute black body at 2527°C, then the color temperature of the light emitted by this led lighting is: (2527+273) K=2800K.
The color temperature calibrated by this method is exactly the opposite of what the general public thinks of "warm" and "cold". For example, people usually feel red. Orange and yellow are warmer, and white and blue are colder. In fact, red has the lowest color temperature, and then gradually increases are orange, yellow, white, and blue, and blue is the highest color temperature.
Generally, Commercial Lighting, Office Lighting, and Retail Lighting use relatively high color temperature.
Home lighting is relatively warm.
There is also batten light that can change the color temperature.

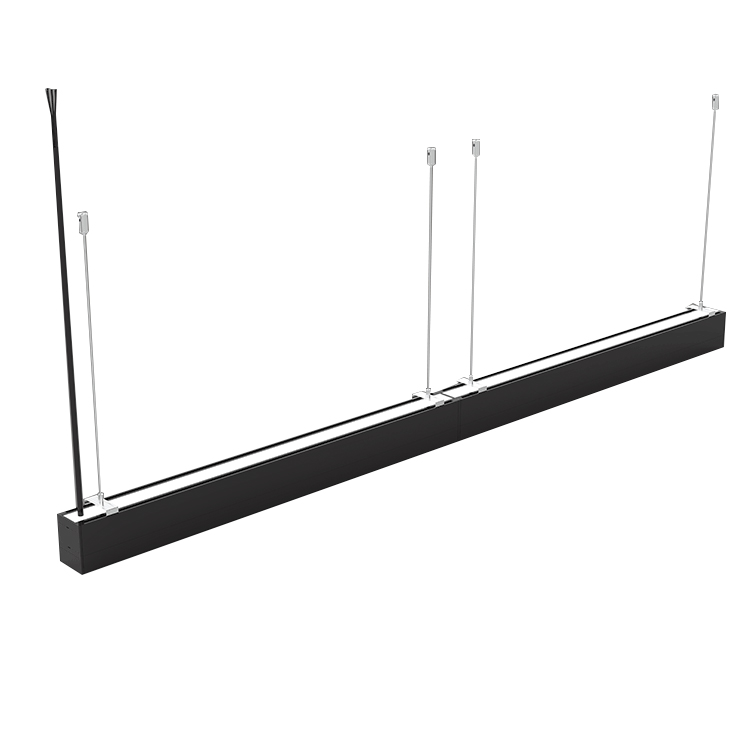

Up and Down Linear Light
This lamp can emit light on both sides, and the ratio of light up and down is 3:7. The light-emitting angle of the upper is 120°, and the lower light-emitting surface has two angles to choose from: 120° and 180°.

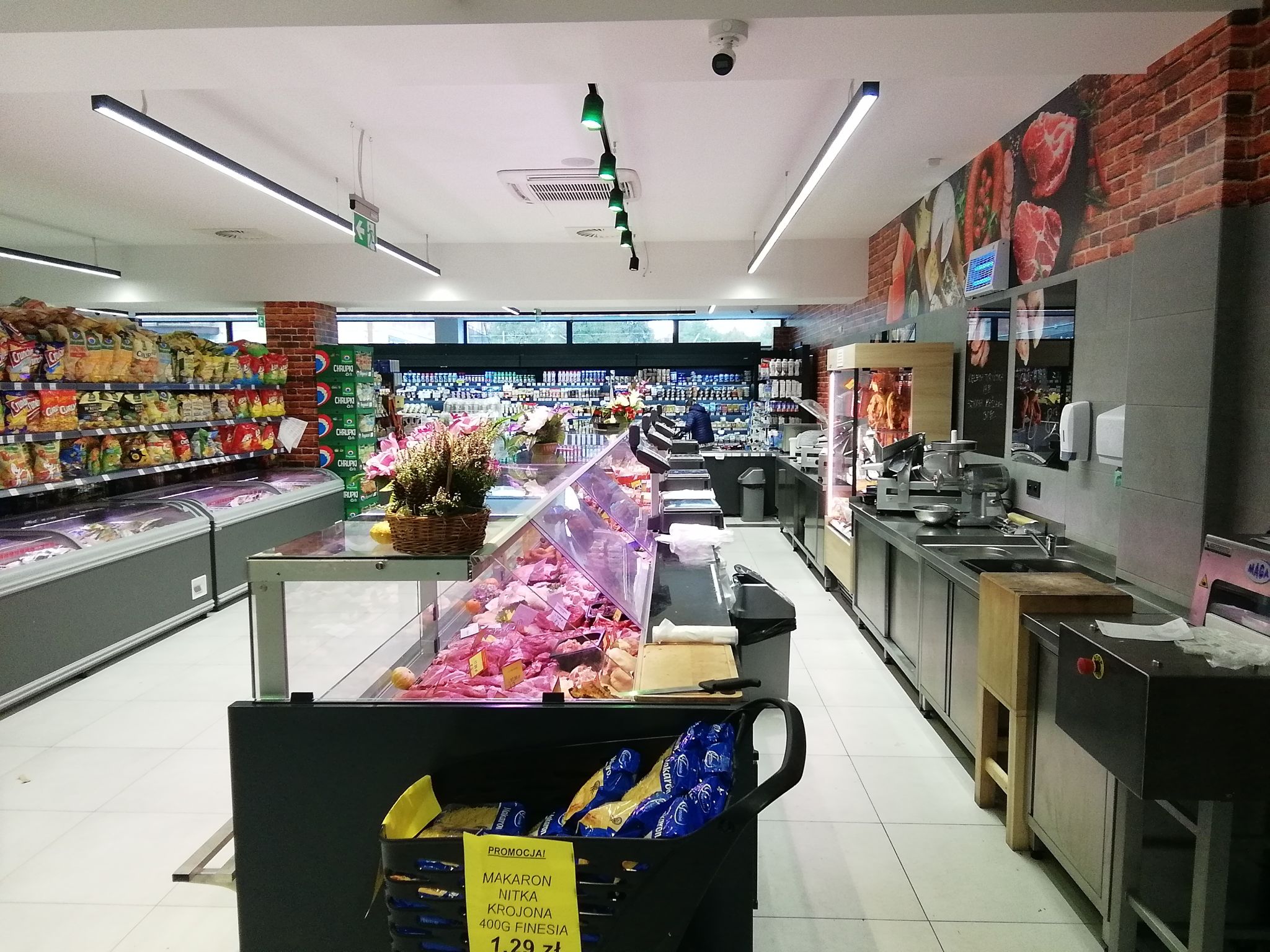

The up and down lighting design is to make your ceiling no longer lonely, no longer dark.
Create a good atmosphere for shops, offices, parking lots, shopping malls and other places.
Our lights can be seamlessly spliced. It can realize that there is no dark area when lighting, and the light is very uniform.
The body of this series of linear lights can be opened. It is very convenient when you install lamps in series. Another advantage is that the shell can be reused. After 8 years, the Light can be replaced without replacing the shell, only the power supply and light source need to be replaced. More environmentally friendly.
Our products will not be easily blown by the wind when they are hoisted, they are very texture and weighty.
There are DALI dimming and 0/1-10V dimming to choose from.
Code No.
Beam angle
Size
Dimming Type
Power
Lumen
LH-LIAO2-020
180°
600*63*80mm
No/DALI/0-10V
20W(6W+14W)
100-120lm/w
LH-LIAO3-030
180°
900*63*80mm
No/DALI/0-10V
30W(9W+21W)
100-120lm/w
LH-LIAO4-040
180°
1200*63*80mm
No/DALI/0-10V
40W(12W+28W)
100-120lm/w
LH-LIAO5-060
180°
1500*63*80mm
No/DALI/0-10V
60W(18W+42W)
100-120lm/w
LH-LIAO6-080
180°
1800*63*80mm
No/DALI/0-10V
80W(24W+56W)
100-120lm/w
LH-LIAO8-100
180°
2400*63*80mm
No/DALI/0-10V
100W(30W+70W)
100-120lm/w
LH-LIAD2-020
120°
600*63*80mm
No/DALI/0-10V
20W(6W+14W)
100-120lm/w
LH-LIAD3-030
120°
900*63*80mm
No/DALI/0-10V
30W(9W+21W)
100-120lm/w
LH-LIAD4-040
120°
1200*63*80mm
No/DALI/0-10V
40W(12W+28W)
100-120lm/w
LH-LIAD5-060
120°
1500*63*80mm
No/DALI/0-10V
60W(18W+42W)
100-120lm/w
LH-LIAD6-080
120°
1800*63*80mm
No/DALI/0-10V
80W(24W+56W)
100-120lm/w
LH-LIAD8-100
120°
2400*63*80mm
No/DALI/0-10V
100W(30W+70W)
100-120lm/w
