P2.6 Led screen
3 year ago
P2.6 Indoor/Outdoor 500x500mm&500x1000mm Die casting aluminum LED Display
1. Multiple installation methods: multi-purpose, can be installed in front of the wall, hanging installation and floor-mounted.

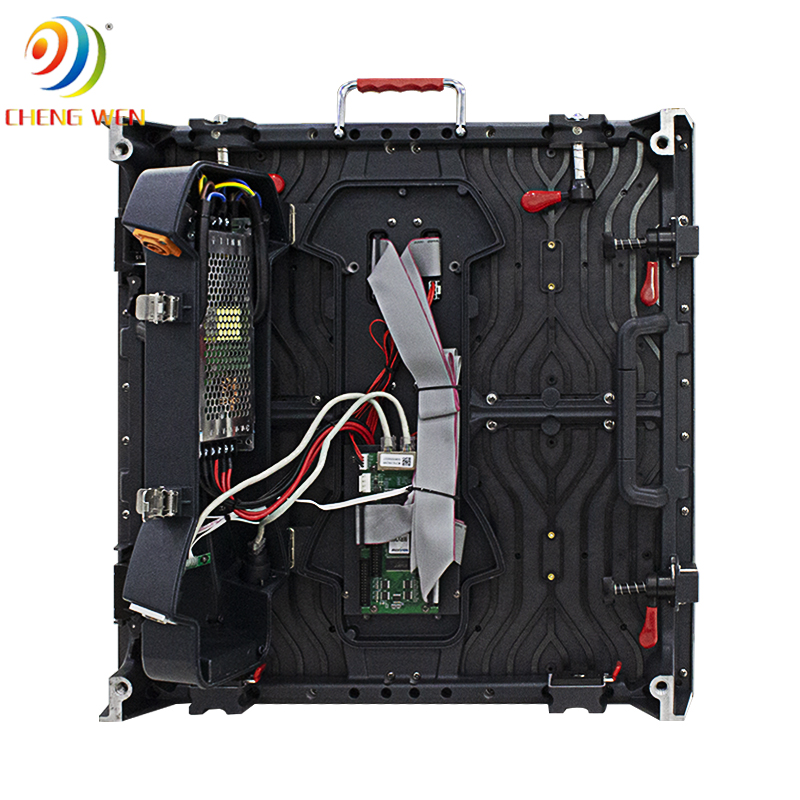

2. Real front maintenance: the power box and module are designed for full front maintenance, without maintenance space, and can be quickly assembled and disassembled.
3. Curved lock design: the optional curved lock cabinet can be spliced with a curve from -15º to +15° to meet the multi-level needs of the customers.
4. Robust and durable: Anti-collision design at the bottom of the cabinet and corner protection design around, meticulous care for the safety of each LED.
5. It is suitable for indoor and outdoor signage of shops, shopping malls, squares, urban roads, highways, exhibition halls, theaters, stages, etc.
Our company have 13 years experience of led display and stage lights, our company mainly produce Indoor Rental Led Display, Outdoor Rental Led Display, Transparent LED Display,Indoor Fixed Indoor LED Display, Outdoor Fixed LED Display, Poster LED Display, Dance Led Display... In additional, we also produce stage lights, such as beam lights Series, moving head lights Series, LED Par Light Series and son on...
Product Paramenter:
|
Model |
P2.6 |
|
Module size(mm) |
250x250 |
|
Module resolution (dot) |
96x96 |
|
Scanning |
1/16S |
|
SMD |
1R1G1B |
|
Maintenance |
Front/Back |
|
Installation |
Hanging/streching |
|
Cabinet size(mm) |
500x500 |
|
Density(dot/m²) |
147456 |
|
Brightness(cd/m²) |
2000 |
|
Max. Power Consumption（w） |
350 |
|
Cabinet Size(mm) |
500x500/500x1000 |
|
Cabinet weight (kg) |
7kg |
|
Cabinet material |
Die-casting aluminum |
|
IP rate |
IP31/IP65 |
|
Grayscale |
10000:1 |
|
Refresh rate(hz) |
1920-3840 |
|
Frame change frequency |
50/60hz |
|
Horizontal viewing angle |
>140° |
|
Vertical viewing angle |
>140° |
|
Best viewing distance |
>4m |
|
Input Voltage |
AC110V - AC220V |
|
Module Max. current |
6.0-7.5 |
|
Temperature-operating |
﹣10℃～60℃ |
|
Humidity-operating |
10%～90% |
|
Life span (H) |
≥100,000 |
|
MTBF (H) |
>10,000 |
Detail Image：
Application:
