Product details

Good Current Transformer Iron Core

       Useful Nano-crystalline current tansformer iron cores have high permeability and low cost which is ideal material for current transformer at present.It is suitable for the development trend of small, light and efficient components in the field of power electronics and electronic information.So it can be widely used in precision current transformer, zero sequence current transformer, medium and high frequency transformer and other electrical equipment.

Performance of high quality CT core

Item
Performance
Item
Performance
Magnetic saturation induction intensity Bs(T)
1.25 Saturation magnetostriction coefficient(λs)
0.000002
Curie temperature Tc(℃)
550
Density ρ(g/cm3)
7.2
Crystallization temperature Tx(℃)
700 Resistivity δ(μΩ▪cm)
130
Hardness Hv
880 Thickness(μm)
28-35
Initial permeability(μ0)
>120000
Stacking factor
≥0.75

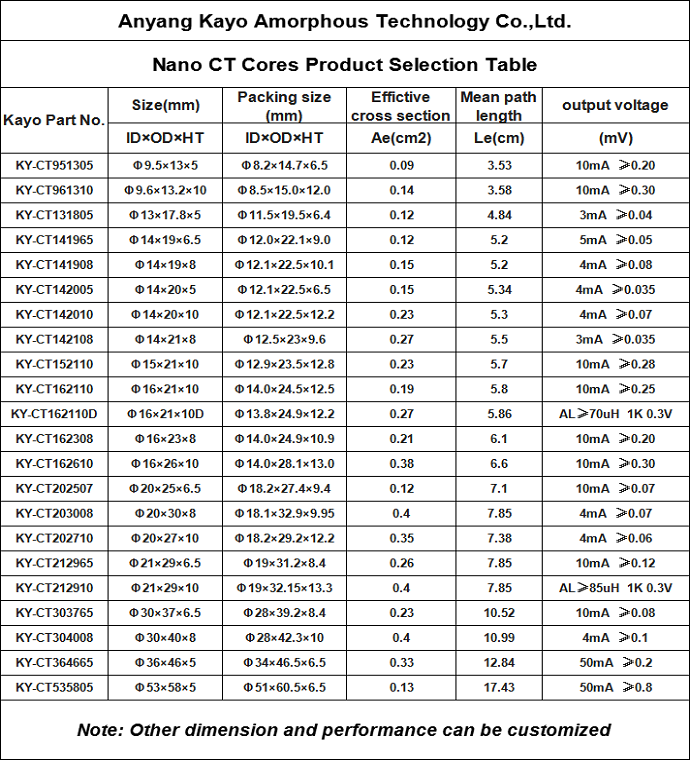

Specification of hot selling CT core

Nano Ct Cores


Curren Transformer Core 7Curren Transformer Core 6Curren Transformer Core 5

FAQ

1.Q: What information do I need to supply when I have an inquiry?
A: If you have any inquiry, please supply the following items,such as the type, dimensions, sizes, quantities and so on.

2.Q: How long does it take to prepare the sample ?
A: It takes 1-3days to prepare the sample.

3.Q: What about the delivery time of our products?
A: If we have stock,it will take 3-10days. If you need your designs,, we will produce it as soon as possible.


4.Q: What is your MOQ?
A: All orders are aceptable acording to the different size and design.

5.Q: How to pay you?
A: We can acceot the T/T, PayPal, L/C,D/A,D/P and so on.
Different areas may exist some differences.

6.Q: If I have any questions, where can I get the answer?
A: Please feel free to contact us any time.

7.Q:Why do we choose you?
A:(1) Our products are well known in domestic and overseas markets .
(2) Above 8 years export experience make us know how to satisfy you.
(3) Delivery on time
