Product Introduction

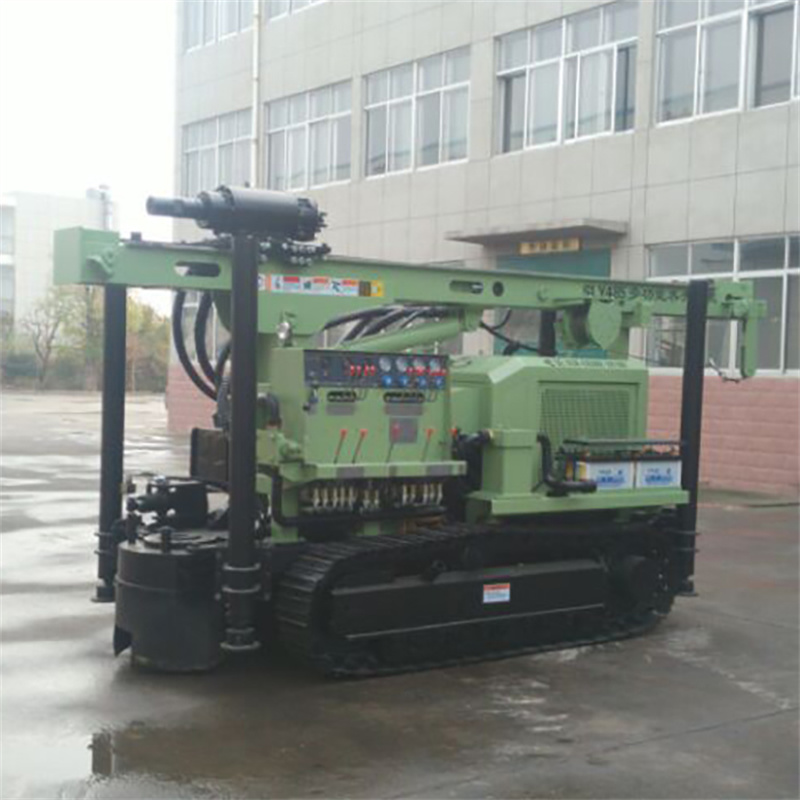

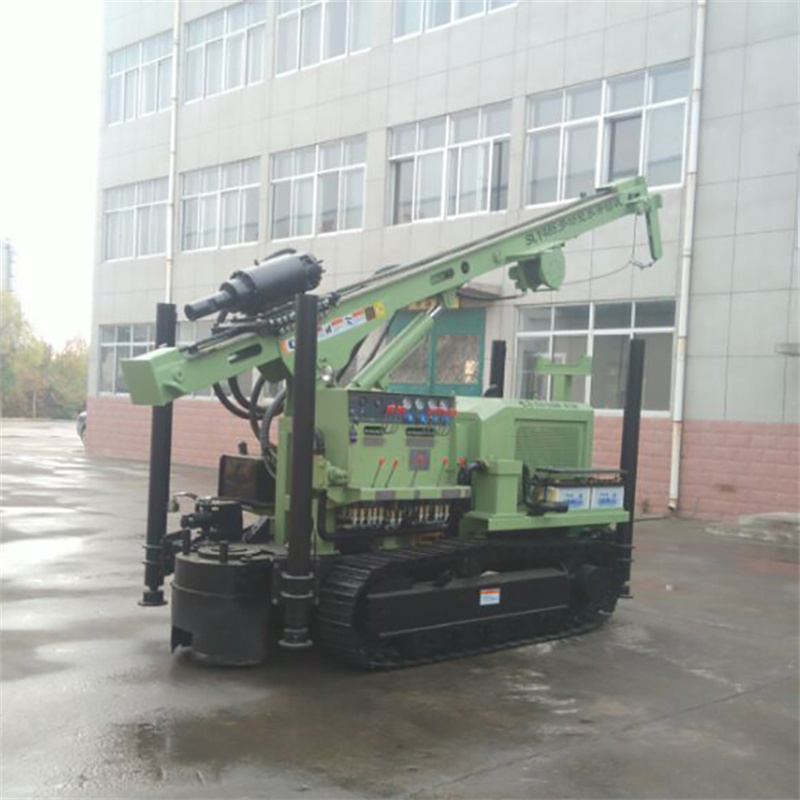

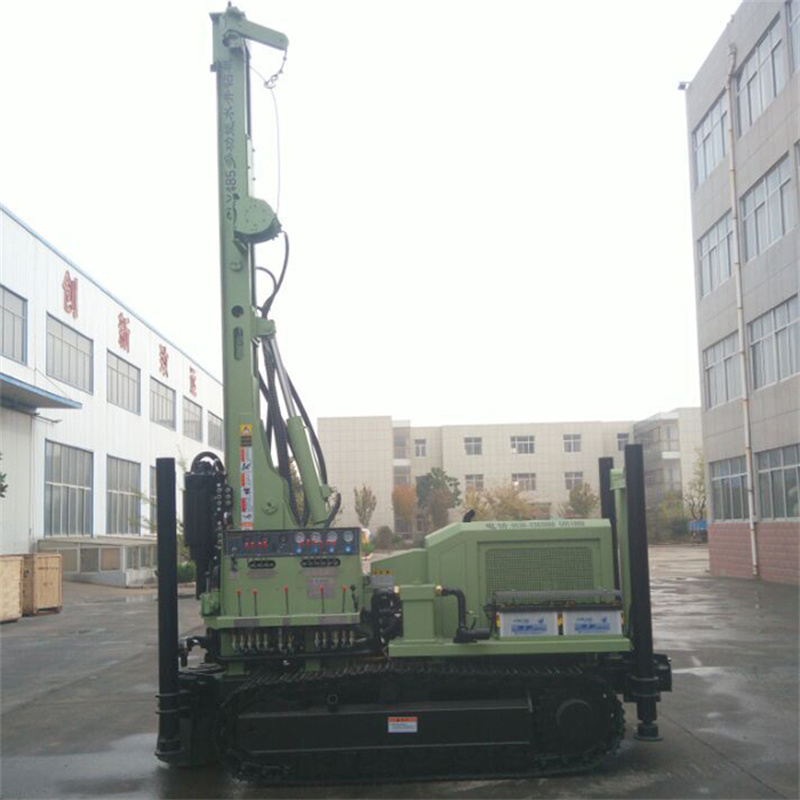

SLY485 water well drilling rig
SLY485 multi-function crawler water well drilling rig is lightweight, efficient, multi-purpose drilling equipment, which can use air,foam,or mud rotary for percussive drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular, in drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling, rock formation drilling and a variety of engineering requirements.
Technical parameters
|
Bore diameter(mm) |
115-300 |
|
Bore depth(m) |
200 |
|
Walk speed(km/h) |
0-2.5 |
|
For rock(F) |
6-20 |
|
Air pressure(Mpa) |
1.05-3.0 |
|
Air consumption(m³/min) |
16-30 |
|
Once promotion(mm) |
3000 |
|
Skid max angle(°) |
90 |
|
Maximum height from the ground(mm) |
320 |
|
Rotation Speed(r/min) |
0-100 |
|
Rotation torque(NM) |
3900 |
|
Lifting power(T) |
8 |
|
Climb ability(°) |
25 |
|
Dimension（L*W*H)(mm) |
4900*1600*2400 |
|
weight(Kg) |
5700 |

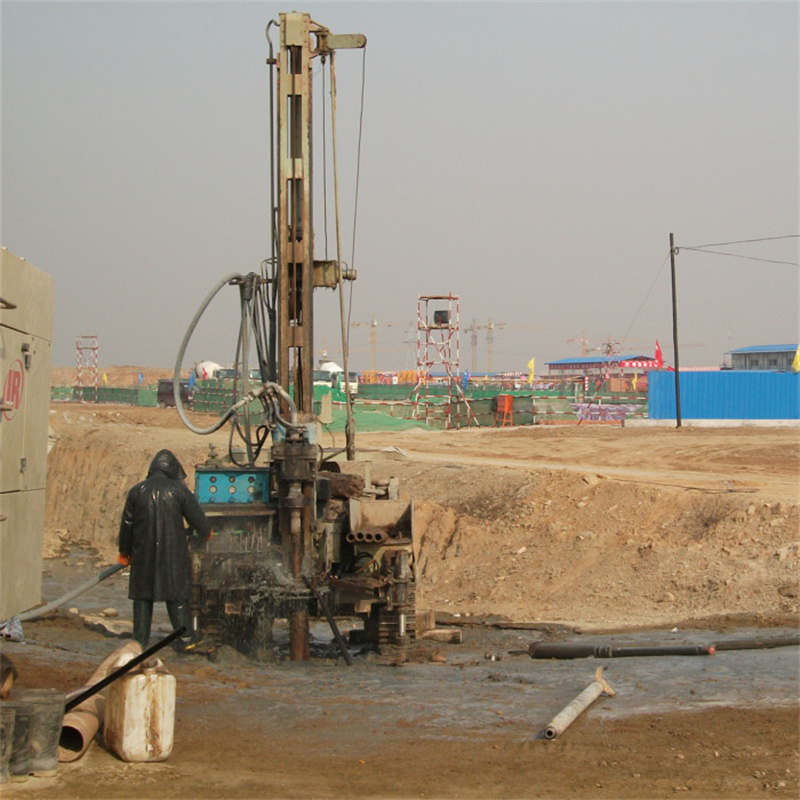

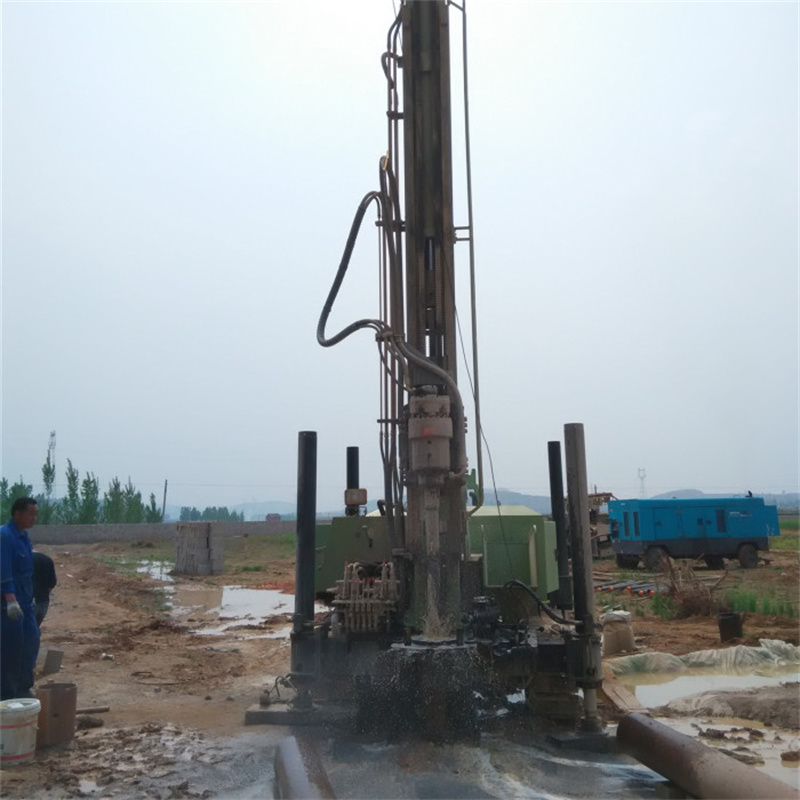

Product Application
Company Profile
FAQ
Q1: What’s your delivery time?
A: 15 days to produce, within 3 days if in stock.
Q2: What’s methods of payments are accepted?
A: We agree T/T ,L/C , West Union ,Money Gram ,Paypal.
Q3: What about the shipments and package?
A: 40' container for 2 sets, 20' container for 1 set,
Machine in nude packing, spare parts in standard export wooden box.
Q4: Have you got any certificate?
A:We have got ISO,CE certificate.
Q5: How to control the quality?
A: We will control the quality by ISO and CE requests.
Q6: Do you have after-sale service and warranty service ?
A: Yes, we have.We can supply instruction for operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.
Warranty is one year for the machine.
Q7: Can I trust your company ?
A: Our company has been certificated by Chinese government,and verified by SGS Inspection Company.Just order from US !
