COD NH4-N Multi-parameter Controller Show

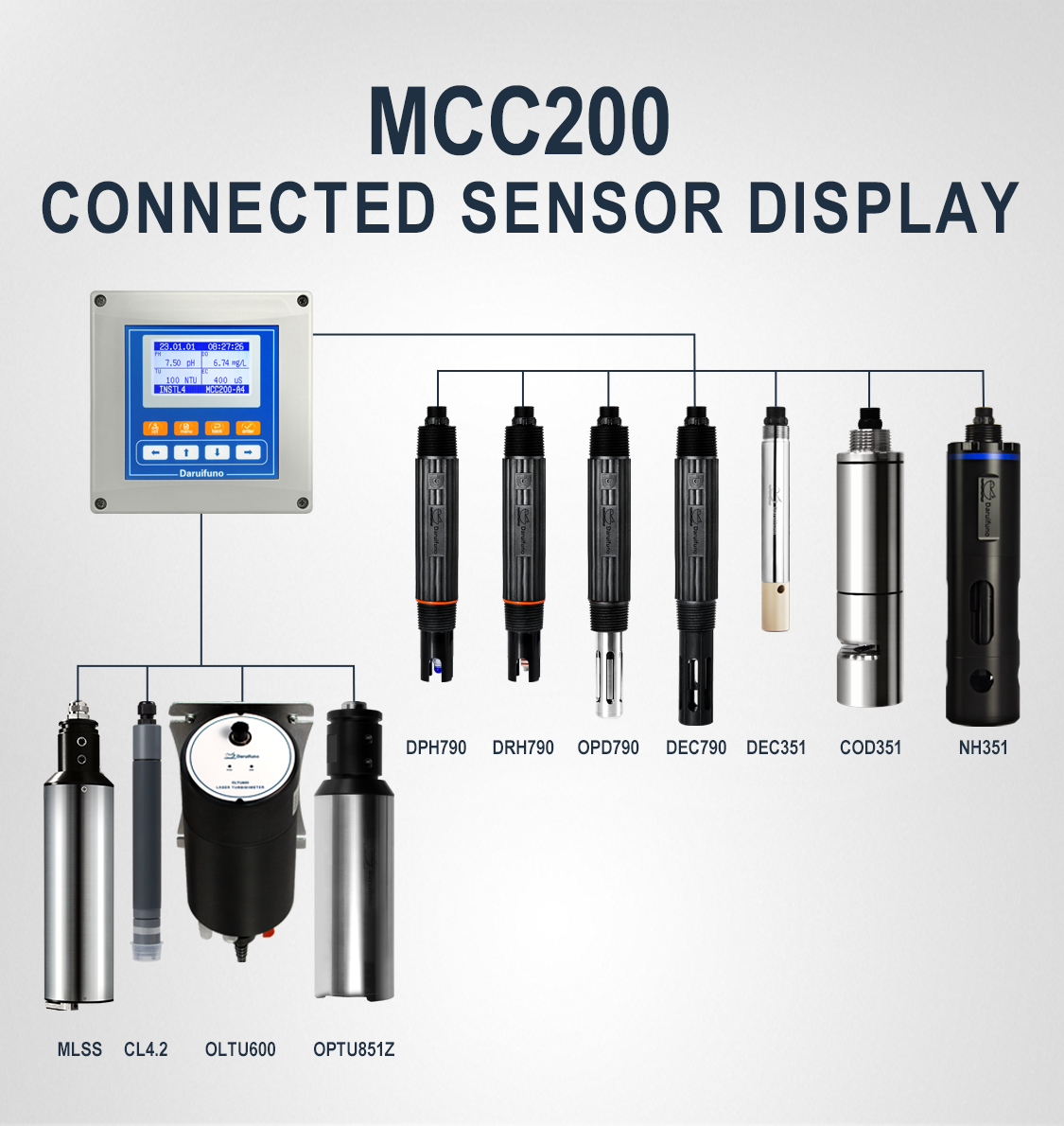

3 year agoParameters commonly measured in surface water monitoring include water temperature, pH, dissolved oxygen, conductivity, turbidity, chemical oxygen demand (COD), ammonia nitrogen, total phosphorus, total nitrogen, heavy metals, etc. The measurement of these parameters can help us understand the water quality status of the water body, timely detect water quality problems, take effective measures for treatment and protection, and ensure human health and ecological environment. Delfino's MCC200 multi-parameter water quality meter can be connected to multiple digital electrodes at the same time to realize simultaneous monitoring of different parameters of water quality, convenient data output, no need to use single-parameter instruments, saving space and manpower.
Features
The MCC200 multi-parameter water quality analyzer has a RS485 interface and the communication protocol is Modbus RTU. The water tester has a wash relay for control the cleaning of the sensors with brush.
The dimension of the controller is 144*144*120mm, support wall mount, pipe clamping, panel.
Specification
Product Name | Multi-parameter Water Quality Meter |
Product Model | MCC200 |
Brand Name | Daruifuno |
Channels | 1~8 channels input |
Detection Object | pH,Temp, conductivity, TDS, salinity, dissolved oxygen, turbidity, chlorine, ORP |
pH Sensor | principle: glass electrode method |
range: 0~14pH, 0~50℃ | |
accuracy: 0.01pH | |
Conductivity Sensor | principle: 2-electrode or 4-electrode |
range: 0~10mS/cm automatic switching, 0~50℃ | |
accuracy: 1% of the measuring range | |
Dissolved Oxygen Sensor | principle: fluorescence method |
range: 0~20mg/L, 0~50℃ | |
accuracy: ±0.1mg/L | |
Turbidity Sensor | principle: infrared 850nm 90° scattered light method |
range: 0~1000NTU, 0~4000NTU | |
accuracy: <±1% of the measuring range | |
Configuration Information | Power failure protection, indefinite retention of parameters |
Language | English |
Temperature Compensation | Automatic or manual |
Operating Temperature | 0~60℃ RH<95% |
Storage Temperature | -20~70℃ RH<55% |
Relay Output | Wash control, max. Load 3A/250V AC |
Communication Method | RS485 interface |
Communication Protocol | Modbus RTU, support JSON text |
Time/Data Logging | Accurate to the second, record 7800 historical data, support data download |
Recording interval can be set between 1 and 999 minutes | |
Display | 3.2 inch 128*64 LCD screen |
Protection Grade | IP66 |
Material | Enhanced ABS |
Dimensions | 144*144*120mm |
Mounting | wall mounting, pipe clamp, panel mounting (open hole size 138*138mm) |
Power Supply | AC: 100~240V, 50/60Hz or 18~36V DC |
Power Consumption | <24W |
Weight | 1600g |
Why we have to measure the surfacewater parameter?
First of all, water temperature is one of the important parameters for surface water monitoring. Changes in water temperature affect the growth and reproduction of aquatic organisms, which in turn affects the balance of aquatic ecosystems. Secondly, pH value is an important indicator reflecting the pH of water, which has an impact on the chemical reaction in aquatic organisms and water. Dissolved oxygen is a living substance in water, which affects the growth and reproduction of aquatic organisms, and is also an important indicator to judge the degree of oxygen enrichment in water. Conductivity is an indicator to measure the content of ions in water, which can reflect the salinity, hardness and other conditions of the water body. Turbidity is an indicator that reflects the content of suspended solids in water, which can reflect the clarity of water quality. COD, ammonia nitrogen, total phosphorus, total nitrogen and other parameters reflect the content of pollutants such as organic matter and nutrients in the water body, which have an impact on the ecological environment and human health of the water body. Heavy metals are a class of harmful substances in water bodies, and their excessive content will cause harm to aquatic organisms and human health.
Suzhou delfino environmental technology company focuses on online water quality analyzers, such as PH/ORP analyzer, Conductivity Analyzer, Turbidity Analyzer, Cod Analyzer, Dissolved Oxygen Analyzer, etc..If you are interested in the pil in Water Analyzer, please contact us.
