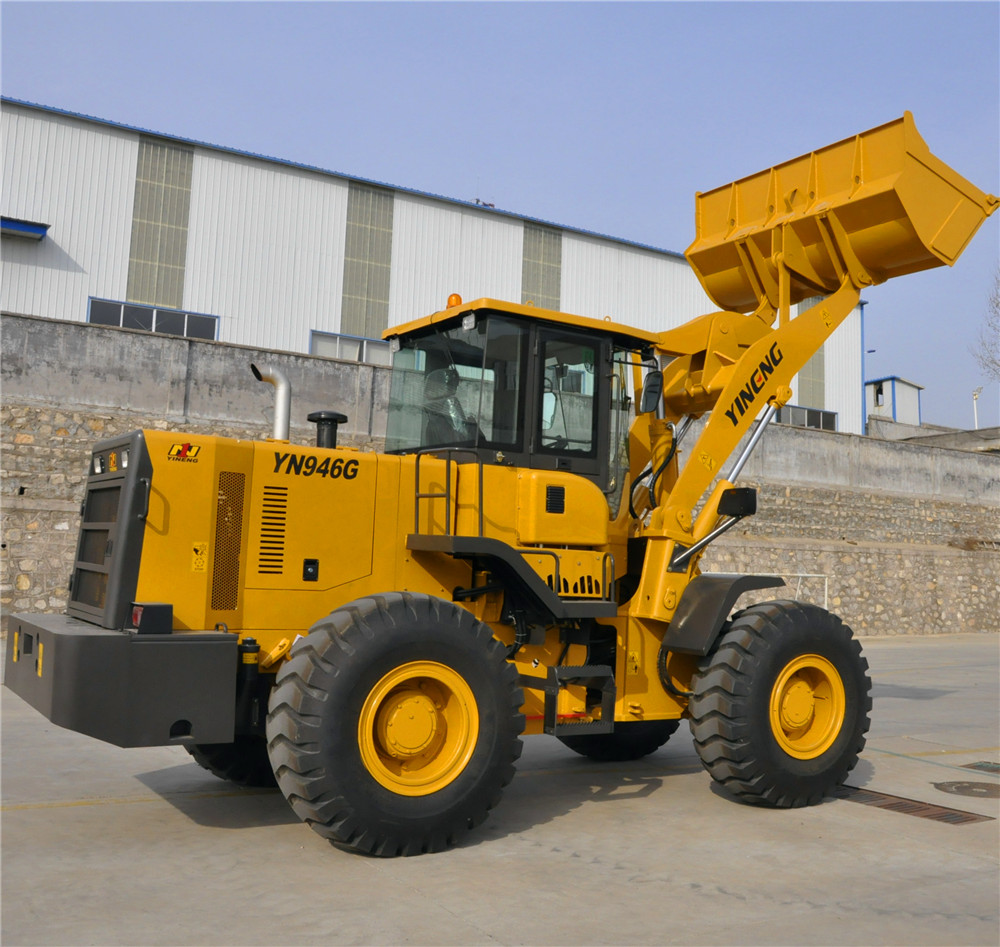

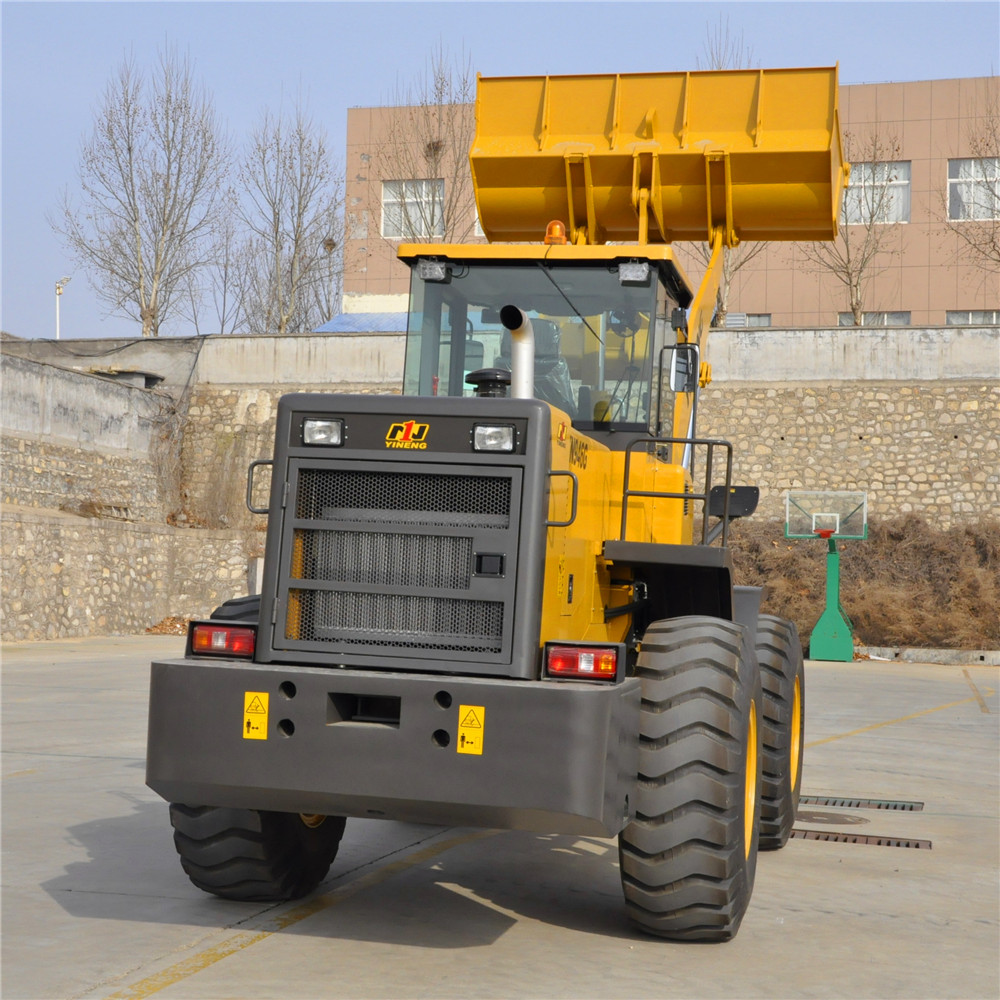

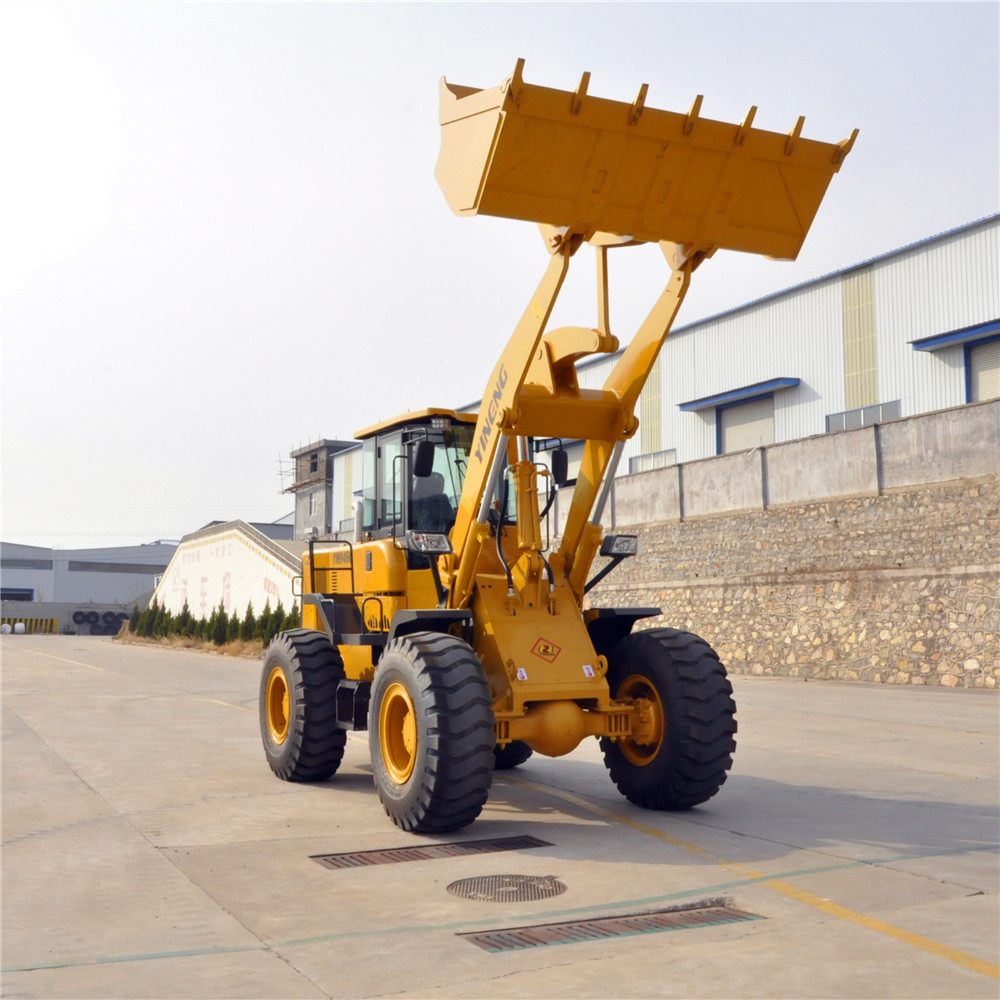

YN946G wheel loader.mp4
4 year ago
The Yineng Wheel Loader offers significant fuel savings while lowering long-term costs. wheel loaders meet emission standards and are designed to improve fuel economy without interrupting performance. The reliability, durability, and versatility result in machines that are better built to meet your needs.
Technical Specifications:
|
Performance
|
1 |
Rated load |
4000kg |
|||
|
2 |
Overall weigh |
13200kg |
||||
|
3 |
Rated capacity |
2.35m3 |
||||
|
4 |
Max. Tractive force |
100KN |
||||
|
5 |
Max. Breakout force |
≥ 120KN |
||||
|
6 |
Max. Grade ability |
30° |
||||
|
7 |
Dumping height |
3176mm |
||||
|
8 |
Max. Dumping reach |
1095mm |
||||
|
9 |
Overall dimension |
7670×2680×3375mm |
||||
|
10 |
Min. Turning radius |
6052mm (tyre outside) |
||||
|
Engine
|
11 |
Model |
Weichai Deutz engine WP6G175E22 |
|||
|
12 |
Type |
Turbo charged, water cold |
||||
|
13 |
No. of cylinder-bore/stoke |
6-102x120mm |
||||
|
14 |
Rated power |
129kw- 2200 r/min |
||||
|
15 |
Max. torque |
750N.m |
||||
|
16 |
Min. Fuel-consume ratio |
≤ 212 g/kw.h |
||||
|
Transmission
|
||||||
|
18 |
Gear shift |
2 forward, 1 reverse. Mechanical control gear shift
|
||||
|
19 |
Max. speed |
35km/h |
||||
|
Axle
|
20 |
Type of main reducer |
Spiral bevel gear |
|||
|
21 |
Gear ratio of main reducer |
5.286 |
||||
|
22 |
Type of final reducer |
Planetary Reduction |
||||
|
23 |
Gear ratio of final reducer |
4.26 |
||||
|
24 |
Total ratios |
22.52 |
||||
|
25 |
Wheel base |
3067 mm |
||||
|
26 |
Wheel tread |
1860mm |
||||
|
27 |
Min. ground clearance |
460mm |
||||
|
Hydraulic system
|
28 |
System working pressure |
18 MPa |
|||
|
29 |
Boom lifting time |
5.5+ 0.2 s |
||||
|
30 |
Total time |
9.8+ 0.2 s |
||||
|
31 |
Fuel tank capacity |
150L |
||||
|
32 |
Leveling automatically |
|
||||
|
Break system
|
33 |
Service brake |
Air over hydraulic disc brake on 4 wheels |
|||
|
34 |
Parking brake |
Air break control |
||||
|
Tyre
|
35 |
Type |
20.5-25 16PR |
|||
|
36 |
Front tyre pressure |
0.35Mpa |
||||
|
37 |
Rear tyre pressure |
0.3Mpa |
||||
Company Profile
Founded in 1999, Shandong Yineng Heavy Industry Co., Ltd is a large-scale construction and agricultural equipment manufacturing enterprise integrating R&D, production and sales. The company has more than 400 employees, 8 senior engineers and 12 professional technicians. The products cover wheel loaders, underground mining machine, grass grabber, off-road forklift and etc, with 7 series, more than 100 models and equipment in total. Yineng has passed the ISO9001:2000 international quality management system certification and assessment of State Engineering Machinery Quality Supervision & Testing Center.
The company has been invited to participate in large-scale international exhibitions such as the Canton Fair, the Hanover Agricultural Machinery Exhibition in Germany, and the Bauma Fair for more than ten years. With first-class technical standards, top-notch manufacturing processes and personalized customization services, Yineng has established a broad customer network around the world, with customers all over Germany, Russia, Brazil, Saudi Arabia, Australia, Thailand, South Africa, etc. More than 40 Many countries and regions.
