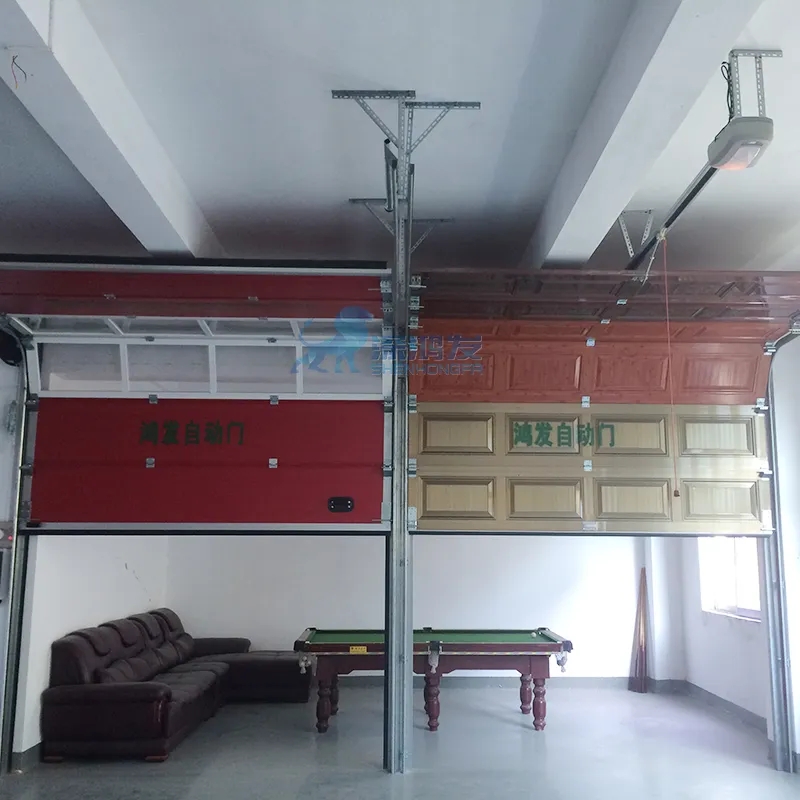

industrial overhead door

1. Overview

1.1 Industrial Lifting door is by means of spring balancing device; Using a low-power drive system, door fans connected by High speed residential garage door panels are raised along the guide rail to open the door.

1.2 Industrial  Lifting doors are divided into four types according to door panel materials:

Serial number    Type name   Code name     Application characteristics

1 Steel plate sliding door  SM1      Good durability and economy

2 Aluminum plate type sliding door   SM2     Light operation

3 Transparent sliding door   SM3     The panel is transparent and bright

4 Insulated sliding door    SM4      Heat preservation and energy saving

1.3 Sliding door panel material and thickness:

Serial number Type name

Door material  Transparent window material

1 Steel plate sliding door    Color coated steel plate (0.5)Acrylic resin plate (3)

2 Aluminum plate type sliding door   Color coated aluminum plate (0.6)   Acrylic resin plate (3)

3 Transparent sliding door   Aluminum alloy composite plate (3)    Polycarbonate sheet (5)

4 Insulated sliding door    Color coated steel plate (0.5) rigid polyurethane foam plastics

Double glazing (4-6-4)

1.4 Various types of sliding doors can be divided into four forms according to the installation method:

1.4.1 Standard type (A) : It is the basic intake mode of sliding door.

1.4.2 High head type (B) : The intake mode of reducing the depth of horizontal track using ceiling space is suitable for the upper space of the door opening and the direction of indoor depth

When there is an obstacle.
