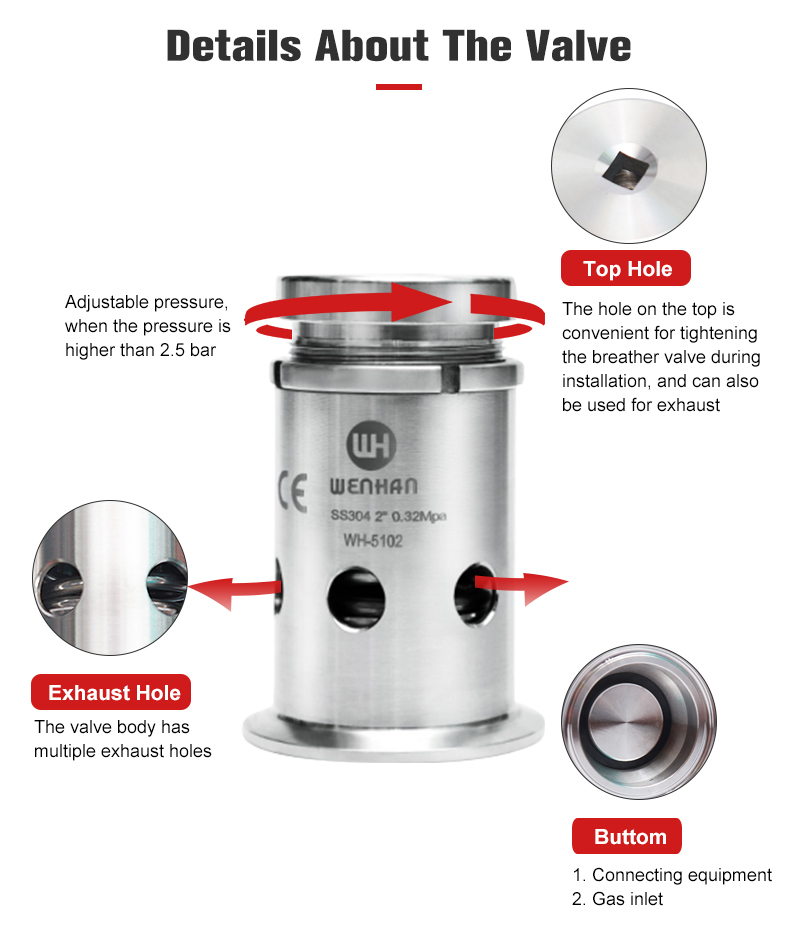

Safety Breathing valve (PVRV) Spring pressure for steam and gas This product is used in pressure vessels and piping systems to protect vessels from excessive pressure explosion protection, high sensitivity and high pressure accuracy.
Link mode Quick installation interface 1 "1.5" 2 "2.5" 3.5 ", etc.

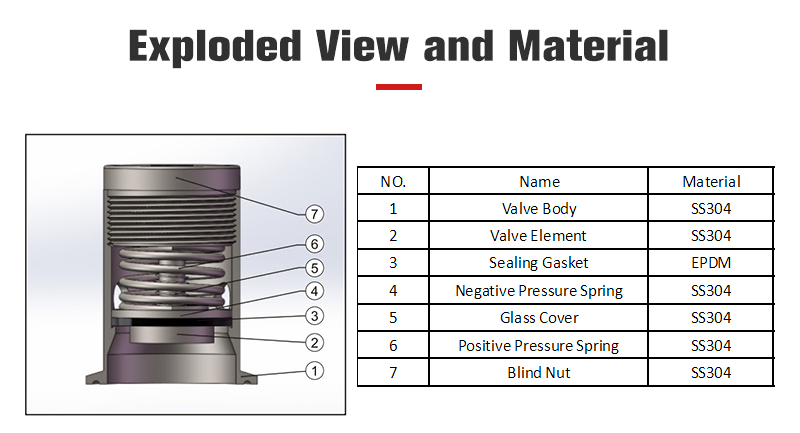

Other parts such as the beer tank body are made of stainless steel 304, other sealing ring materials EPDM, hygienic design, pressure is 0.02bar 0.05bar 1bar 1.5bar 2bar 2.5bar 3bar 3.5bar and so on.
And our company also have center valve, fitting and pipes, cleaning ball, ball valve and so on.
|

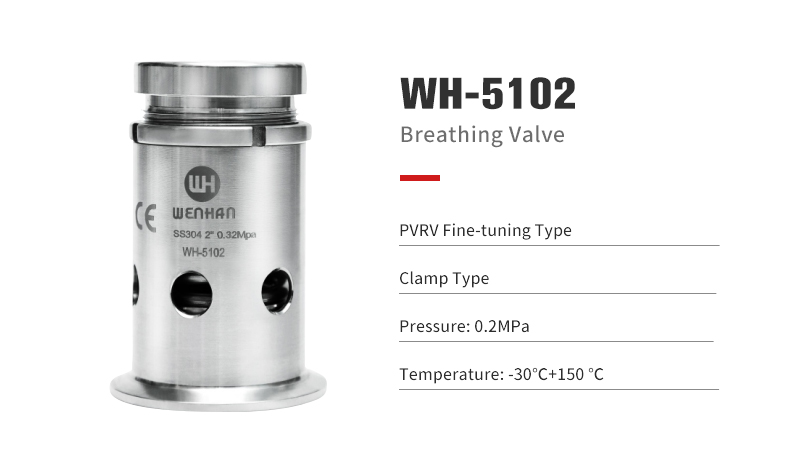

Product Name
|
Fine Tuning Breathing Valve
|
|
Model No.
|
WH-5102
|
|
Power
|
Manual
|
|
Media
|
Gas
|
|
Standard
|
DIN ISO SMS DS
|
|
Material
|
SS304 / SS316L
|
|
Seal
|
EPDM
|
|
Pressure
|
0.2 bar
|
|
Working Temperature
|
-30 to +150°C
|
|
Size
|

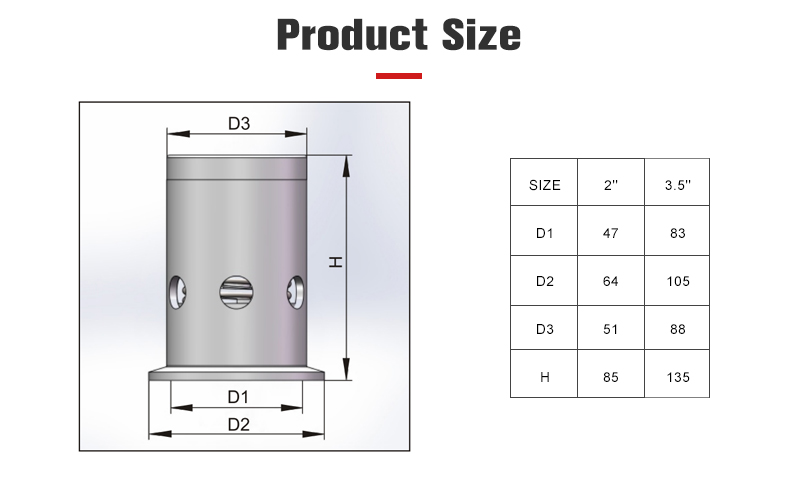

2"(Available: 34mm, 1" 1.5", 2", 2.5", 3.5")
|
|
Connection Mode
|
Clamp (Available: weld, thread)
|
|
Customized Support
|
OEM, ODM
|
|
Application
|
Food & Beer &Beverage & Pharmaceutical
|
