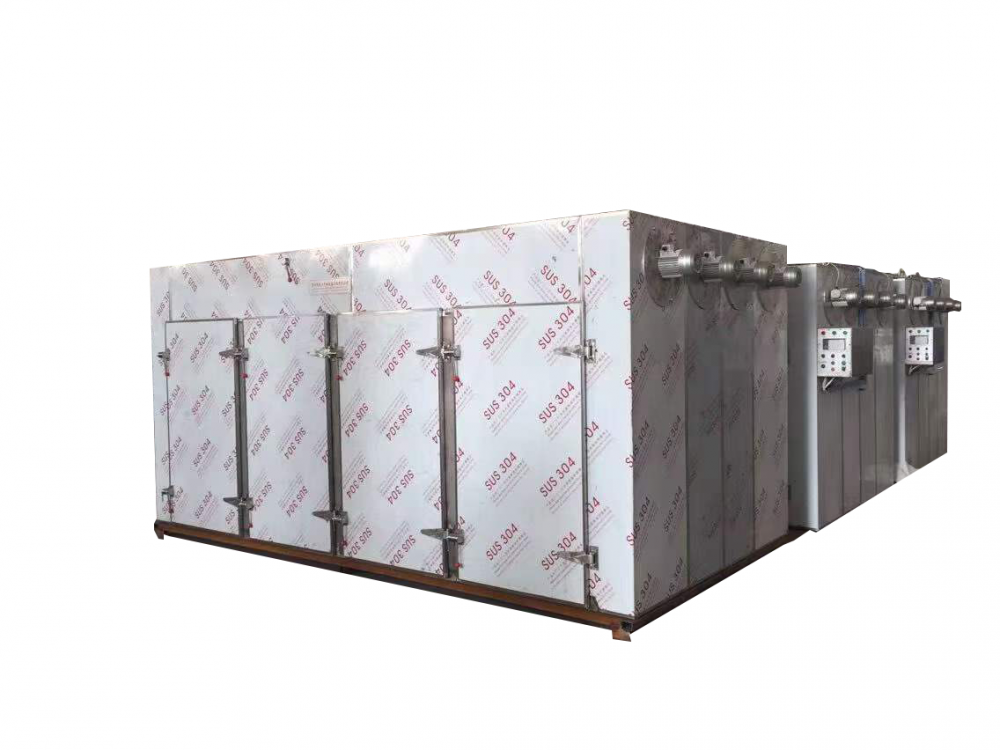

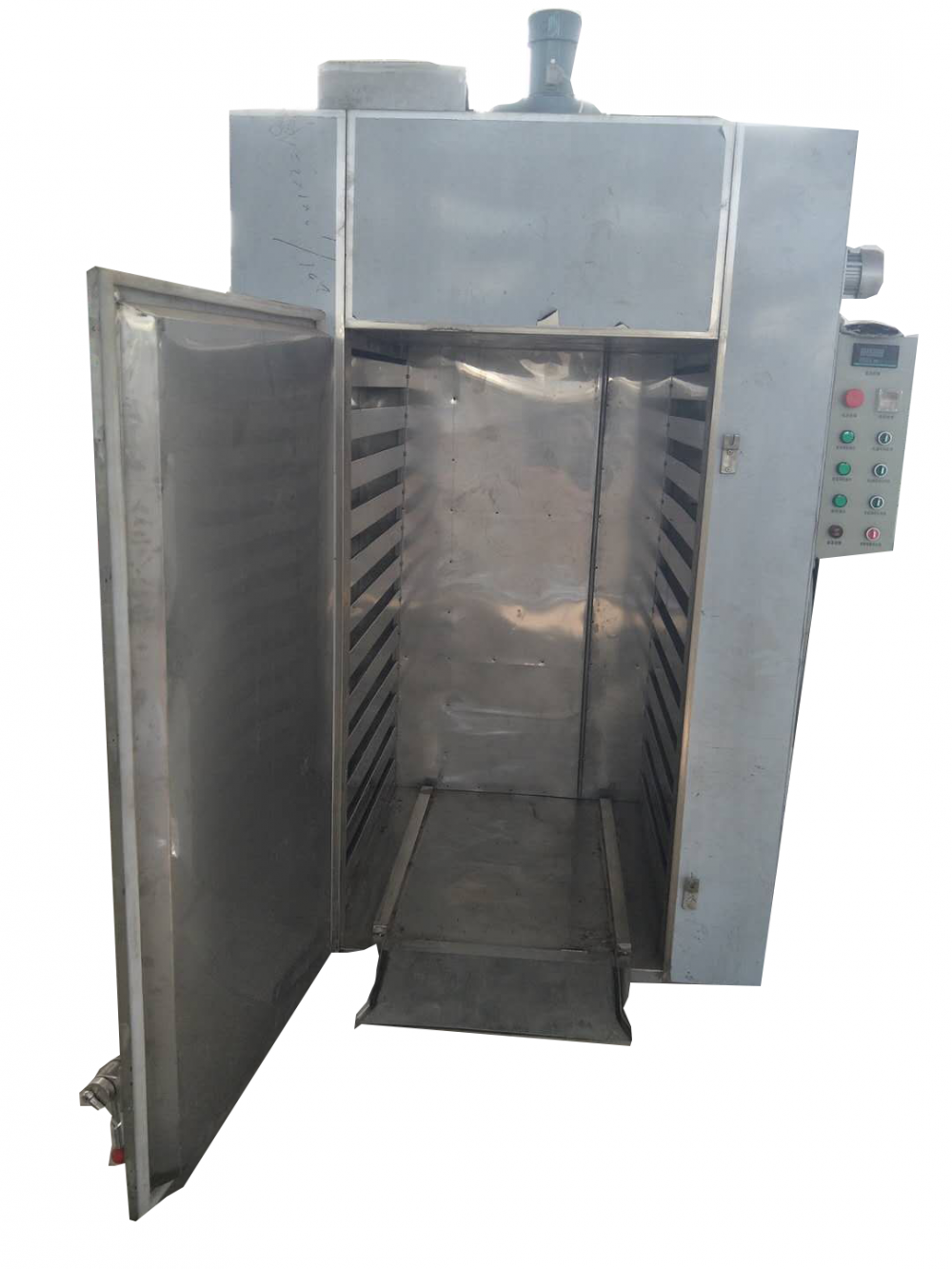

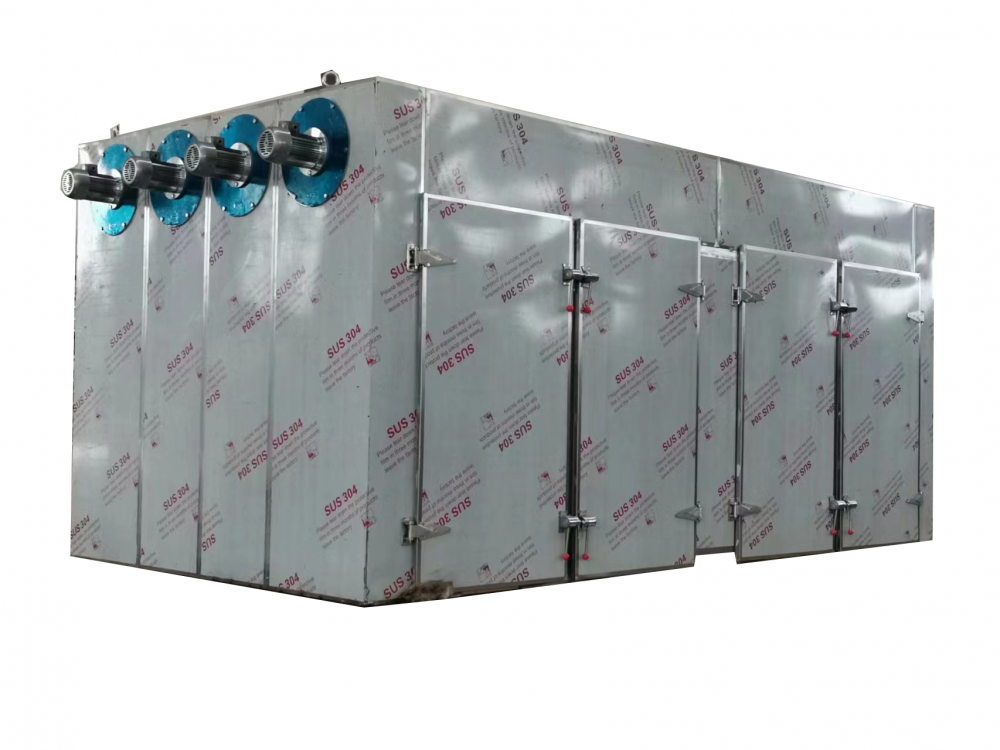

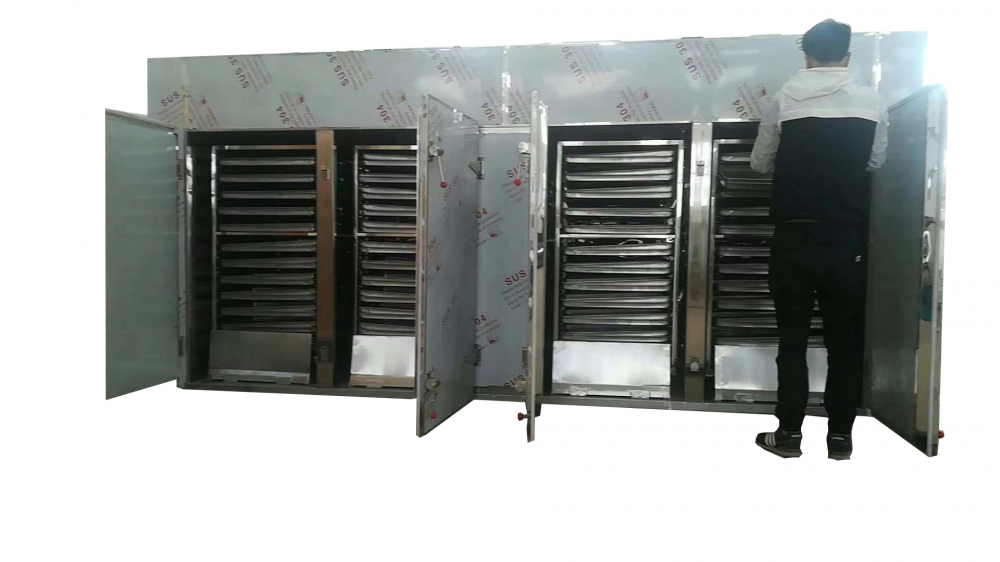

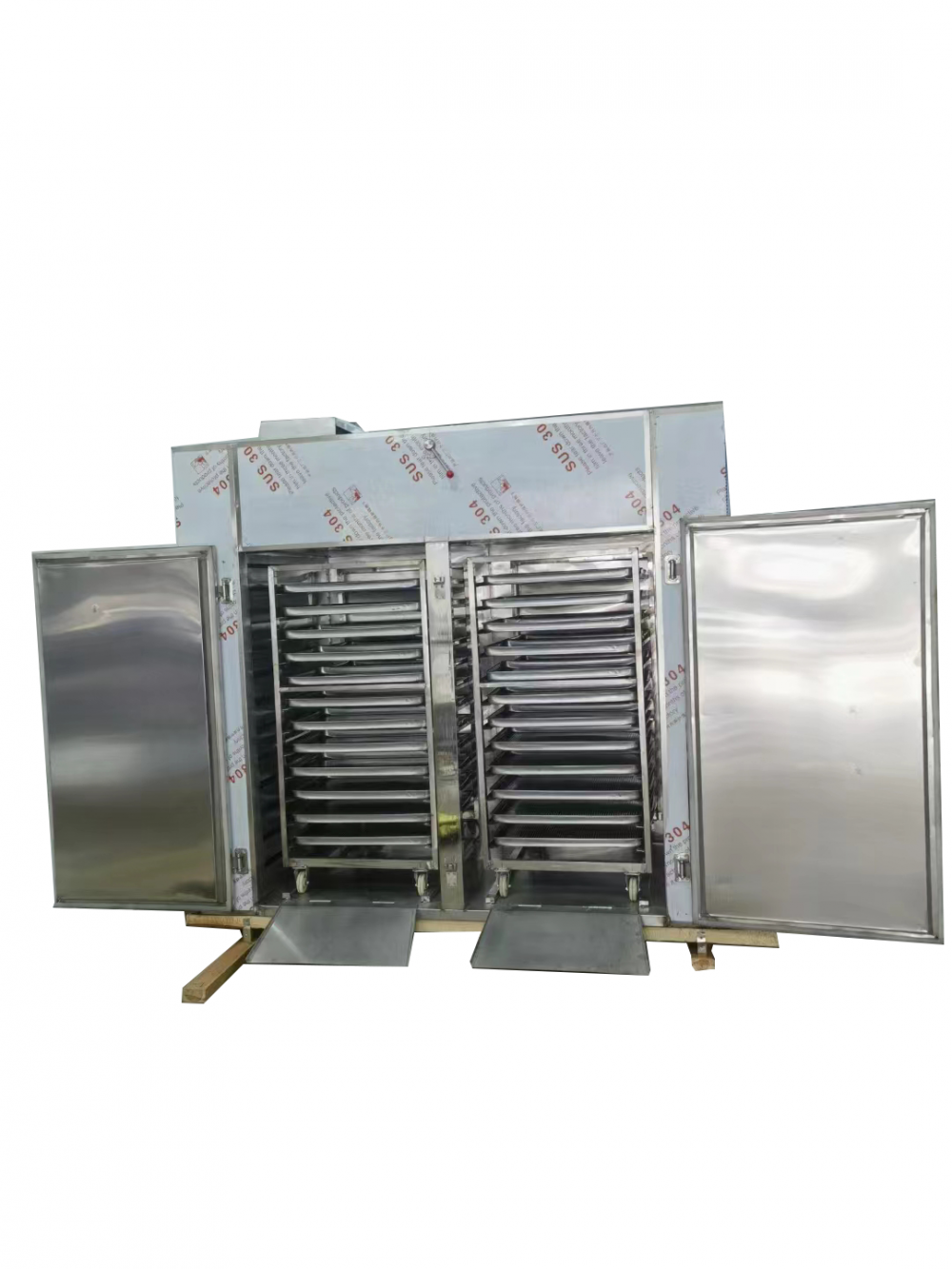

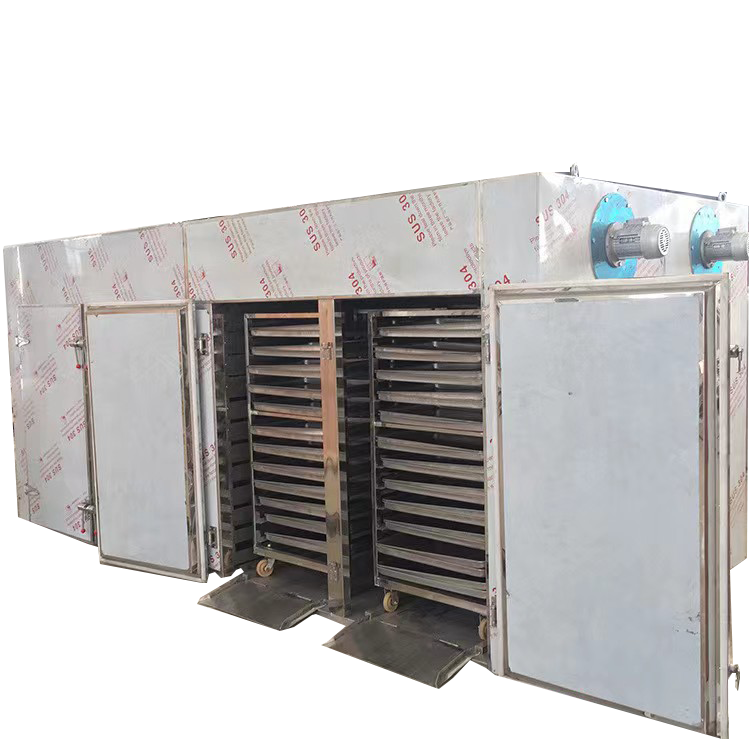

fish drying oven
2 year ago
Parameters and Remark:
1) Heating source: Vapor, heat conductive oil, hot water, electric heating pipe, FRI etc.
2) Operating temperature: Vapor heating from roomtemperature to 140℃, max 150℃.
3) By Electric, FRI heating, temperature range from room level to 350℃.
4) Auto-control system and computer control system as option.
5) Common vapor pressure 0.2-0.8 Mpa.
6) Electro-heating (type 1) 15 kw, actually 5-8 kw/h.
7) Special requirements should be indicated while ordering.
8) Non-standard dryer can be produced based on process parameter.
9) Operation ambient temperature high than 140℃ or less than 60℃ should be marked out while ordering.
10) Dry vehicle and tray's dimension are standard and changeable.
11) Dry tray dimension: 460x640x45mm.
Product main application
Main parameter
Model
Capacity(kg/batch)
Vapprize area
Avilable volume(m3）
Heating powder(kw)
Tray carriage q'ty(pcs)
Dry tray q'ty(pcs)
Size(mm)
Weight(kg)
CT-C-0
60
7.1
1.3
6-9
1
24
1380x1200x2000
820
CT-C-I
120
14.1
2.6
15
2
48
2360x1200x2000
1580
CT-C-II
240
28.3
4.9
30
4
96
2360x2200x2000
1800
CT-C-II A
240
28.3
4.9
30
4
96
4280x2200x2000
1880
CT-C-III
360
42.4
7.4
45
6
144
4280x2200x2000
2100
CT-C-III A
360
42.4
7.4
45
6
144
4280x2200x2000
2210
CT-C-IV
480
56.1
10.3
60
8
192
4280x2200x2270
2800
Remarks:
1.Delivery:7 working days in factory
2.Payment:30% advance,70% before shipping by TT/Paypal
3.If u feel interested in this machine u can tell me your drying material,capacity and voltage requirements so that i can better recommend more suitable for your demands machine.in addition we also produce powder grinding machine ,powder mixing machine,sifting machine,conveyor,granulator,capsule filling machine,capsule polishing machine,capsule counting machine and capsule blister packing machine etc.if u need it someday can contact me anytime ,what do u think
