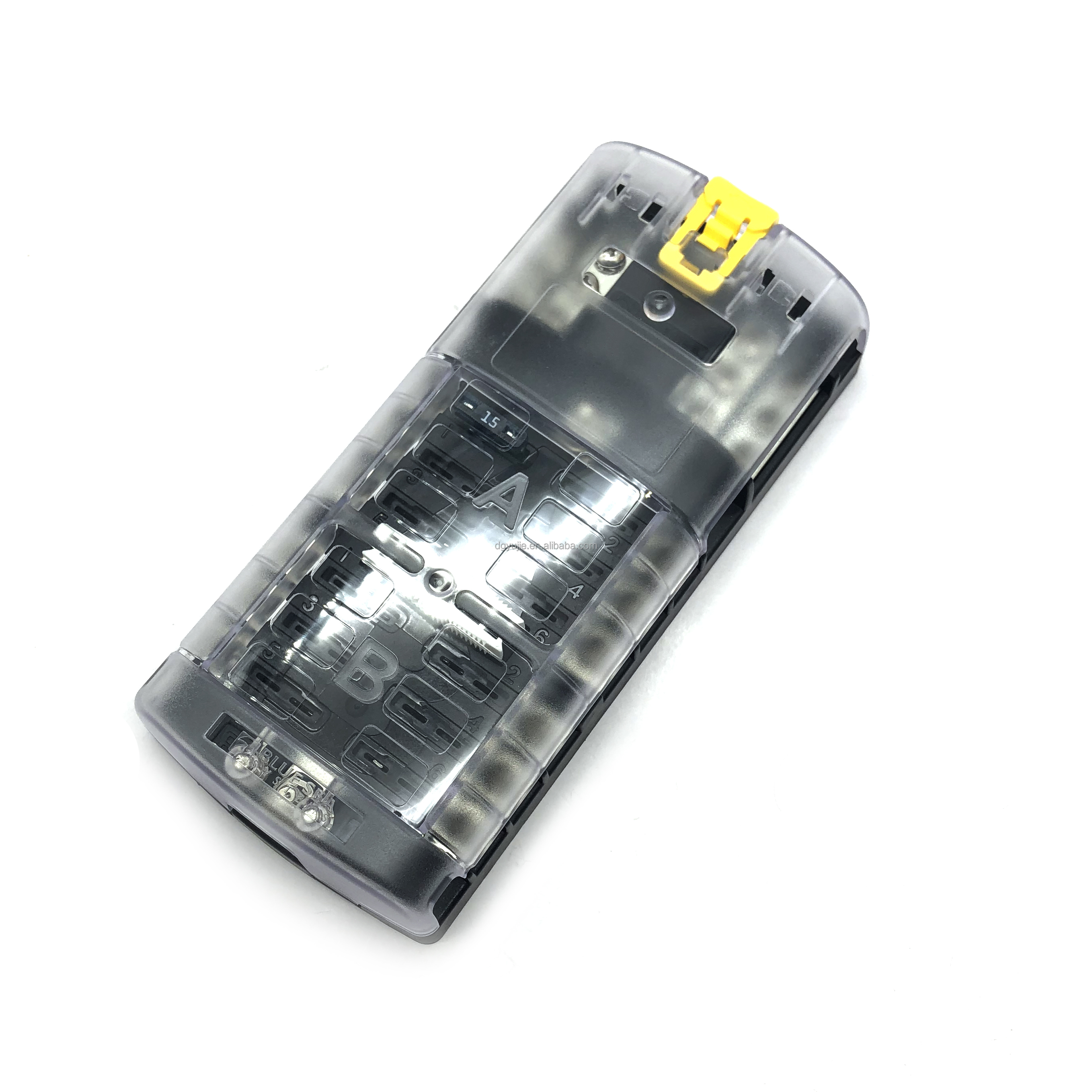

12 V CIRCUITS ST ATC ATO BLADE FUSE BLOCK DISTRIBUTION BOX WITH NEGATIVE BUS AND COVER

Split Bus Fuse Block with ground for use when a mix of switched and 24-hour circuits are desired in the same block
* Provides two isolated groups of six ATO®/ATC® circuits
* For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
* Screw terminals for securing wires accept ring terminals
* One-piece stainless flange nuts ensure safe and secure connections
* Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
* Easy to open, push button latch for easy access to fuses
* Tin-plated copper buses and fuse clips

Specification

Product name	12 V CIRCUITS ST ATC ATO BLADE FUSE BLOCK DISTRIBUTION BOX WITH NEGATIVE BUS AND COVER
Material	ABS and dustproof cover + Nickel plated copper connection terminal
Input Voltage	12V-32V DC
Input / Output Current	100A / 30A max. per circuit
Max Volts	32V DC
Mounting Type	#8 (M4) Screw
Negative bus	#10-32 stud
Positive bus	#10-32 stud
Screw terminal type	#8-32 screws with captive star lock washer
Application	Airplane, subway, bus, ship, tanker, modified car, eco-car, etc

100% BRAND NEW Item ! Never Used !!

Features:

* Positive distribution bus with #10-32 stud
* Can be used for 24-hour circuits
* With cover
* Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems" Small Format Labels
* Tin-plated copper buses and fuse clips give up to 30A per circuit protection
* Accepts ring or snap fork type terminals
* Accepts ATO® and ATC® fast acting blade fuses
* Fuses sold separately
* Includes 20 write-on labels included and accepts square pre-made labels
* Lifetime warranty

Specifications 12 Circuit w/Neg bus
* Circuits: 12
* Maximum Amperage: 100A per block/ 30A per circuit
* Maximum Voltage: 32V
* Mounting: # 8 screw
* Negative bus fasteners: #10-32
* Positive bus fasteners: #10-32

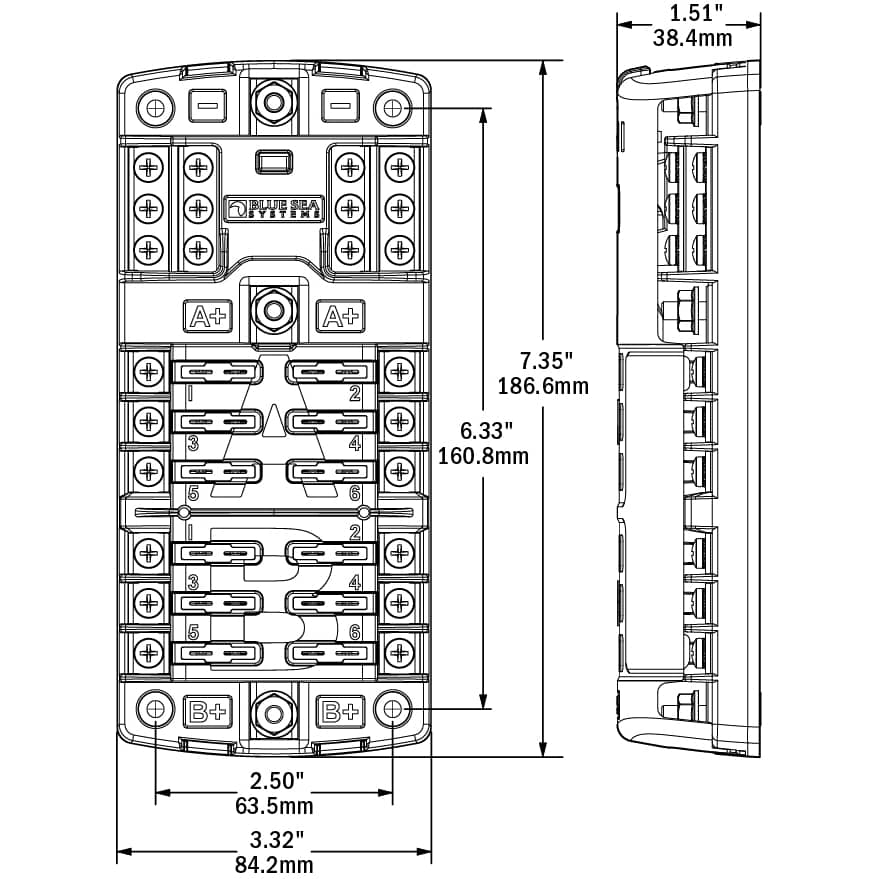

* Dimensions: 6 1/2”L x 3 5/16”W x 1 ½”Deep
* Weight: .75 Lbs.
