* 2.Provides one fuse holder to protect existing circuit, and a second fuse holder to protect new circuit.
* 3.Easy to add an extra power or connection to the fuse box without cutting the wire.

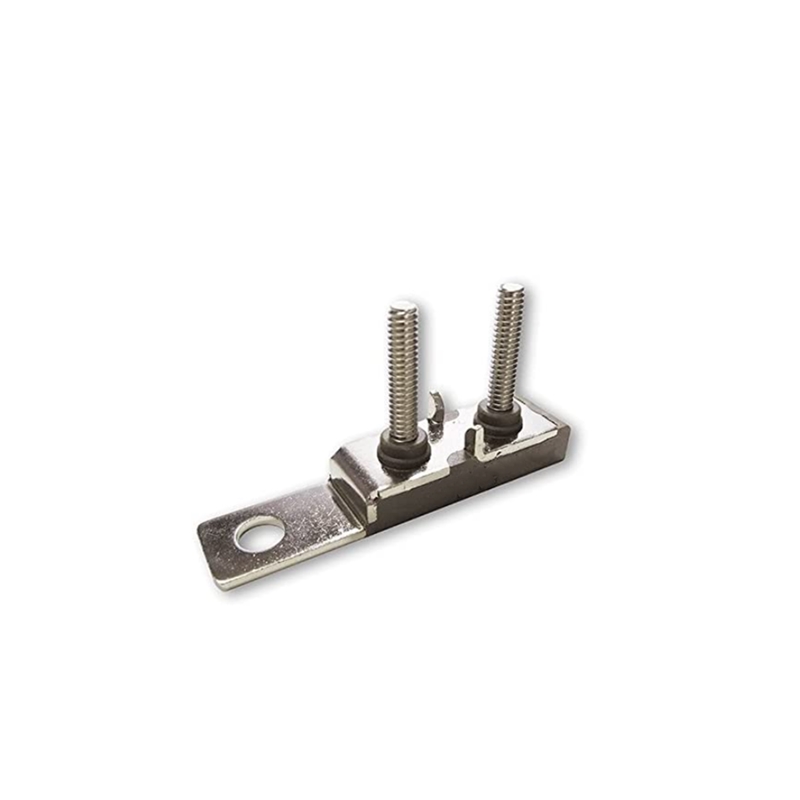

MRBF TERMINAL FUSE BLOCK MRBF Fuse Holder
2 year ago
Product details
Product Description
-
-

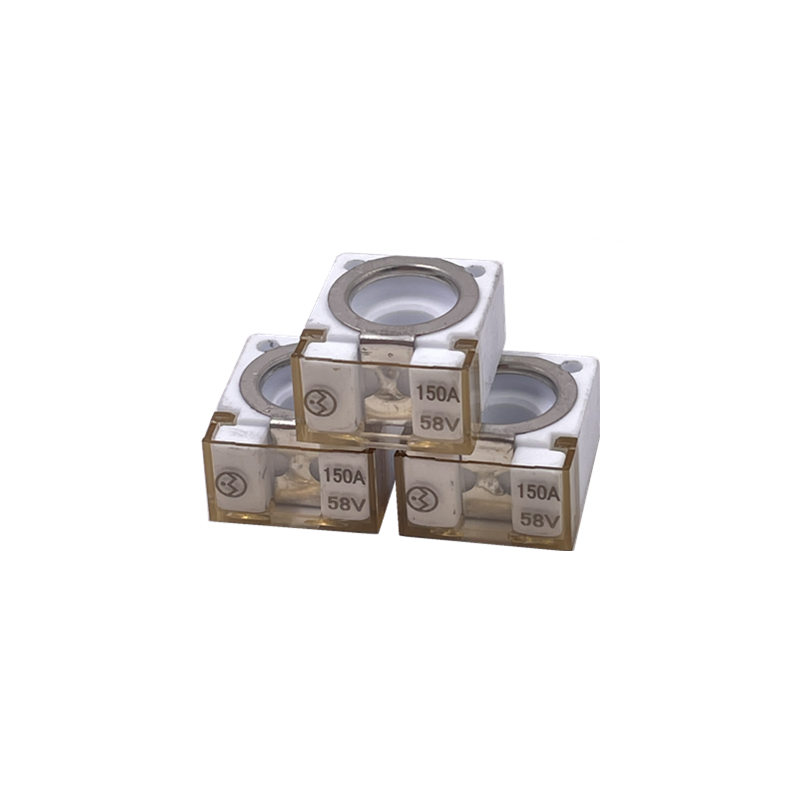

MRBF Fuse and Fuse Block Terminal – Marine Rated Battery Fuse 30-300 Amp Rating
* 2.Provides one fuse holder to protect existing circuit, and a second fuse holder to protect new circuit.
* 3.Easy to add an extra power or connection to the fuse box without cutting the wire.
Full range circuit protection for automotive and marine applications. The breaking capacity meets the requirements of conventional vehicle batteries and 12V, 24V and 42V electrical networks. Compact, high-amp fuse appropriate for DC Main, inverters, windlass, and bow thruster circuit protection. Provides high current protection in tight space constraints. Ignition protected when used with MRBF Terminal Fuse Blocks. Isolated stud design uses standard M8 hardware and permits stacking of terminals.*
Detailed Images
|
Stud Size
|
5/16" (M8), accepts 5/16" ring terminals
|
|
Terminal Mounting Hole
|
3/8" (M10)
|
|
Maximum Voltage Rating
|
58Vdc
|
|
Amperage Rating
|
30A – 300A
|
|
Interrupt Rating
|
10,000A @ 14Vdc / 5,000A @ 32Vdc / 2,000A @ 58Vdc
|
|
Maximum Torque Rating
|
12 N•m (106 in-lbs)
|
|
Material: Body - Ceramic
|
Housing & Cover: UL-rated 94V0 Thermoplastic; Ring Terminals - Tin Plated
|
* TERMINAL FUSE BLOCK (Fuse NOT Included) – Links to MRBF Fuses & Fuse Block Kit listings can be found below in the description

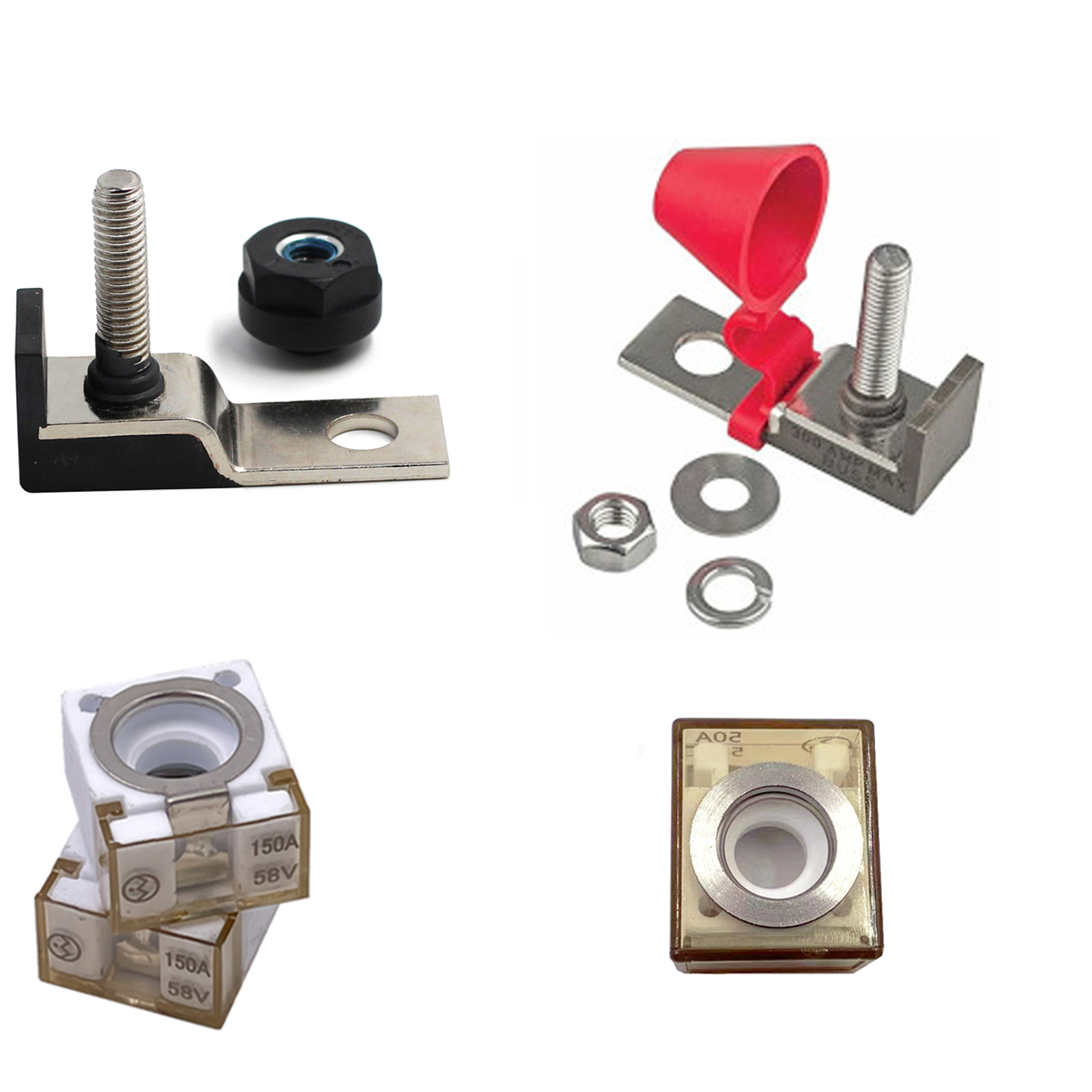

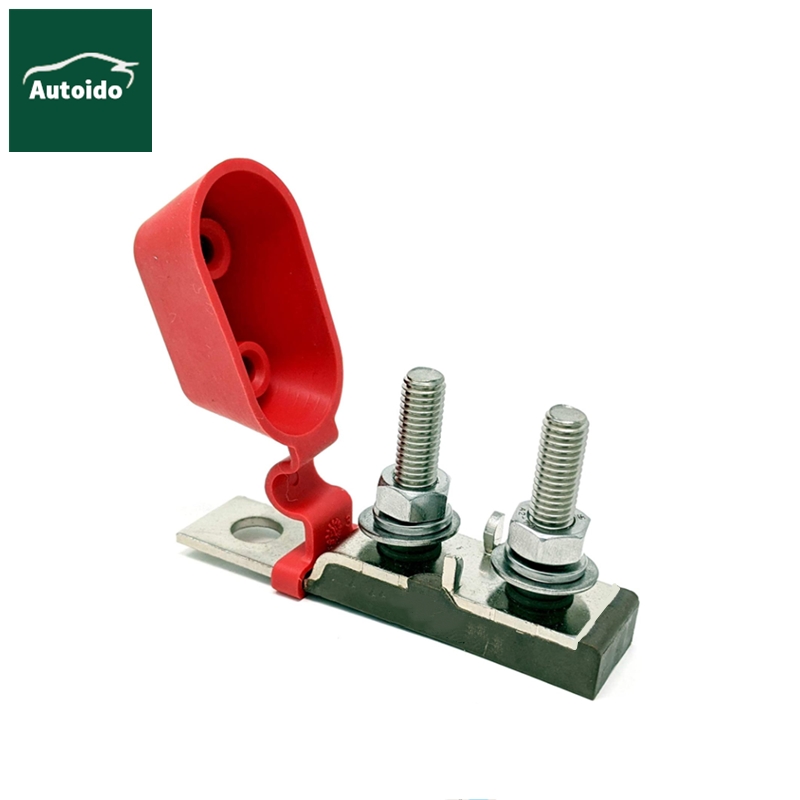

* MRBF Terminal Fuse Block Includes: (1) Dual MRBF Terminal Fuse Block, (1) Red Insulator Cap, (2) Washer, (2) Lock Washer, (2)M8 Hex Nut
* Fuses have a Max Voltage Rating: 58V –– Fuse Holder have an Amperage Rating: 30-300A –– Fuses Holder Stud Size: M8 (5/16") ––Fuse Holder Mounting Hole: M10 (3/8")
* Compact, high-amp fuse appropriate for DC Main, inverters, windlass, and bow thruster circuit protection. Provides high current protection in tight space constraints. Ignition protected when used with MRBF Terminal Fuse Blocks. Isolated stud design uses standard M8 hardware and permits stacking of terminals.
* IGNITION PROTECTED – Safe for installation aboard gasoline powered boats. IP66 – Protected against powerful water jets. 10,000 AIC at 14V DC satisfies ABYC requirements for DC Main circuit protection on large battery banks. [WARNING: Do not mount fuses directly on battery terminals. Must use with Terminal Fuse Blocks.]
* MRBF Terminal Fuse Block Includes: (1) Dual MRBF Terminal Fuse Block, (1) Red Insulator Cap, (2) Washer, (2) Lock Washer, (2)M8 Hex Nut
* Fuses have a Max Voltage Rating: 58V –– Fuse Holder have an Amperage Rating: 30-300A –– Fuses Holder Stud Size: M8 (5/16") ––Fuse Holder Mounting Hole: M10 (3/8")
* Compact, high-amp fuse appropriate for DC Main, inverters, windlass, and bow thruster circuit protection. Provides high current protection in tight space constraints. Ignition protected when used with MRBF Terminal Fuse Blocks. Isolated stud design uses standard M8 hardware and permits stacking of terminals.
* IGNITION PROTECTED – Safe for installation aboard gasoline powered boats. IP66 – Protected against powerful water jets. 10,000 AIC at 14V DC satisfies ABYC requirements for DC Main circuit protection on large battery banks. [WARNING: Do not mount fuses directly on battery terminals. Must use with Terminal Fuse Blocks.]

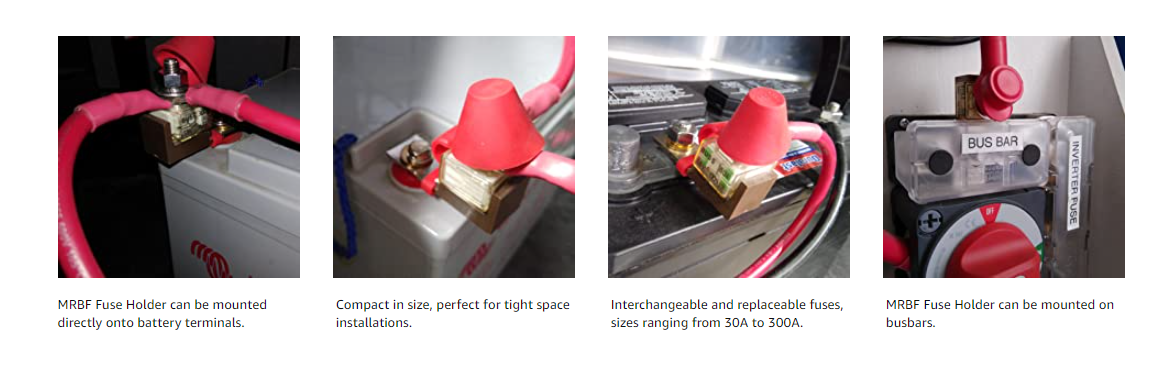

Designed for the most demanding environment to provide high current protection for the tightest space constraints. Suitable for main and auxiliary circuit protection such as alternator outputs, starter motor inputs and accessory circuits. Alleviates having to make up a short wire to connect to a standard fuse block to the battery. Safe for installation aboard gasoline powered boats.
