60 single head pipe chamfering machine
2 year ago

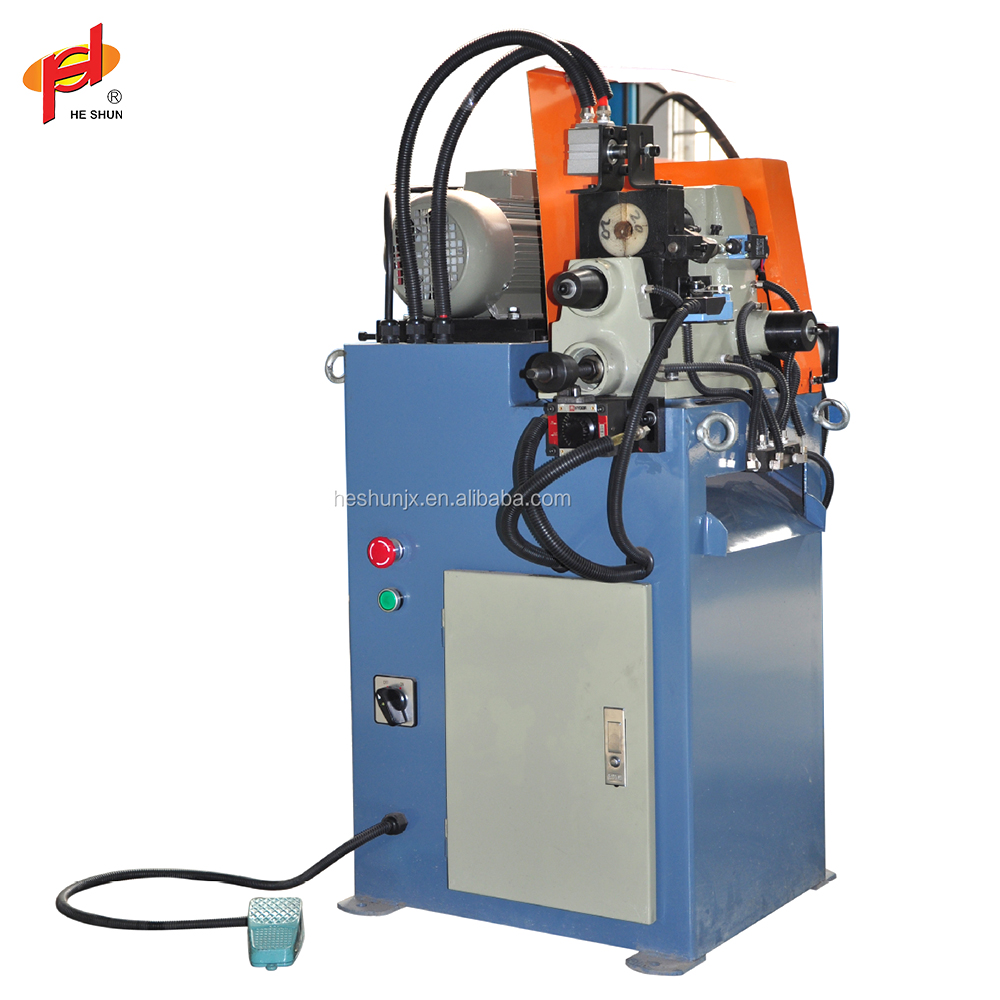

Single Head Pipe Chamfering Machine
1.Product Introduction:
This is our AC60 pipe chamfering machine.It can be used to chamfer the pipes, tubes and bars. It can deal with the stainless steel, carbon steel, alloy steel, aluminum, copper, and iron materials. So it is widely used in industries.
There are some types of chamfering machine, such as AC60, AC80, AC120,AC180 and so on. Our clients can choose the suitable machine according to their pipes or bars. Also the chamfering angle can be set by the tube chamfering machine. The pipe deburing machine usually chamfer the 30 degree, 45 degree and 60 degree. Also you can chamfer the other degrees according to your demands.The chamfering angle can be customized.
2.Product Parameter:
| Technical parameters | AC 60 |
| Pipe diameter capability | Φ8~Φ60mm |
| The length of chamfer working piece | 90~1000mm |
| Rotation speed | 800/1600 RPM |
| Hydraulic oil pump motor | 2.2kw |
| Chamfering motor | 2.2kw |
| Hydraulic pressure | 10Mpa |
| Suitable material | Carbon steel, stainless steel, aluminum, copper (pipe and iron bar) |
| Size | 1800×1000×1100mm |
| Weight | About 1000kg |

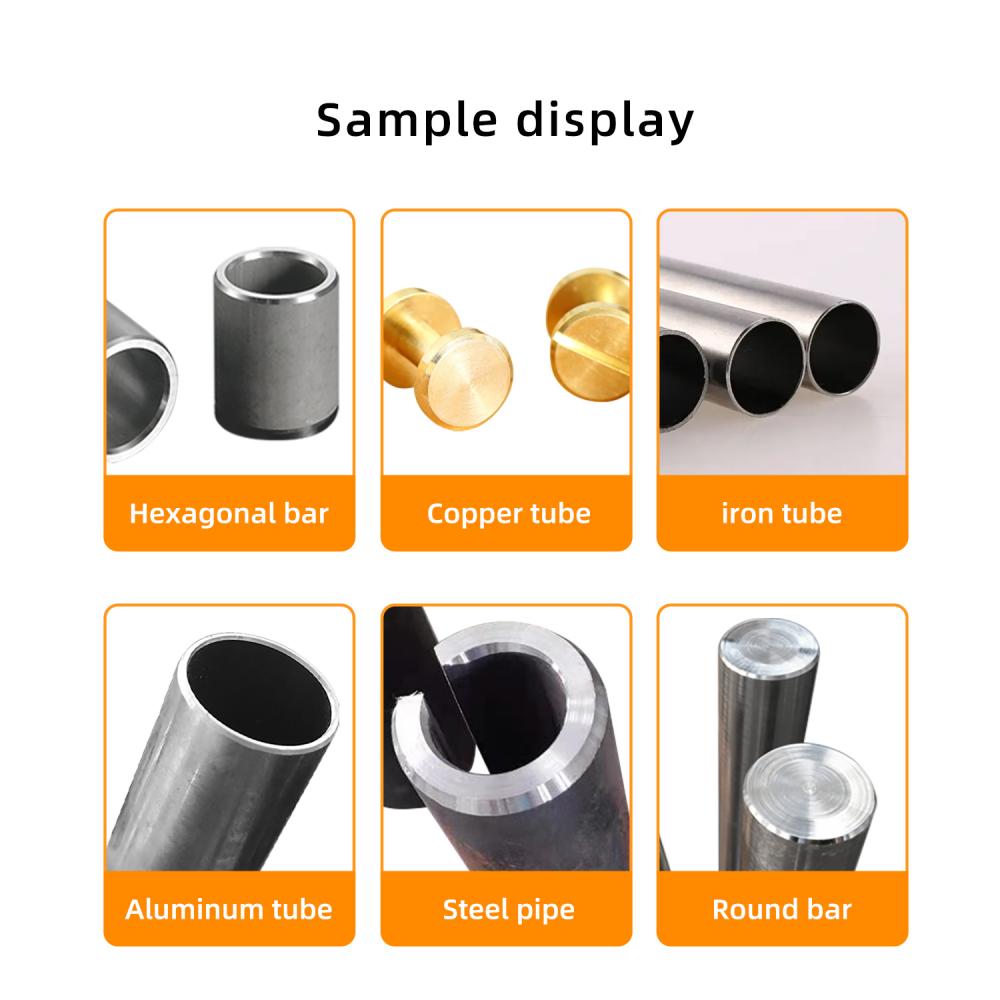

Processed pipes by the pipe tube bar deburing machine
