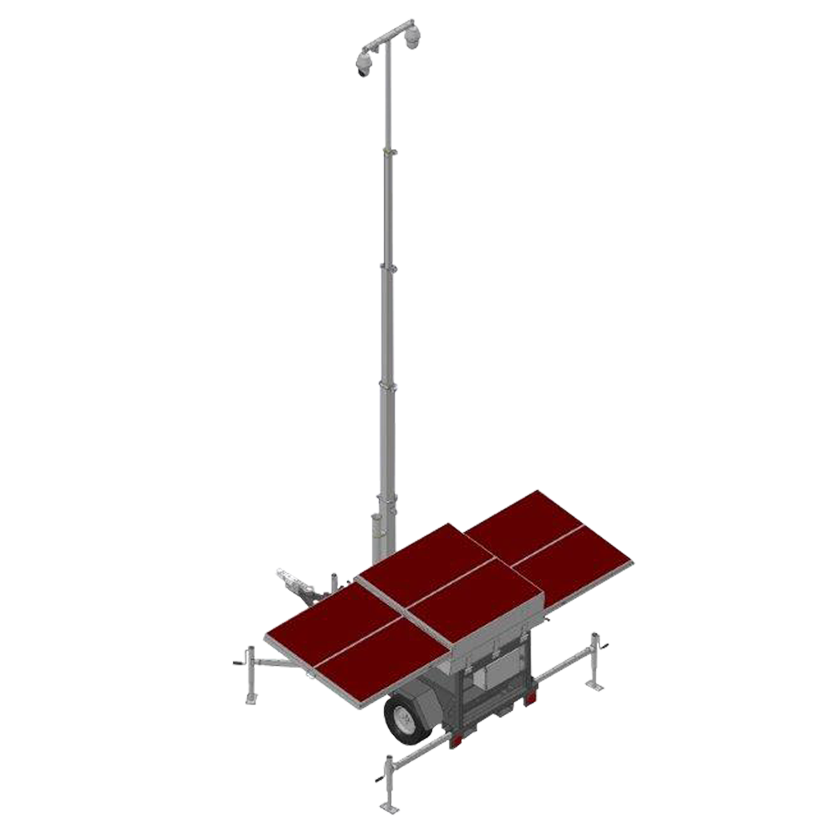

SXC9 Towable Surveillance Tower
2 year ago
MOBILE SURVEILLANCE TOWER
A mobile surveillance tower is a portable structure equipped with advanced surveillance technology used for monitoring and securing various locations. It is typically mounted on a trailer or a truck, allowing it to be easily transported and deployed wherever it is needed. The tower is usually equipped with high-resolution cameras, thermal imaging cameras, and other sensors that can capture and record video footage in real-time. It may also have built-in analytics software that can detect and alert operators of any suspicious activities or potential security threats. Mobile surveillance towers are commonly used in a variety of applications, including law enforcement, border security, event monitoring, construction site security, and temporary surveillance needs. They provide a high vantage point for surveillance and can be quickly set up in different locations to cover a wide area.
Now our products covers Environmental light tower (Solar light tower, Hybrid light tower and Portable light tower), Diesel light tower, Generator set, Solar system (Quickly layout solar power station and Mobile solar energy generator with off-grid). In addition, there are more types of light tower for you to choose from: LED light tower, traditional light tower, and hydraulic light tower, Solar Light Tower, etc.
FEATURES
PRODUCT SPECIFICATIONS
|
Towable Surveillance Tower |
||
|
Standard Model |
SXC9-910 |
|
|
Dimensions |
Length |
3,120 mm (10' 2¾") |
|
Width |
1,620 mm (5' 3¾") |
|
|
Height for loading |
2,450 mm (8' ½") |
|
|
Height fully extended |
9 m (29' 7'') |
|
|
Gross weight |
685 kg (1,500 lb) |
|
|
Mast & Optional camera |
Mast style |
5 sections telescopic mast with 2500lb winch |
|
Mast rotation |
No |
|
|
Recommend camera* |
PTZ (Pan-Tilt-Zoom), ≤900W/day |
|
|
Max camera quantity* |
2 | |
|
Solar panel & charging system |
System voltage |
12 VDC |
|
Solar panel system |
910W- 2*455 W Mono |
|
|
Solar charging controller |
80A MPPT |
|
|
Panel system |
Manual retaction & expansion with guide rail system |
|
|
Panel kit tilt |
10°- 25° manual adjusting by a heavy duty jack |
|
|
Battery system |
Battery |
2*200 Ah Lithium |
|
Max continuable working time for the fully charged batteries |
55 hours (Theoretical data are for reference only) |
|
|
Trailer |
Suspension & brake |
Single torsion axle without brake |
|
Tow frame |
A style with a adjustable & retractable direction wheel |
|
|
Stabilizing leg |
4 galvanized jacks with retractable tube |
|
|
Wheel |
12" rim with regular tire |
|
|
2 inch ball & 2½ inch ring switchable coupler |
2 inch ball & 2½ inch ring switchable coupler |
|
|
Tail lights |
Night, turning & stopping taillights |
|
|
Max towing speed |
100 km/h ( 62 mph) |
|
|
General Data |
Max. wind resistance (All solar panels retracked) |
20 m/s (45 mph) |
|
Max. quantity for loading in 40' high cube |
8 units |
|
|
Optional parts or accessories |
DC power input |
DC 12V receptacle |
|
Battery Charger with cable & plug |
1 pcs |
|
|
Notes: 1. The camera is just a optional component, not be included in the standard configuration. 2. How full the batteries be charged by solar are completely depend on the weather, season and location. |
||

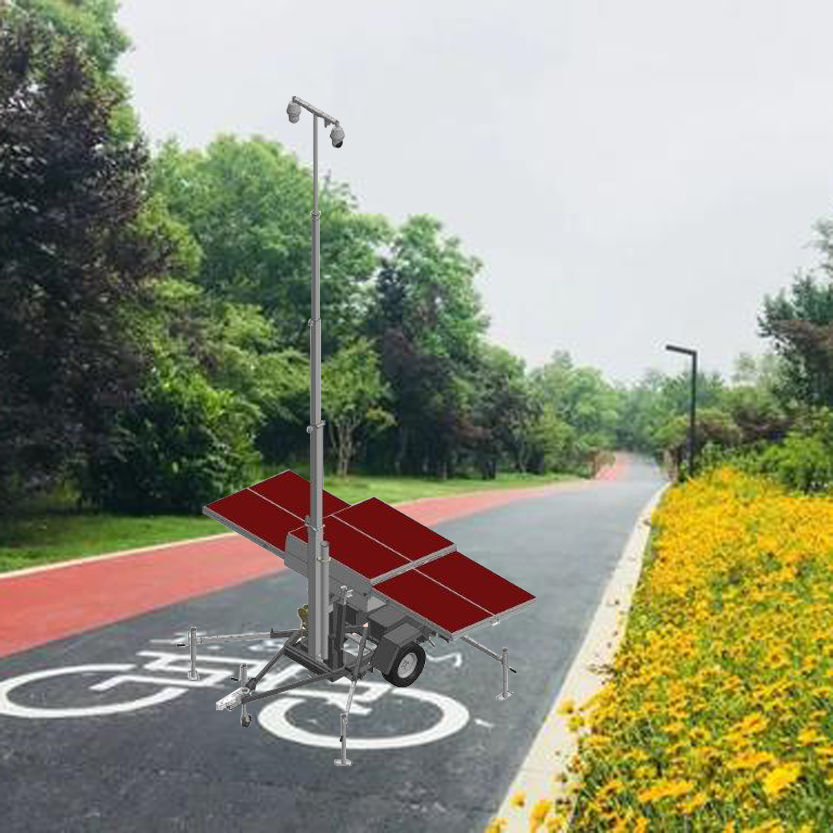

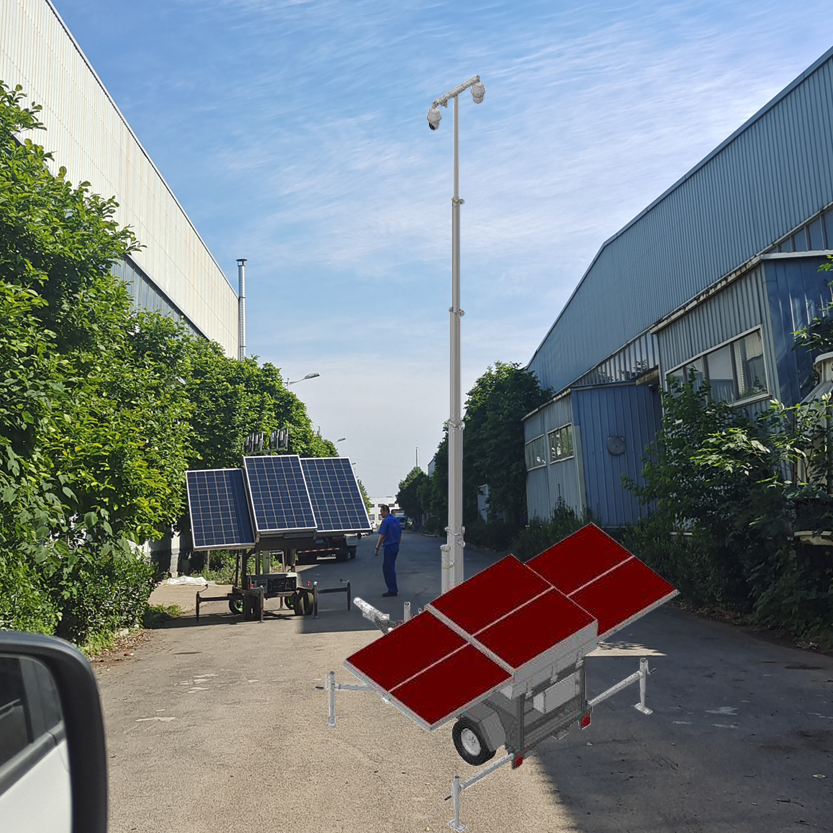

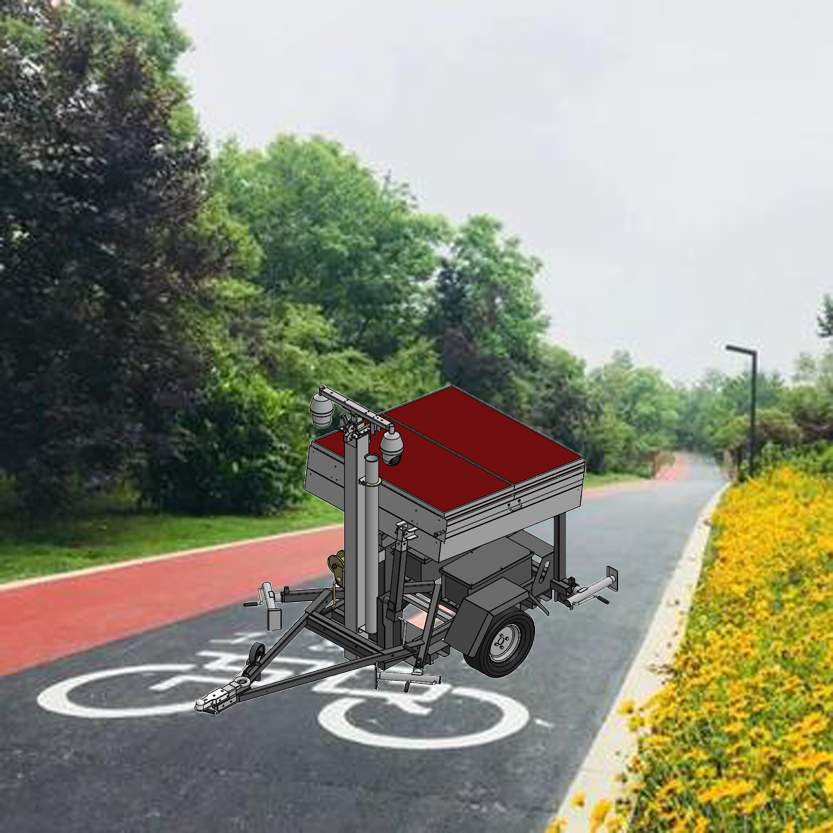

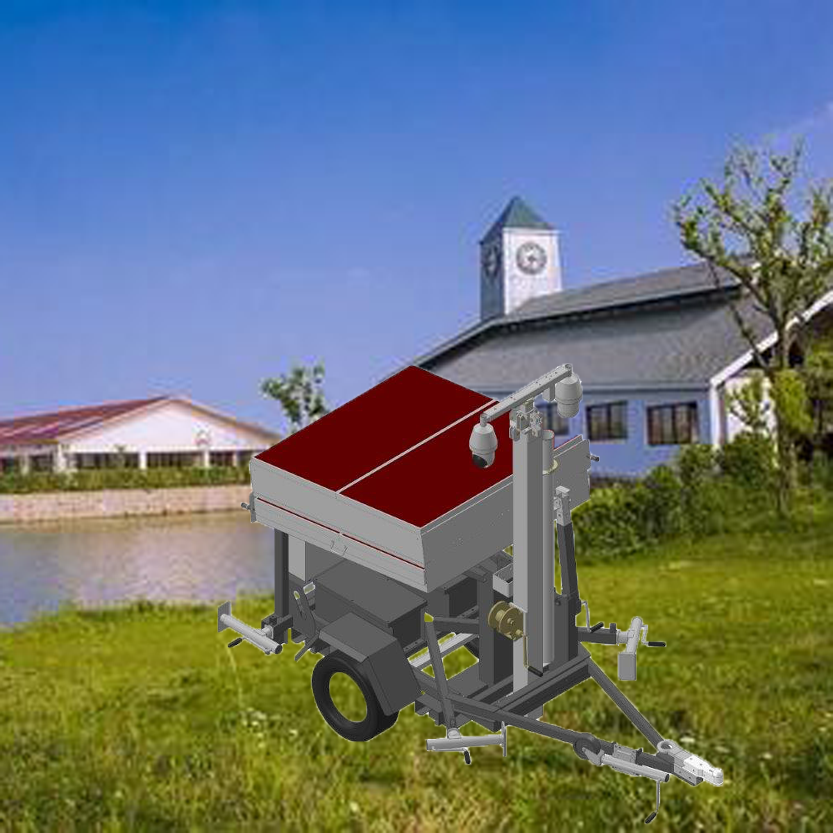

PRODUCT DISPLAY
