4WMM25 solenoid valve equivalent to Roxroth

WMM25, 32 diameter manual reversing valve

Diameter (NG) 25, 32mm, pressure to 31.5MPa, flow rate to 1100L/min

The WMM type valve is a handle-operated directional slide valve, which is used to control the opening, stopping and reversing of the liquid flow.

Jinhai is professional manufacturer of Various types of Directional Valves, Flow Valves, Pressure Valves and Accessories, Should you have any questions please feel free to come back to us.

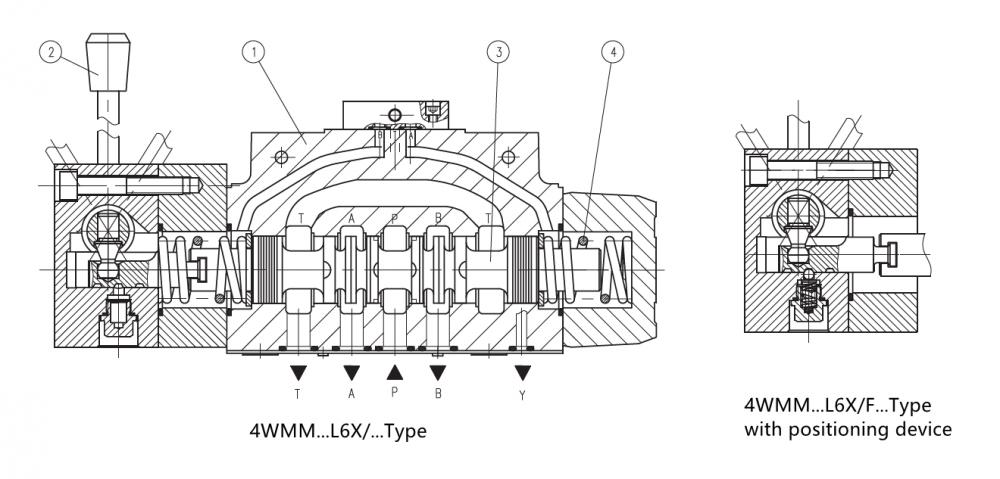

The composition of this directional control valve mainly includes valve body (1), handle (2), control spool (3) and 1 or 2 return springs (4).

In the operating state, the control spool (3) is held in the neutral or initial position by the return spring (4). The control spool (3) is driven by the handle (2). It acts directly on the control spool (3) via a hinge and a pin. The control spool (3) thus moves from the original position to the desired switching position.

After the handle (2) returns to the 0 switching position, the control spool (3) is pushed back to the neutral position by the return spring (4). Type 4WMM. ../F..• (with positioning mechanism) These directional control spool valves with 2 or 3 switching positions and with 1 positioning mechanism can be positioned in all switching positions.
