Corn Tortilla Chips making machine
1. Description
Doritos/totilla/triangle corn chips are kinds of snacks made from corn powder, which are cut and then fried. The main raw materials
are corn powder, vegetable oil, salt and water. Although usually made of yellow corn(as pictured), they can also be made of white,
or red corn. After frying and flavoring, we get very crunchy triangle or other shapes chips which are popular with both children and
adult.
2. Raw materials
corn powder as usual,also can be add rice powder,whear flour,soya flour etc.
3. Products: all shapes of Doritos, shapes like round, triangle, Hexagon ect. The size of products can be change according to
clients' requirements
4. Capacity
Model | Installed Power | Power Consumption | Output | Size |
FT63 Doritos Process Line | 205kw |
149kw |
250-300kg/h | 24000x1500x2200mm |
FT75 Doritos Process Line |
240kw |
180kw |
300-500kg/h |
25000x1500x2800mm |
FT95 Doritos Process Line |
368kw |
276kw |
700-1000kg/h |
27000x1500x3000mm |
LT65 Doritos Process Line |
143kw |
100kw |
120-150kg/h |
22000x1200x2200mm |
LT70 Doritos Process Line |
187kw |
131kw |
200-250kg/h |
24000x1500x2200mm |
LT85 Doritos Process Line |
232kw |
174kw |
300-500kg/h |
23000x1500x2300mm |

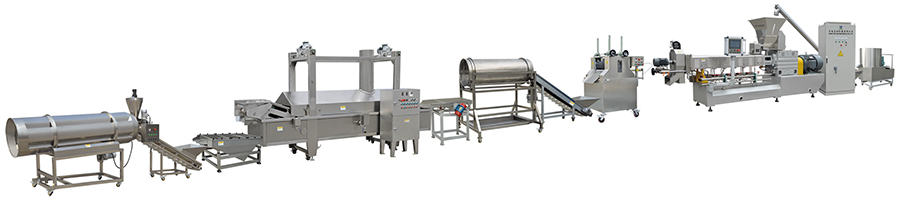

5. Flow chart
Mixing ---Extrusion ----Shaping ----separating-frying ---Flavoring

6. Voltage Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according
to different countries
7. Machines Materials All the machines are made by stainless steel,Contat food parts are all of SS304
8. Technical Parameters
1. The screw is made of alloy (38CrMoAL) by nitriding process, high strength and wear-resting. And it has good self-cleaning ability
and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.
2. It adopts speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine guarantees stable materials feeding in the whole food process.
3. The gearbox has automatic lubrication function, with extends gear life.
4. Radiator is increased on driving part for forced cooling effect, and it ensures extruder operate safely.
5. SIMENS(China) Motor.
6. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
9. Sample Pictures
10. Production
a.) Design: All the machines are elaborately designed by our mechanical engineers who are rich of experience in this field.
We accept special design according to customer’s request.
b.) Processing & Assembling: Parts processing, assembly, testing are based on standard test.
c.) Trial Run: Each machine has to be tested before its deliver.
11. Delivery
The machines is possible to pack in wooden case or nude pack after wraping by plastic film.
