Continuous frying machine

4 year ago
41 0
Product details

 Banana plantain potato chips fryer / french fries frying machine/ chicken industrial fryer machine

Introduction:

 Banana plantain potato chips fryer / french fries frying machine/ chicken industrial fryer machine consists of automatic belt conveying system, elevating system, oil adding system, oil temperature controlling system; fryer can use electricity, gas, and diesel as power source. Fryer can achieve industrial production, has features easy operation, stable performance and long time working, labor saving, easy maintained.

Adopt PLC control achieves totally automatic working.

Imported gas, diesel burner guarantee best power consumption with higher efficiency

Manuals and automatic control way, operation flexible

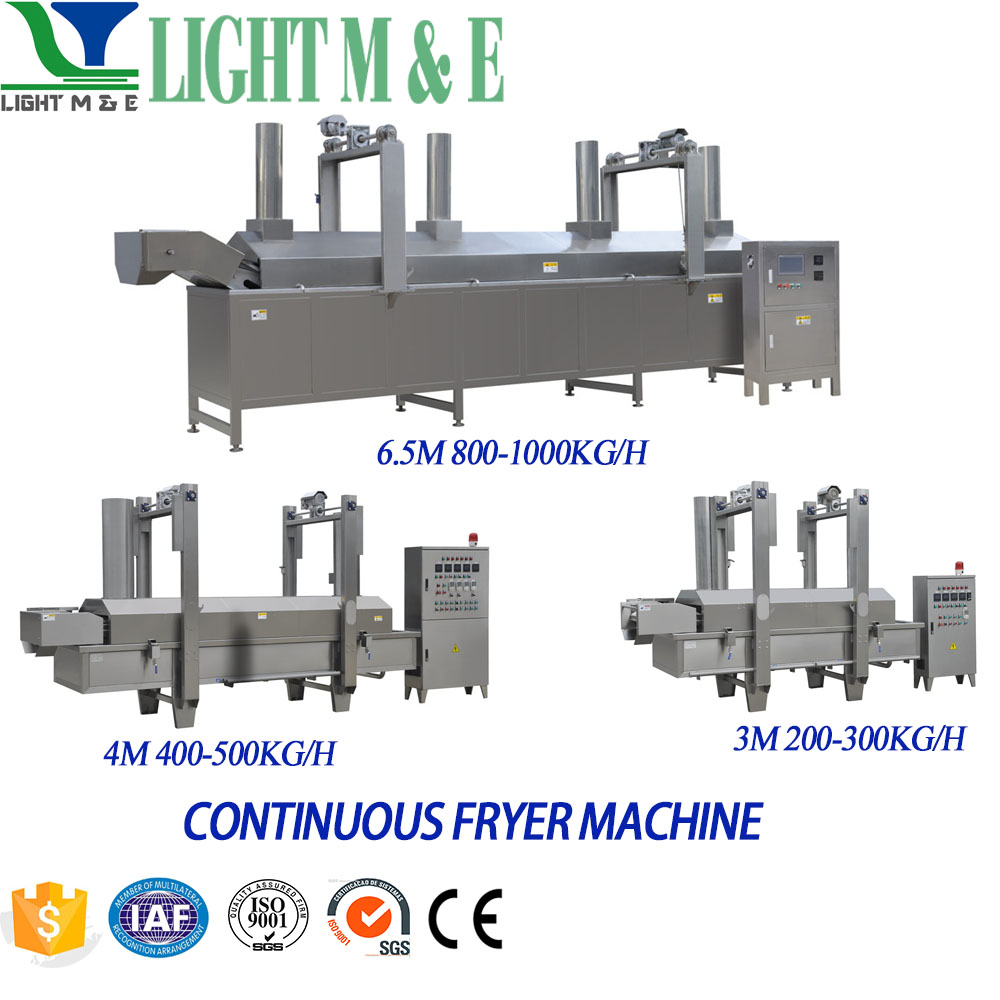

Different Model with capacity of continuous belt fryer machine:

 Model



Heating Power

 Heating Temperature

 Output

Size (L*W*H)





LTF-L

Continuous Fryer(Electric)

97kw/h

~250℃

300kg/h

3000x1200x2100mm

LTF-LG

Continuous Fryer(Gas/Diesel)

6-20.5m³/h(Gas)

7-15kg/h(Diesel)

~250℃

300kg/h

3000x1200x2100mm

LTF-LII

Continuous Fryer(Electric)

122kw/h

~250℃

400-500kg/h

4000x1300x2200mm

LTD-LGI

Continuous Fryer(Gas/Diesel)

35m³/h(Gas),

8-41kg/h (Diesel)

~250℃

400-500kg/h

4000x1300x2200mm



LTF-S

Simple Fryer

45kw/h

~250℃

60-80kg/h

2000x1500x2100mm

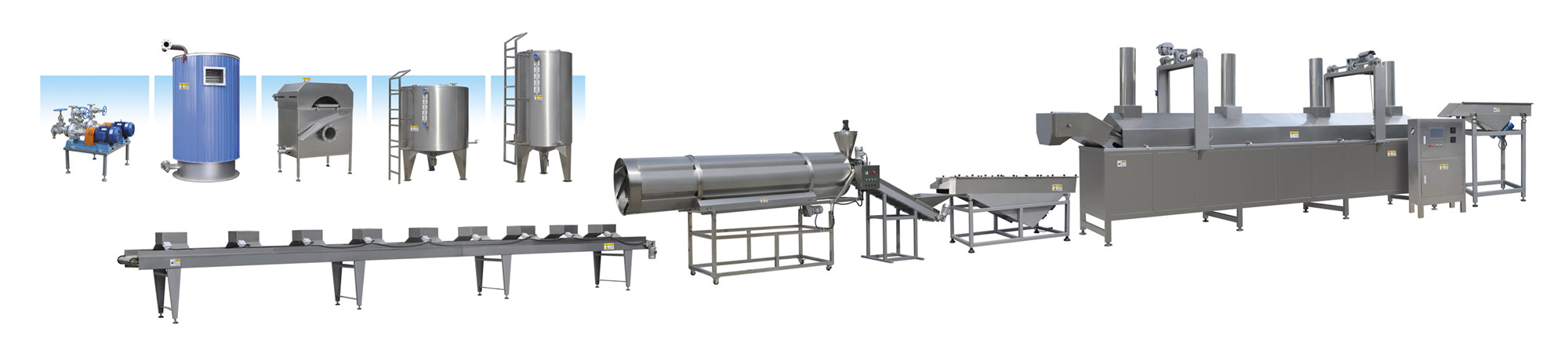

Process Flow chart:

continuous belt fryer


FROM RIGHT TO LEFT:

CONVEYING SYSTEM → FRYING SYSTEM  → DEOILING SYSTEM  →FLAVORING SYSTEM COOLING SYSTEM

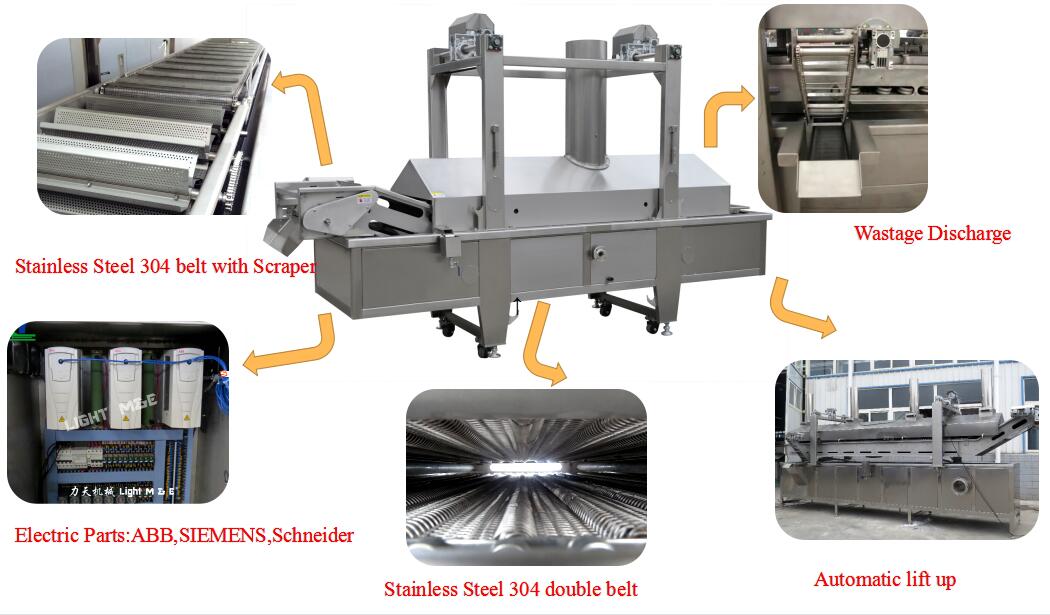

fryer details

Feature

1. The whole machine is made of food grade 304 stainless steel.

2. The frying temperature range is adjustable from 0-300℃, and the frying time can be set.

3. Heating method: gas, electricity or using these two heating methods can be selected on one machine.

4. Belt type: mesh belt or chain belt, depending on the fried material and accept customization.

5. This machine is equipped with an automatic lifting device to facilitate the cleaning of the inside of the fryer.

6. The conveying speed is adjustable, equipped with oil storage tank and circulating oil pump.

7. Unique internal structure, using proprietary technology, has the characteristics of energy saving and fast heating.

8. Optional fire extinguishing device and refined filtering device.


Final Fried Sample Shown:

frying products

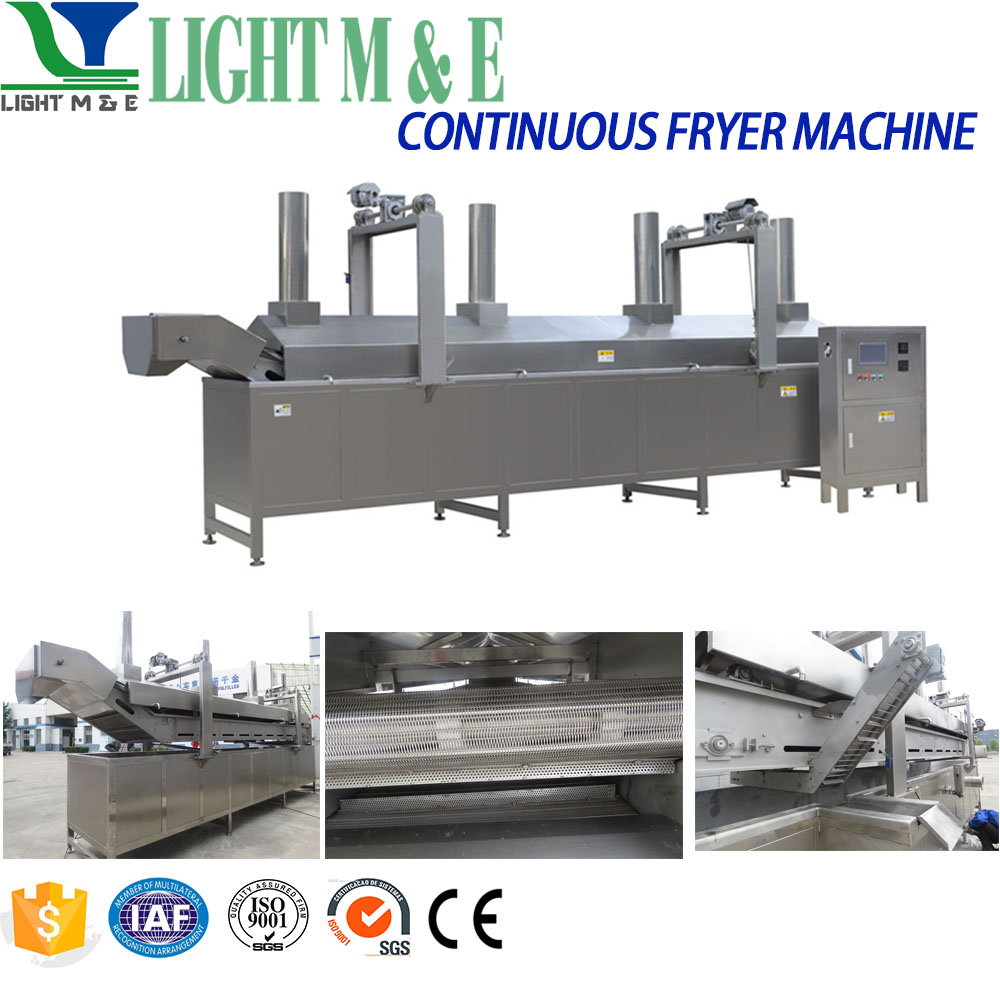

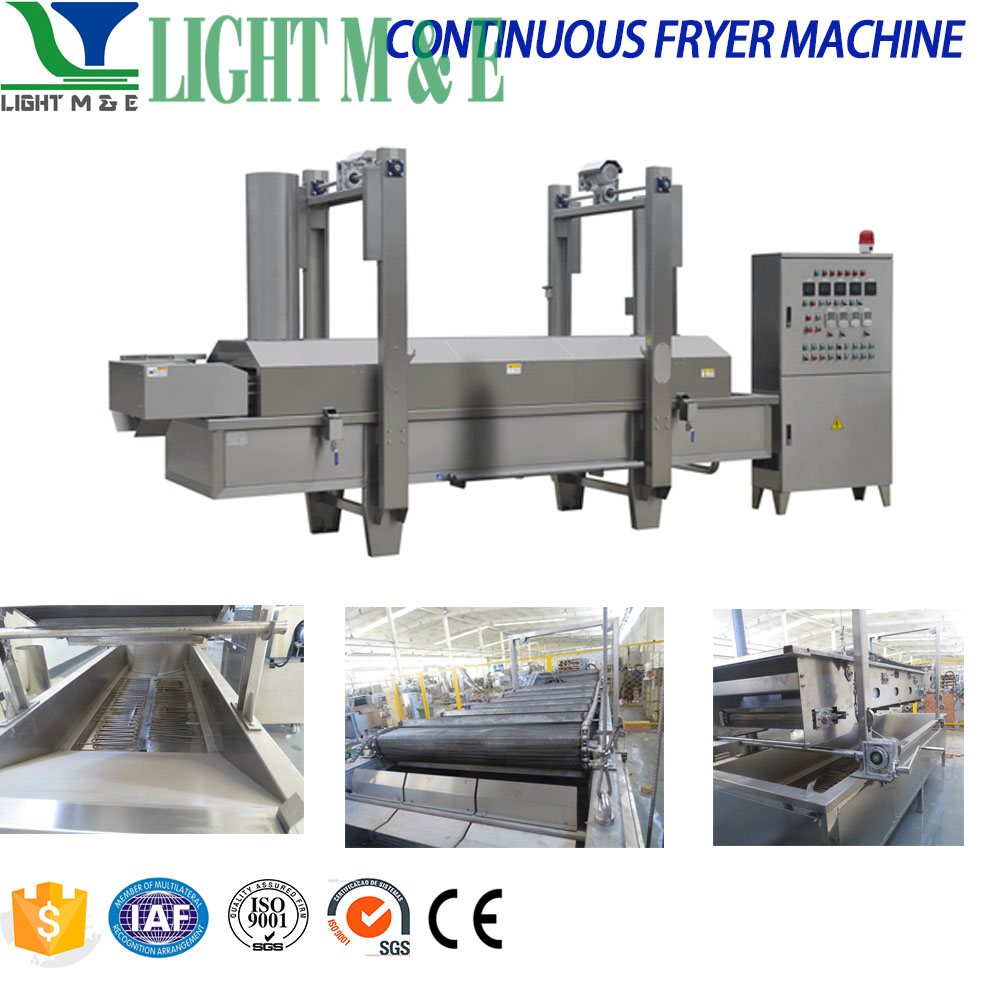

MACHINE DETAILS

10Automatic continuous belt frying machine5Fryer Machine
