12 meter pipe seam welding machine
2 year ago
12 meter pipe welding machine is customized according to client’s request,long beam is clamped on the frame,inside seam welding is welded through moving of welding rotator on the trolley.12 meter pipe longitudinal seam welding machine Moving of trolley is controlled by VFD,stable and reliable,and speed is adjustable,12 meter pipe inside longitudinal seam welding machine meet with different welding technology.Since diameter of pipe is small,worker can not get inside for checking and adjusting,12 meter pipe outside longitudinal seam welding machinewe adopted advanced monitoring system to check welding quality and condition.Worker can check and operate all conditions from Computer screen,and work with motorized accurate adjusting,12 meter pipe welding machine finishes automatic inside longitudinal seam welding for small diameter pipe.It improve the working efficiency and welding quality.Its suitable for manufacturing small diameter pipe in batch

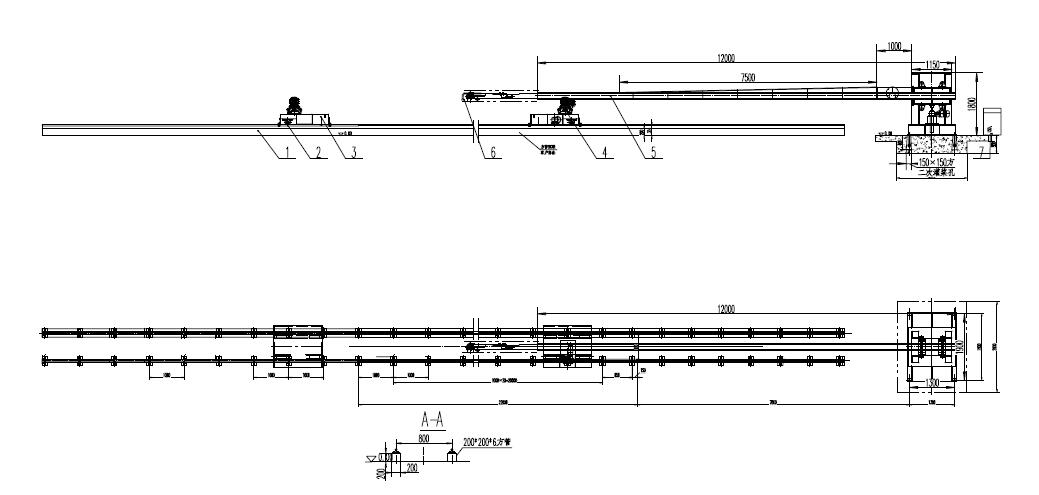

2.Drawing for 12 meter pipe welding machine:
3.1 Suitable pipe diameter： φ400～φ1500mm
3.2 Pipe thickness: 6-20mm
3.3 Welding beam elevating speed： 100mm/min
3.4 Welding beam elevating method： Lead screw
3.5 Welding beam elevating motor： 0.55kw
3.6 Suitable length of pipe： 12000mm
3.7 Welding method： Saw welding
3.8 Welding rotator loading capacity： 10T
3.9 Welding rotator walking speed： 250～2500mm/min
3.10 Welding rotator roller(D*W)： φ350*180
3.11 Welding wire diameter: φ2.5～4 mm
3.12 Welding head accurate adjusting stroke： Each 25mm to left and right

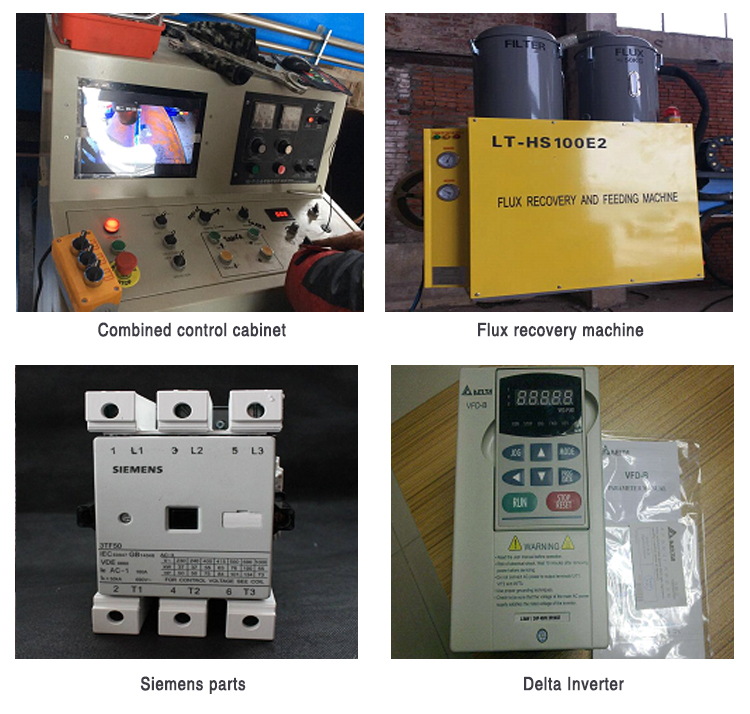

4.Main configurations for 12 meter pipe welding machine:

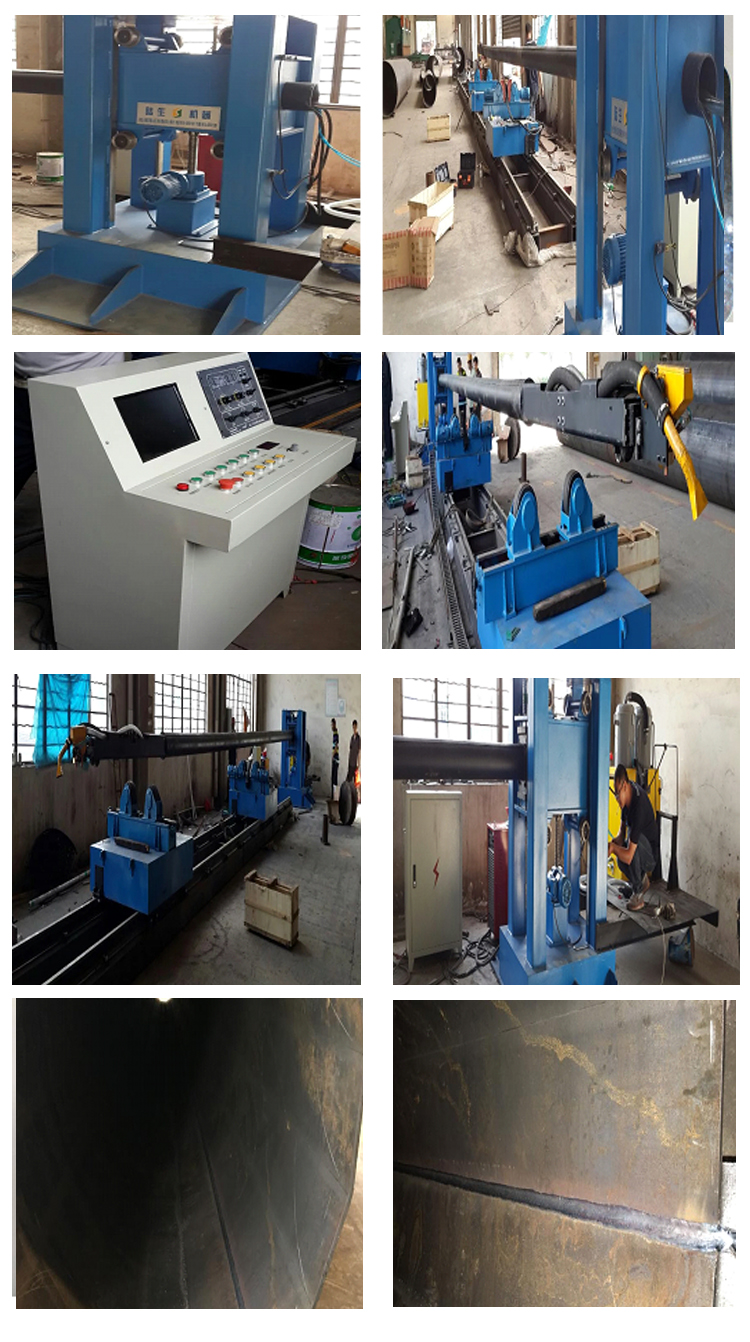

5.12 meter pipe welding machine Projects:

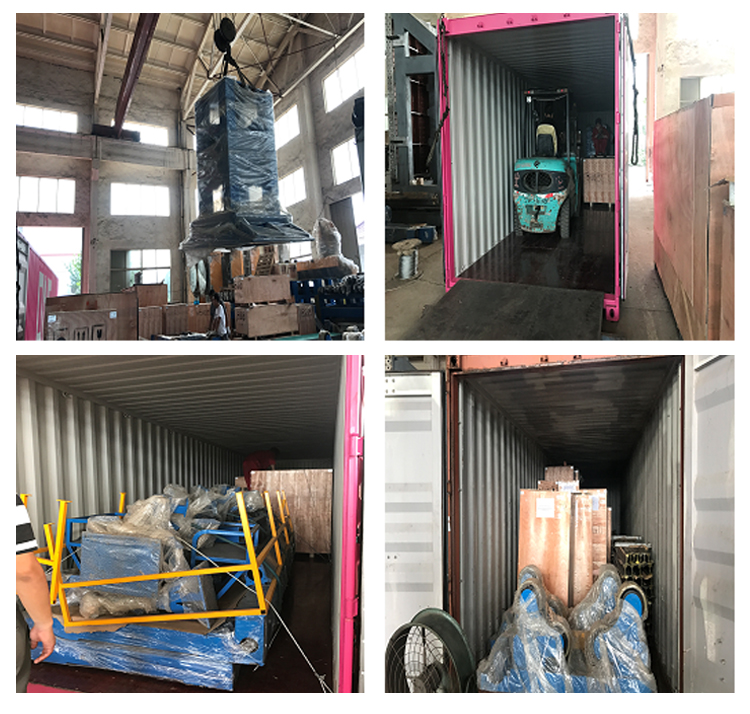

6.Packing and shipping for 12 meter pipe welding machine:
7.Our clients:
8.Our Exhibition:
9.Why choosing us:
1. We are MANUFACTURER, so we canoffer better price and after-sale service and shorter delivery date.
2.We have strong design & technical capacity,we can design and manufacture as per the customer's requirement.
3. Our factory has been approved CE certificate and ISO certificates etc
4. We have successfully exported to Europe,USA,Middle East, Southeast Asia and so on foreign countries. We all get good feedback.
5.Our product includes Welding manipulator,welding rotator,welding positioner,H beam welding lines,space frame welding machine,laser welding machine,laser cutting machinelaser cleaning machine,cnc flame plasma cutting machine,edge milling machine,face milling machine,magneticpolishing machine,Sheet metal deburring machine,thread rolling machine,bending machine,punching machine etc
6.We provide a FREE TWO YEAR WARRANTY for all our items.
7.OEM brand.
