Truck tire changer 14-26"

4 year ago
156 0
Product details

Product Overview

H84bbc5bf442b4a1fa7cb279963ba32e2o Jpg

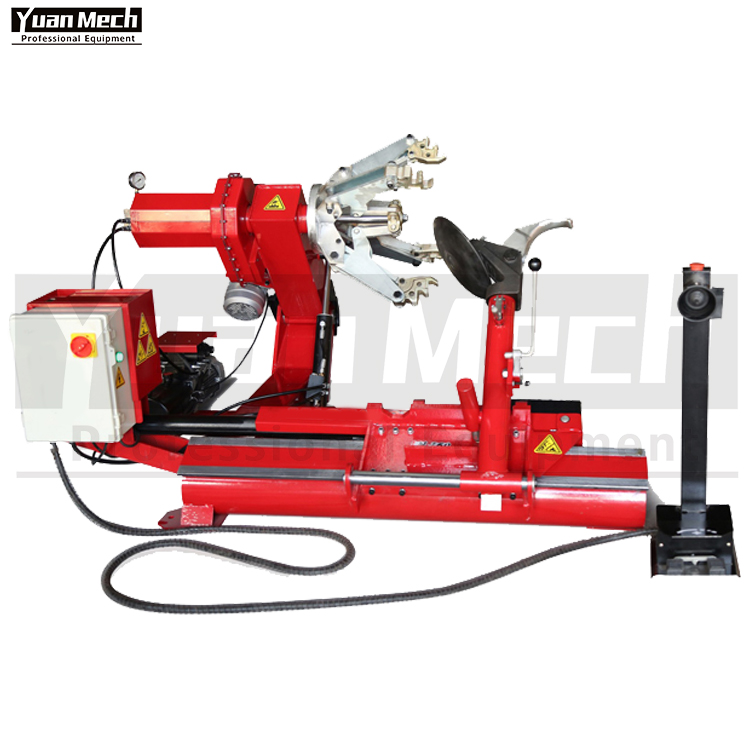

The YuanMech Truck Tire Changing Machine is built to the highest industry standards,benefiting from advanced quality control system, strong history of technological development and unparalleled industry experience.


This machine is a heavy duty, electro-hydraulic tire changer for truck and bus wheels with 14”-26” rim diameter. This is a
high-quality, economically priced machine, and designed with small-to-medium transport operations in mind.

It allows for safe and simple tire changing, is available in single or three phase options and is suitable for both steel and
alloy rims.

FEATURES AT A GLANCE

H689a67a4b2754538bd59b68359ad03ffS

* Economical electro-hydraulic tire changer for trucks, buses and tractors
* Simple design; efficient and easy to use
* Super-duty electric motor and hydraulic drive for superior torque and powerful wheel clamping.
* Self-centering hydraulic clamping chuck

* The special design of the clamping jaw can guarantee the fix of the rim
* Spreader-type jaws ensure secure clamping of rims
* Quick-positioning and lock mount/demount arm
* Hydraulic sliding carriage positions tool head for bead breaking, mounting and demounting
* Single piece frame for maximum strength and rigidity
* Portable remote console for safe machine operation and control

* Suitable for use on alloy wheels
* Full range of accessories, spares and consumables available
* The tool head and bead breaking disk can rotate to make it convenient to adjust the position to dismount/mount the tire
* The tool arm with the two position of adjustment can execute the appropriate adjustment when dismount/mount different size of tires
* The design of electrical cabinet complies with the CE certificate standard
2244

33

PRODUCT SPECIFICATIONS

No
Item
Data
1
Name
Automatic Heavy Duty Tire Machine Truck Tire Changer Equipment
2
Type
Automatic
3
Use
Truck/Bus
4
Rim diameter
14 - 26"
5
Maximum tire diameter
1600 mm
6
Maximum tire weight
500 kg
7
Maximum tire width
780 mm
8
Hydraulic oil pressure
130 bar
9
Noise
75 dB
10
Power of the gearbox motor
1.5 kW
11
Power consumption of the hydraulic motor unit
1.5 kW
12
Number of speeds
One-speed
13
Control voltage
 24 V
14
Weight
570 kg
15
Machine dimensions (W x D x H)
2100 x 1650 x 930 mm
downLoadImg

downLoadImg (1)

FAQ
Are you a manufacturer or a trading company?
We are the manufacturer with 30years experiences.
Where is your factory located?
Yingkou,Liaoning, northeast part of China.
Where is the nearest port of loading?
Dalian.

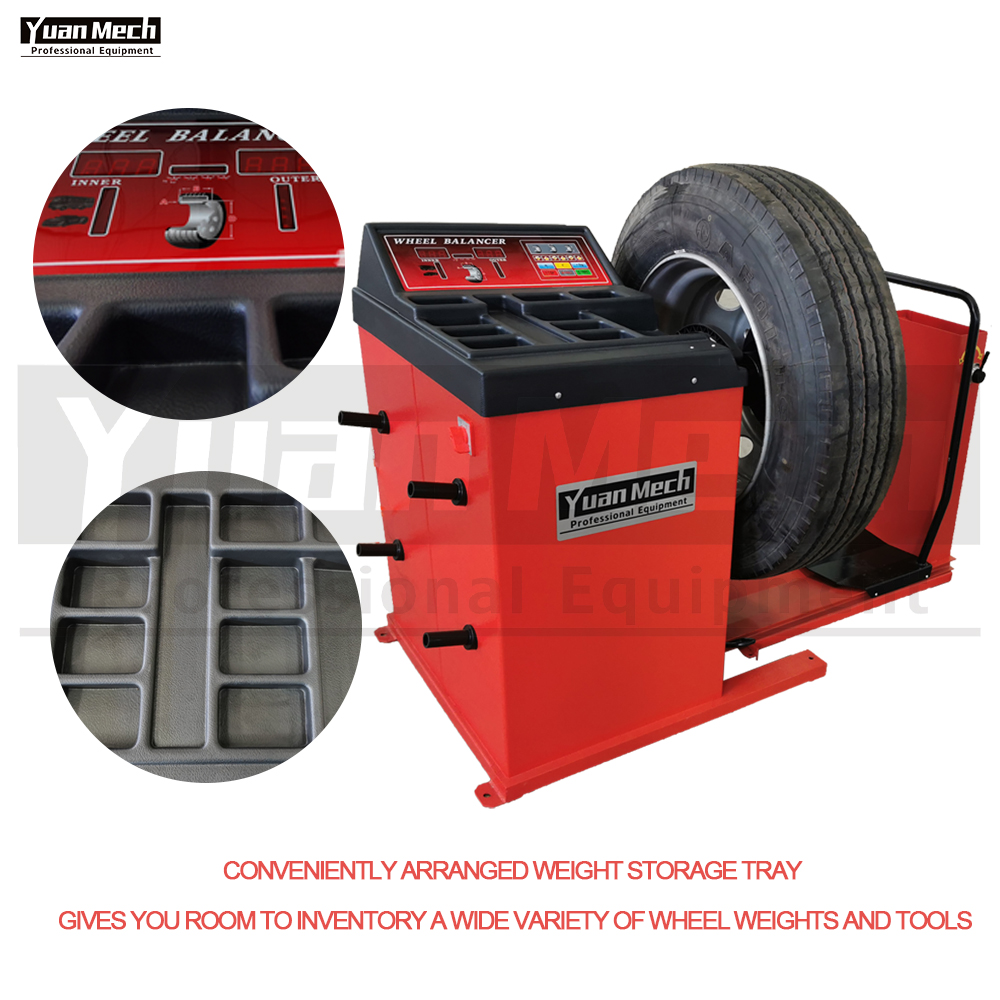

We also have tire shop tools and equipment and tire changer wheel balancer sets, welcome to consult and buy.

There are also Tire changer Accessories and Spare parts in the store,Welcome to consult.
