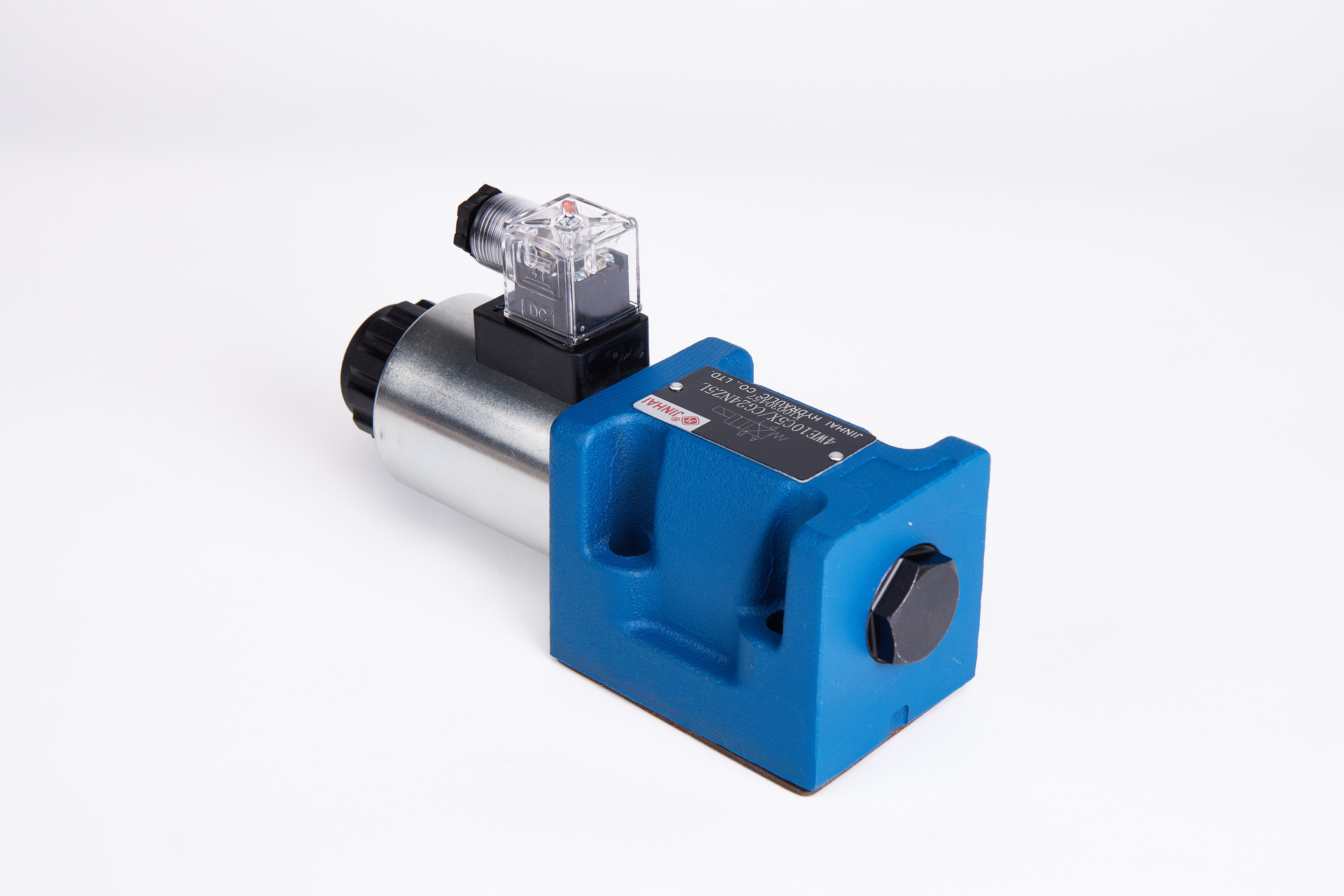

DBW20B pilot relief valve

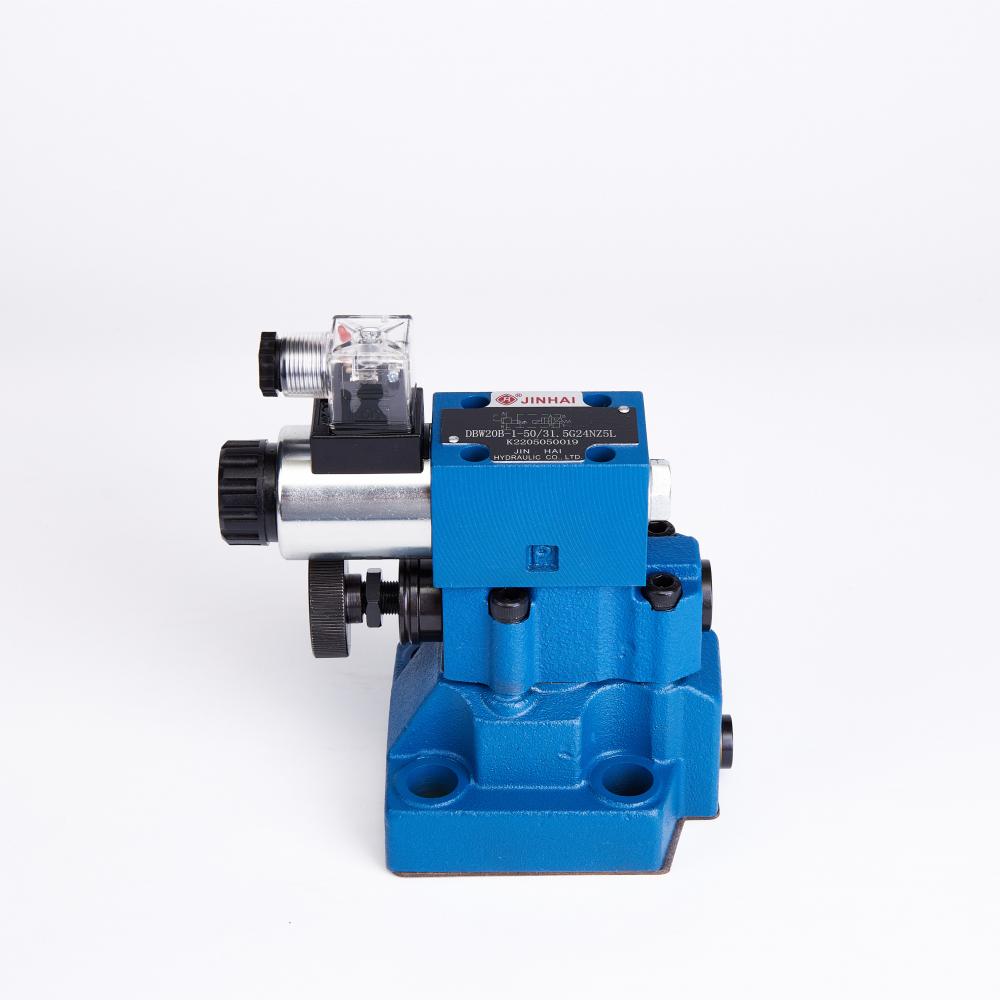

DBW20B-1-50/31.5G24NZ5L is 5X series pilot relief valve, it is belong to Pressure Control Valve.

General speaking, the function is nearly same with DB series, they are all belong to Pressure Control Valve, the difference of DBW and DB series products is that the DBW has solenoid valve, it has 5 set pressures, it operated the unloading function by above solenoid valve. The optional switching time is delayed, this character is only for DBW stype products.

These kinds of valves are used to limit DB or limited by DBW and unload the pressure of hydraulic system.

Installation way: the working holes are on the baseplate, it combined with other hydraulic components by baseplate,  it is threaded connection.

Jinhai is professional manufacturer of Various types of Directional Control Valves, Flow Control Valves, Pressure Control Valves and Accessories, Should you have any questions please feel free to come back to us.
