We have Both Protein Bar Machine and also Extruded Cereal Food  Machine(Breakfast Cereal Machine which can use corn flour to make extruded Cereal Food with crispy taste).

Protein Bar Extruding and Cutting System

The raw materials are fed into the twin-screw extruder barrel through the blades, and the raw materials are extruded by the balanced pressure of the twin-screws to become continuous strip products, and then the long protein strips are cut into protein bars by the automatic fast cutting machine at the back end. The machine can make jujube mud （dates paste）Bars, protein Bars, and other extruded bars. Paddle spiral filling, filling evenly, can be used for filling steam bread, shortbread, bread and other pasta. The filling former and forming mold can be replaced to make bars of different shapes, and the operation is convenient.

Separate Filling Machine

Extrusion machine

Model: E151

Weight: 95kg, Power: 1.32kw,,

Dimension: 660*750*1450mm,

Full stainless steel,

Functions Explanation:

1-1: Put the filling into the hopper, pass by the baffle convey automatically the filling through the screw.

1-2: Meat, vegetable, bean, fruit, jam, granular available.

1-3: Designation of dropping the filling upright adopted to decrease the damage of filling and keep traditional taste.

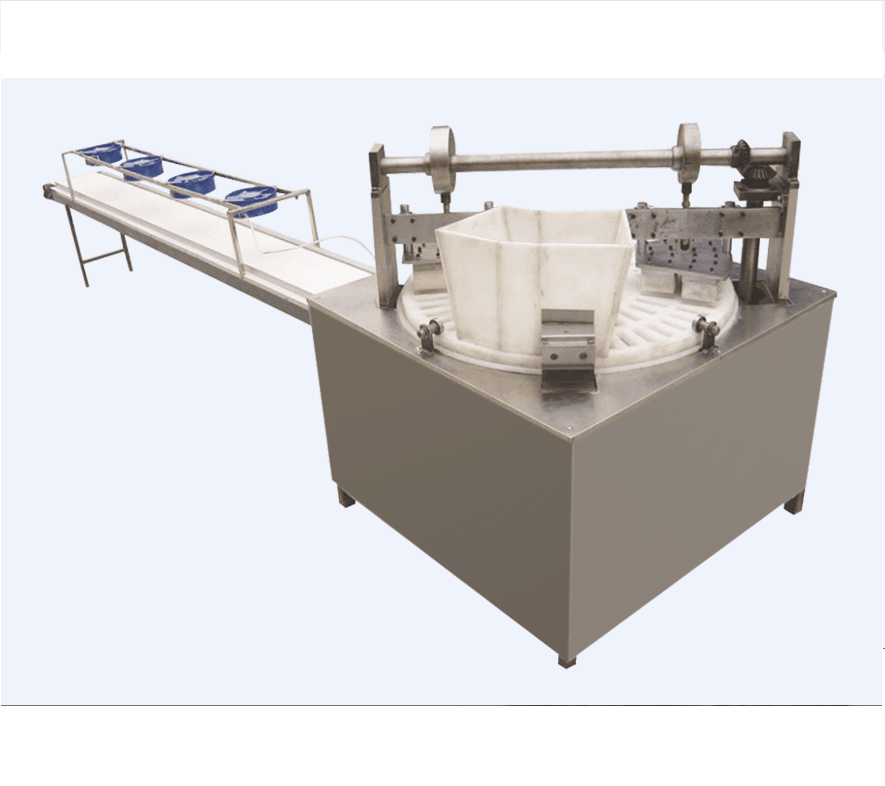

Seperate cutting machine

Model: 235A

Dimension: 2540*600*1390mm,

Weight: 180kg, Power: 2.5kw

Function Description:

2-1. Length of products can be set before running.

2-2. clutch running designed to run with a high speed to increase the capacity and keep nicety .

2-3. Users can order specific mould according to their requirements.

2-4. Safety guard designed to prevent operator from hurting.

Function: Mixing the sugar and other ingredients together to cutting.

Cooling tunnel

Length: 6 meters

Model: 6 meters cooling tunnel

Cooling type: Refrigeration Compressor.

Power:4.5 kw

Dimention:6000x600x1400mm

Range of the cooling temperature:0~5℃。

Function： To quickly cooling the products continuously, Clean, save labor, high degree of automation

Packing Machine

Model:LT-250 ,Power: 2.6kw

Film Width: Max. 250mm,

Making Bag Length:  65-190mm or 120-280mm or 90-220mm or 150-330mm,

Making Bag Width: 50-160mm,

Packed Product Thickness: Max.40 or 60mm,

Packing Speed: 40-230bags/min,

Dimension: (L*W*H)4020*770*1450mm

Double Inverters and the bag length is adjustable on the Control Panel,

Function: Using packing film, form the bag and pack each cereal bar in one bag, seal the bag and Print the date and lot number automatically.
