TECHNICAL DETAILS
Un-coiler
1. Capacity: 2 tons
2. Material: #45 steel quenched
3. Inner diameter: 410~ 580mm

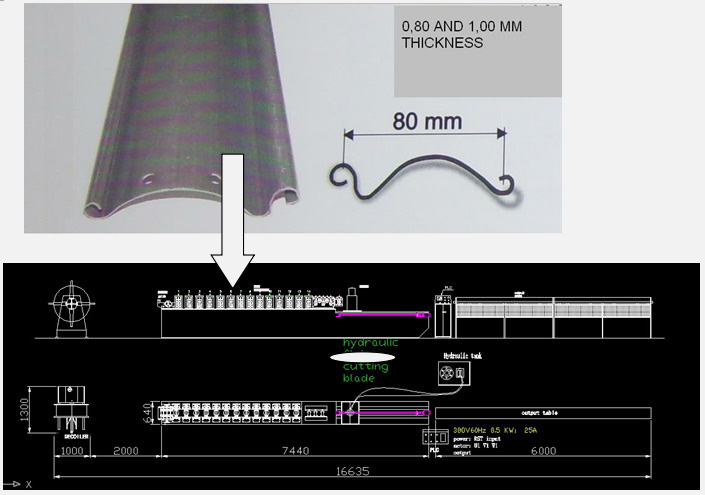

Main roll former
1. Stations: 13
2. Rollers material: CR 15; HRC 60. Chrome coated: 0.03~0.05mm. The Strength in Mpa: 70 TON, 800 MPA
3. Shaft material: Diameter: 50mm, material is #45 steel. Quenched: hot treatment. The strength of the Main Shaft in Mpa:70 tons, 650MPA
4. Bearing brand: FAG Germany
5. Main Motor: 5.5 KW, 380V, 50HZ

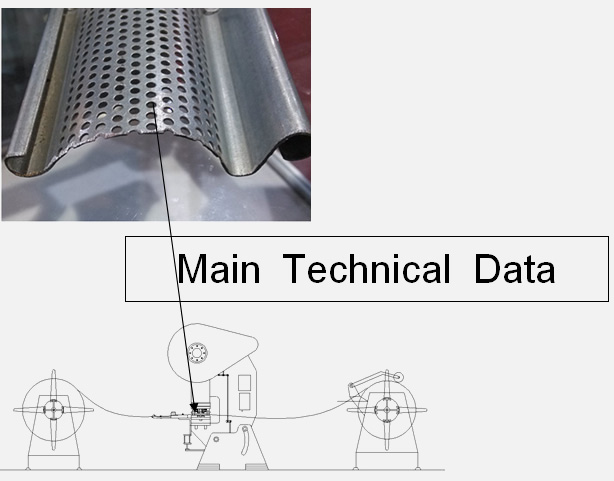

Un-coiler --Pneumatic feeder -- Micro perforation -- Re-coiler
|
1 |
Un-coiler (automatic) 2 tons |
1 |
|
2 |
Mechanical press machine |
1 |
|
3 |
Pneumatic feeder |
1 |
|
4 |
Re-coiler (automatic) |
1 |
|
5 |
Perforated mould |
1 |
Main component of the line:
|
NO. |
name |
quantity |
|
Main roll former |
|
|
|
1 |
Un-coiler (2 tons ) MANUAL |
1 |
|
2 |
roll former |
1 |
|
3 |
Hydraulic cutter |
1 |
|
4 |
PLC control cabinet |
1 |
|
5 |
Output table with rollers(6 meters) |
1 |
CHAMICAL COMPOSITION:
|
|
C |
SI |
MN |
P |
S |
CR |
NI |
CU |
MO |
AI |
V |
B |
|
Shaft |
0.450 |
0.220 |
0.540 |
0.027 |
0.008 |
0.050 |
0.020 |
0.010 |
0.000 |
0.009 |
0.000 |
0 |
|
Rollers |
1.00 |
0.32 |
0.33 |
0.011 |
0.003 |
1.49 |
0.05 |
0.00 |
0.02 |
0.041 |
|
|
|
Cutter |
1.57 |
0.34 |
0.38 |
0.022 |
0.010 |
11.10 |
0.18 |
0.14 |
0.48 |
|
|
|
|
Cut knife |
2.04 |
0.23 |
0.23 |
0.020 |
0.010 |
11.66 |
0.12 |
0.06 |
|
|
|
|
PLC Control Cabinet:
1. Touch screen brand: DELTA
2. PLC brand: DELTA
3. Inverter brand: DELTA
4. Main components for low pressure electricity: Schneider Germany
5. Encoder: Omron
Output table
1. Length: 6 meters
2. Drive type: Rollers
CUTTING PLATFORM
1. Cutting type: Hydraulic system
2. Motor: 4KW; 380V; 50HZ
3. Material of cut die: CR12MOV; Quenched; the Strength in MPA: 950
