PVC butterfly valve with Aluminium Alloy Hand Lever
4 year ago
Plastic Butterfly Valve CPVC Body Wafer Type ANSI CL150 size from 2" to 8" by lever handle, and 10" to 24" by gear box, plastic butterfly valve made by CPVC body and disc, EPDM and VITON seat seal for optional, steel and stainless steel stem available. RMI PLAST CPVC butterfly valve is used for industry pipelines for chemical mediums. it has excellent property of anti-corrosive. widely used in chlor alkali industry.
RMI PLASTIC offer Plastic Butterfly Valve CPVC Body Wafer Type ANSI CL150 with specification and features as follows
Basic specification
Size: DN50~DN200 (2 inch ~ 8 inch)
Body Material: CPVC, PVC-C
Seal material: EPDM, Viton, FPM, FKM
Wafer connection: DIN PN10; ANSI CL150; JIS 10K
Design pressure: 1.0Mpa (PN10 bar)
Feature of valve
Disc and seat that touch medium are made from plastic and rubber
Multi-hole fit for different standards connection
Valve is easy to assemble and disassemble to change damaged parts
Dry-stem are optional
Electric and pneumatic actuator mounting are available

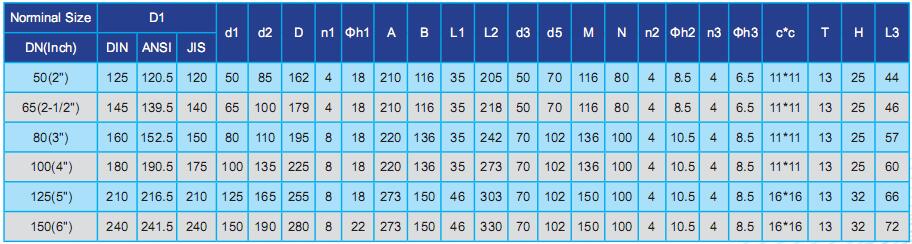

Dimension:
