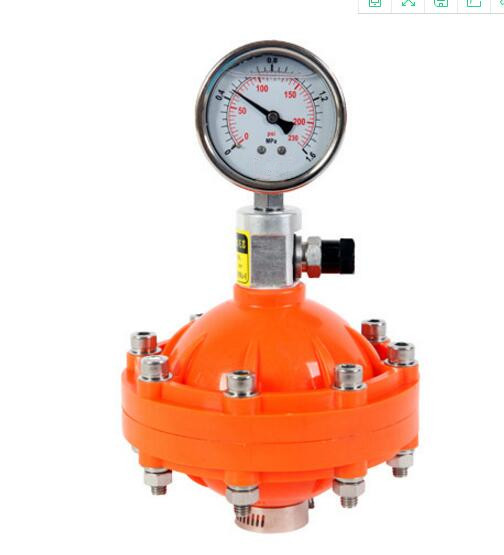

Stainless Steel Pulsation Damper
4 year ago
Stainless Steel Pulse Damper is a device for eliminating pipeline pulsation and an accessory for metering pump. PVDF Pulse Damper can smooth the pipeline pulsation and water hammer caused by metering pump, diaphragm pump. etc. The medium is isolated by a corrosion resistant diaphragm, the PP Pulse Damper is smoothed by changing of the volume of the gas chamber.
Shell Material: PVC. PP. PVDF. SS304. SS316
Diaphragm material: FPM, PTFE
Functional Characteristics
1. Reduce the harm of water hammer to the system
2. Reducing the peak value of velocity fluctuation
3. Protect pipelines and valves from pressure fluctuations
4. Improve the working environment and performance of metering pump
5. Allow the system to use smaller diameter pipe and reduce costs
6. Cooperating with back pressure valve can make the pressure fluctuation of pipeline close to zero.
7. Reducing system energy consumption

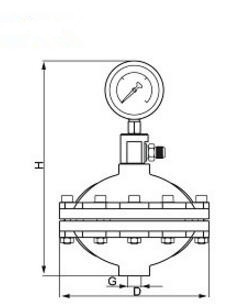

model numbe
L
H
D
SIZE
MPa
attended mode
PA166-0.35
0.35
235
Φ142
DN15
1.6
female screw thread1/2'
PA166-0.6
0.6
250
Φ174
SN20
1.6
female screw thread3/4"
PA166-1.0
1.0
310
Φ210
DN25
1.6
female screw thread1''
PA166--2.0
2.0
330
Φ280
DN32
1.6
female screw thread1 1/4"
PA166-4.0
4.0
370
Φ306
DN40
1.6
female screw thread1 1/2"
