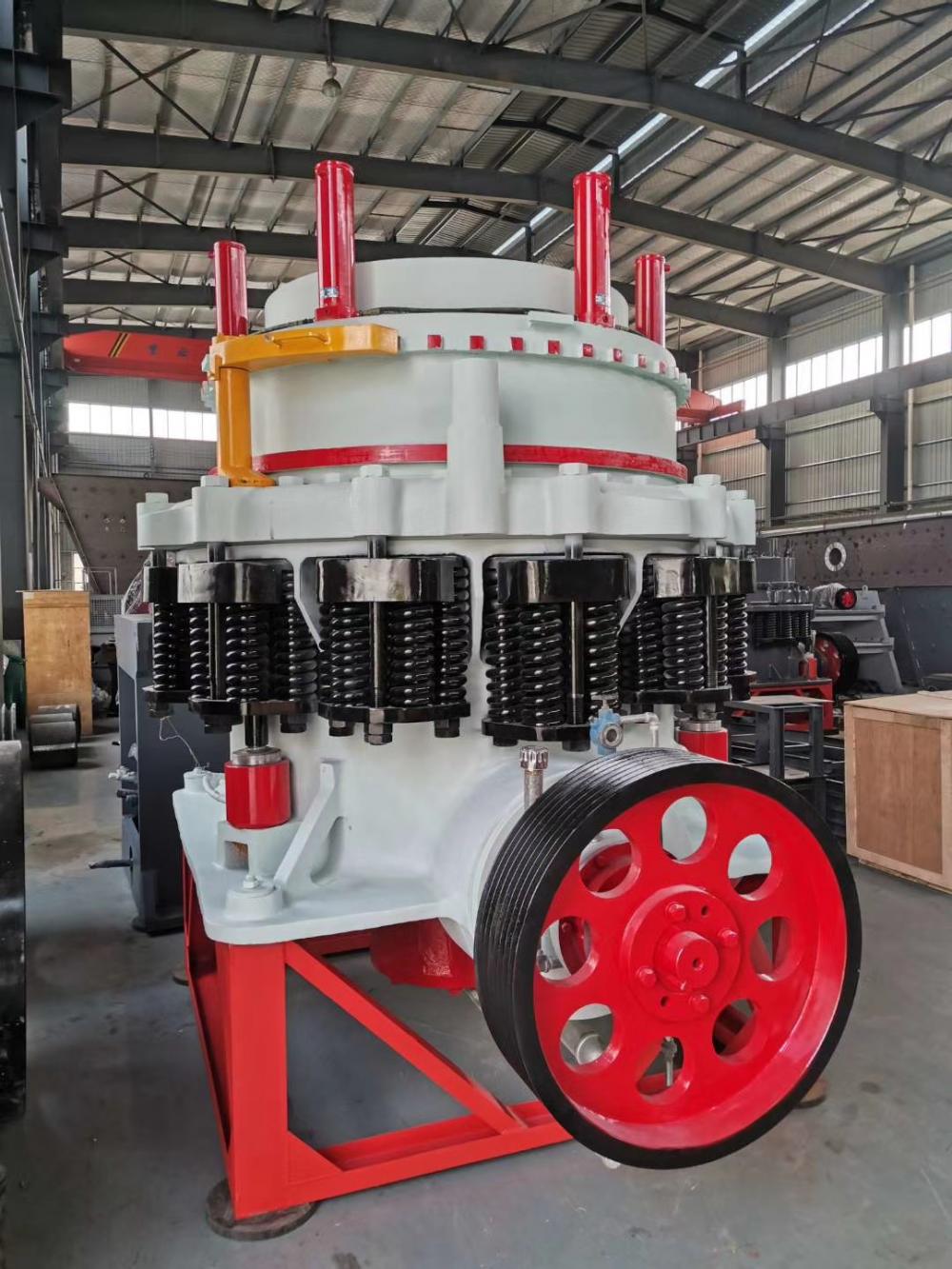

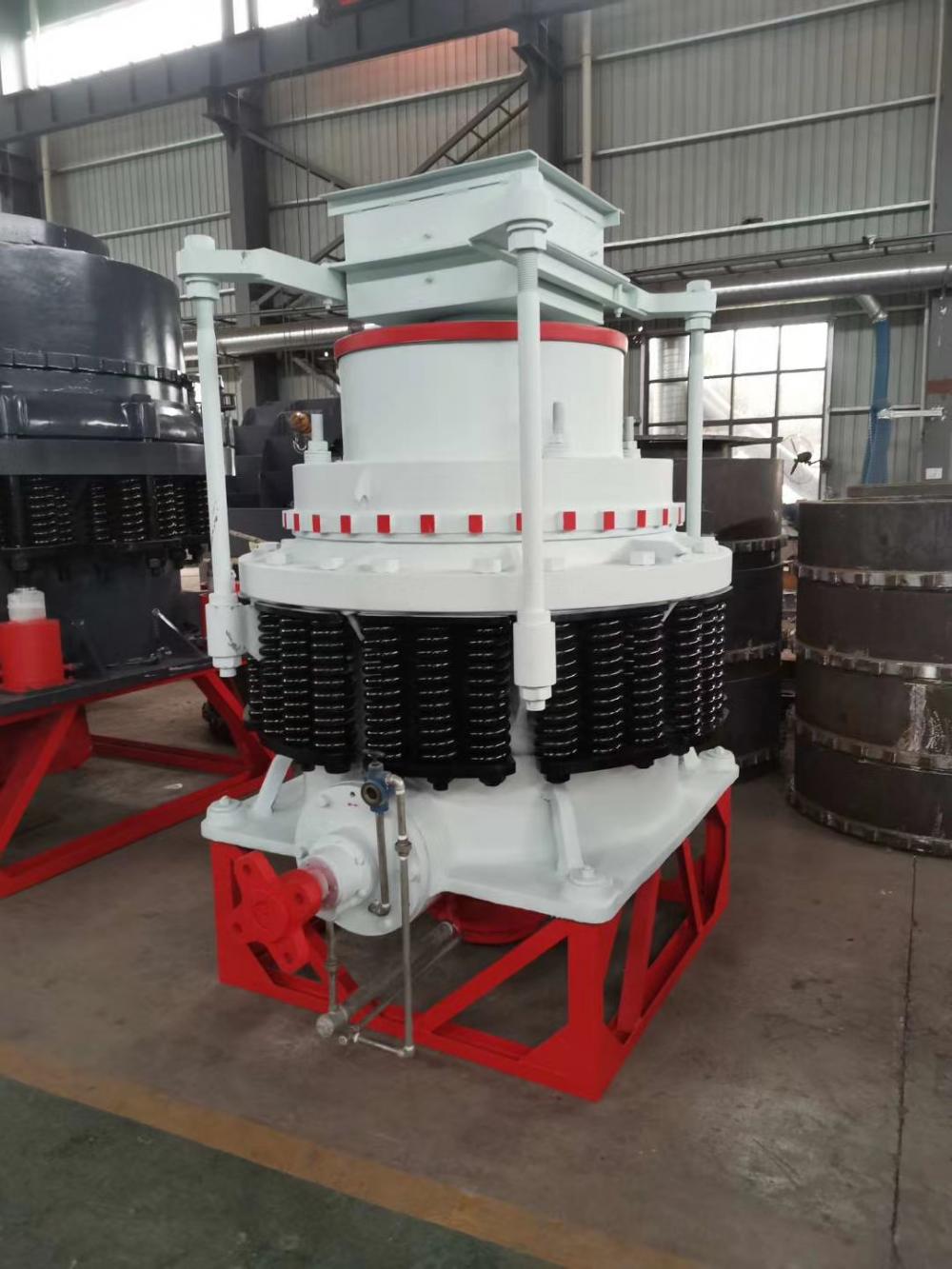

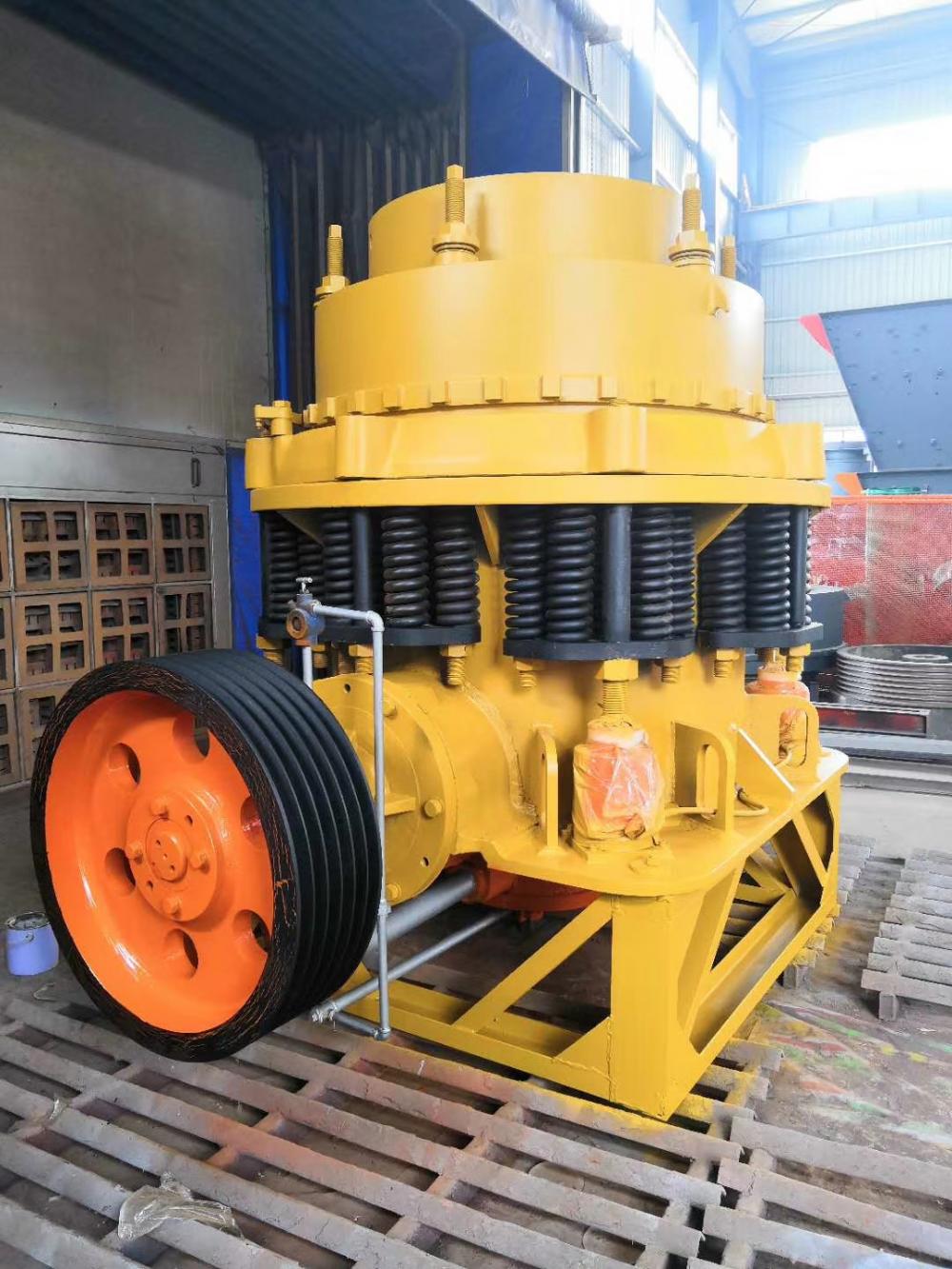

Hard stone granite spring cone crusher machine
The cone crusher is a secondary or tertiary crushing equipment used for the crushing of raw materials in metallurgy, architecture, road construction, chemistry, and silicate industry. Cone crusher is mainly used to crush the mid-hard or hard ore and rock. It can be divided into several type, Spring cone crusher, Symons cone crusher, compound cone crusher and hydraulic cone crusher.

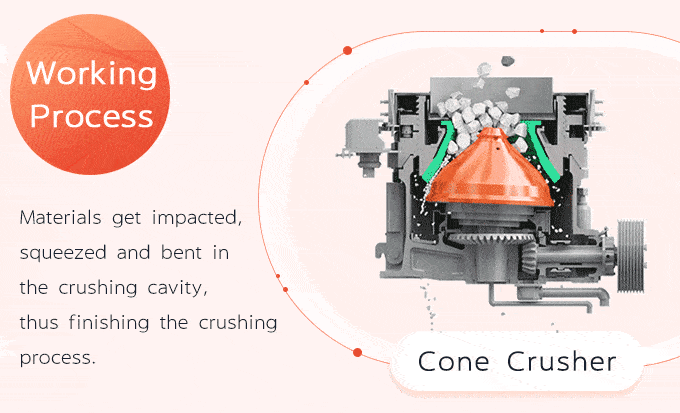

Cone crusher working principle
Cone crusher crushes materials by the working surface between the movable cone and fixed cone. The movable cone of the cone crusher is supported by spherical bearing and fixed on an hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing. The movable cone and erect shaft are drived by the eccentric shaft sleeve together. The eccentric shaft sleeve is driven by horizontal shaft and fimbriated gear, and the wheel of the conveyor belt is drived by motor through v-belts.The lower part of vertical shaft is installed in the eccentric sleeve. When the eccentric sleeve of cone crusher rotates, there is a conical surface lined out by the shaft. When the movable cone comes near the fixed cone, rocks are grinded into pieces, when the cone leaves, grinded materials is discharged from the diacharge hole.
Technical Parameters
Cone crusher advantages
Specification
Model
Diameter
of large
end of
crushing
cone
(mm)
Max.feeding
size(mm)
Width of
discharge
opening
(mm)
Processing
capacity
(t/h)
Motor
power
(kw)
Total
weight
（t）
Dimensions
(L×W×H)
（mm）
Φ600
PYB600
600
65
12-25
40
8P 30
5
2234×1370×1675
PYD600
35
3-13
12-23
5.5
2234×1370×1675
Φ900
PYB900
900
115
15-50
50-90
8P 55
11.2
2692×1640×2350
PYZ900
60
5-20
20-65
11.2
2692×1640×2350
PYD900
50
3-13
15-50
11.3
2692×1640×2350
Φ1200
PYB1200
1200
145
20-50
110-168
8P 110
24.7
2790×1878×2844
PYZ1200
100
8-25
42-135
25
2790×1878×2844
PYD1200
50
3-15
18-105
25.3
2790×1878×2844
Φ1750
PYB1750
1750
215
25-50
180-360
8P 160
50.3
3910×2894×3809
PYZ1750
185
10-30
80-210
50.3
3910×2894×3809
PYD1750
85
5-13
60-180
50.2
3910×2894×3809
Φ2200
PYB2200
2200
300
30-60
420-700
8P 280-260
80
4622×3302×4470
PYZ2200
230
10-30
130-410
80
4622×3302×4470
PYD2200
100
5-15
80-200
81.4
4622×3302×4470
1. All the main parts adopts best brands. The steel plate is from Bao Steel, China No.1 steel company. The bearing is from China famous brand ZWZ and Timken brand from Sweden. The main wearing parts cone liner and bowl liner adopt genuine Mn13Cr2 or Mn18Cr2 depending on customer requirement. The motor is China famous LUAN brand, or we can offer Siemens motor if customer requires.
2. Good product particle shape and the wear-part is very little, and the operating cost is very low.
3. High capacity and better quality
4. High output, low use-cost, compacted structure, easy operation, less maintenance and high utilization rate.
5. labyrinth sealing ensures the hydraulic oil can not be contaminated and the lubrication can be smooth.
Cone Crusher pictures
