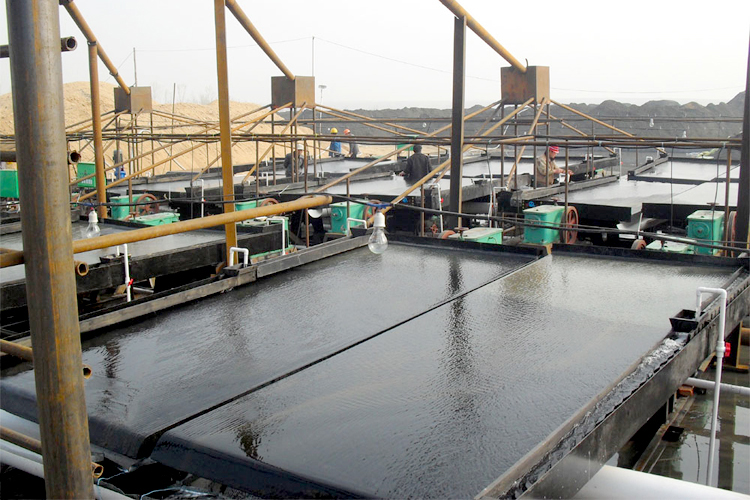

gold ore shaking table working in Sudan

Mining gold copper ore gravity shaking table separator

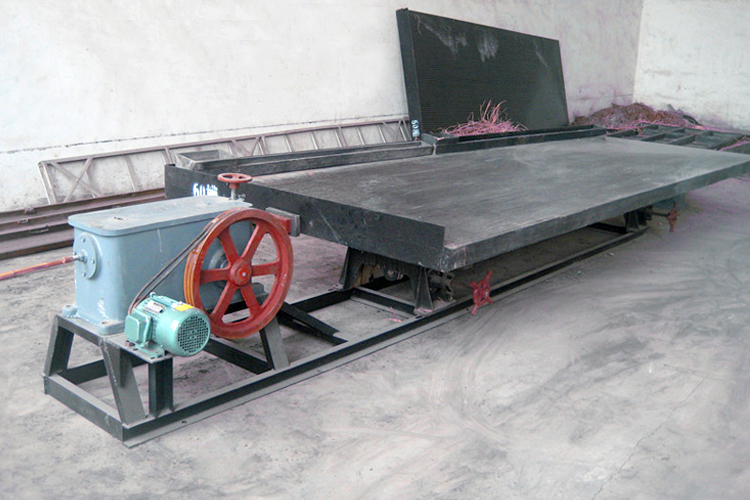

6-S type shaking table is one of the main equipment of gravity dressing in mineral processing equipment, widely used in the separation of tungsten, tin, tantalum, niobium, iron, manganese, chromium, titanium, bismuth, lead, gold and other rare metals and precious metal ore, also can be used in coal mine. It can be used for roughing, sweeping and selecting different operations, such as coarse sand (2-0.5mm), fine sand (0.5-0.074mm), and mineral mud (0.074-0.02mm), etc.

Shaking table working principle

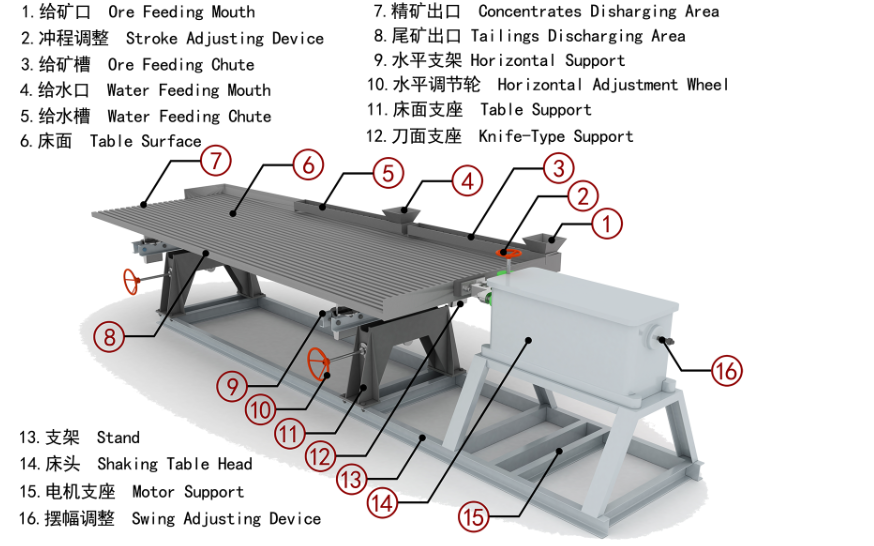

The working principle of Shaking Table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove),to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.

Shaking table specifications

1. High recovery ratio

2. High concentration ratio

3. Easy installation

4. Simple operation

5. Deck constructed of fiber glass

6. Seven different decks to   choose

7. Long working life

8. Adjustable stroke length and speed

Shaking table specifications
