Audi 360 car camera system
2 year ago

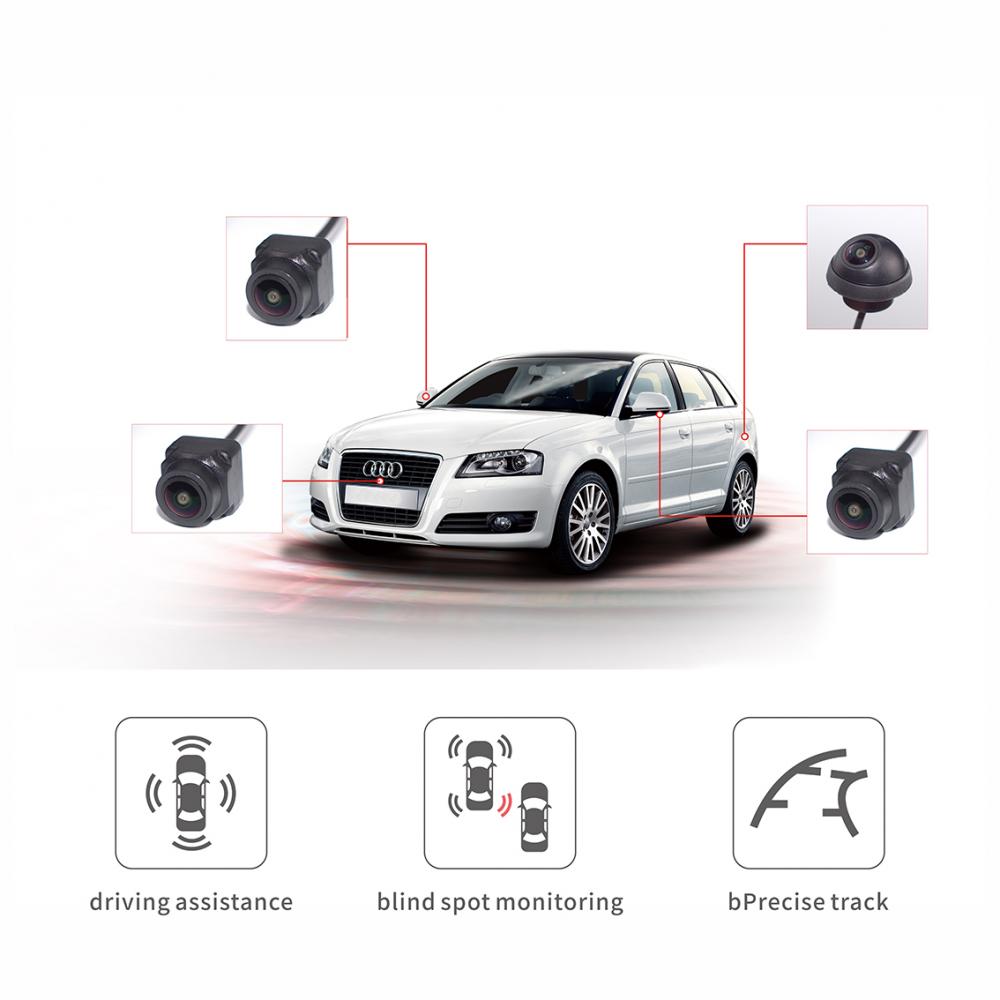

Visual driving 360 car camera system for Audi
Seven assistant driving mode:
1, 3D surround mode. After the car is started, it will automatically enter the 3D surround mode, and you can see the images around the car on the screen, and check the car surroundings, to confirm it’s safe before drive
2, Turing mode. When vehicle turn left or right, the system can automatically switch to left and right blind spot images
3, 360 panoramic reversing mode. 360 panoramic parking assist mode, turn reverse gear automatically switch to reversing screen, help you reverse
4, Width limit mode. When driving on width limit or narrow road, the distance between the vehicle body and the sides of the road section will be displayed on the left and right, and the car will not be scratched
5, Road cliff mode. When docking on road cliff, the 360 panoramic view is displayed on the screen, and the position of the tire can be clearly seen, avoid scratches
6, 3D surround display mode. Click 3D Surround (you can also turn it on by voice control) to automatically view surround the car body and display the screen at any time
7, 4 way dash cam effect. Front, rear, left, and right car camera record at the same time, and you can view and replay it at any time, making it easier to collect evidence. Automatic coverage when the memory is full, loop recording.
●Applicable models: Audi A3, A4, A7, A8, Q3, Q4, Q5, Q7… for more car camera system 360 models please contact us.
Product name: |
Audi 360 camera for car |
Main control: |
Huawei Hisilicon |
Memory: |
512M/1GB (LPDDR4) |
Storage: |
U disk |
Video input: |
4 channels AHD (720p 25fps 4ch/1080p 25fps 4ch) |
Video signal output type: |
RGB888/LVDS/CVBS |
Communication method: |
Uart (TTL3V3) |
power supply control: |
3.3V level |
Working Voltage: |
12V |
Core power consumption: |
4-6W |
Static current: |
<5mA |
System start time: |
<10 S |
Working temperature: |
-25℃~75℃ |
