WPV200 powder packing machine

2 year ago

16 0 

Shanghai WeeShine Machinery Co., Ltd.

1 min

Product details

Packing Machine 213

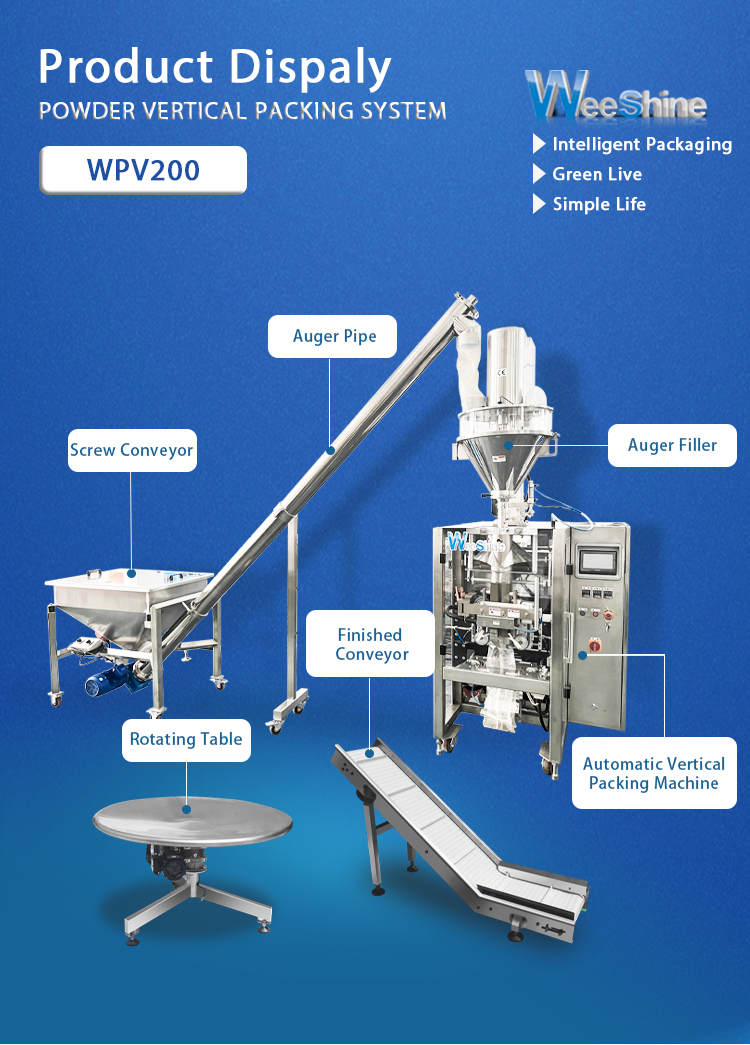

WPV200 10-1000G Automatic Vertical Powder Packaging Machine

Packing Machine 211

Packing Machine 216

Model	WPV200
Bag size	(L)80-200mm (W) 80-300mm
Film width	Max.420mm
Film thickness	0.05-0.1mm
Packing range	20-90 bags/min
Air consumption	0.65Mpa, 0.4m³/min
Power supply	220V/380V 50-60Hz
Power	4.4KW
Dimension	*L2860W2080H2950mm*
Weight	1280kgs
Packing material	All laminated film such as PET/PE, PET/AL/PE, Nylon/PE, etc.; PE (confirm when order)
We have several models. We can customize the right model for you according to your requirements. Please contact us for more information.

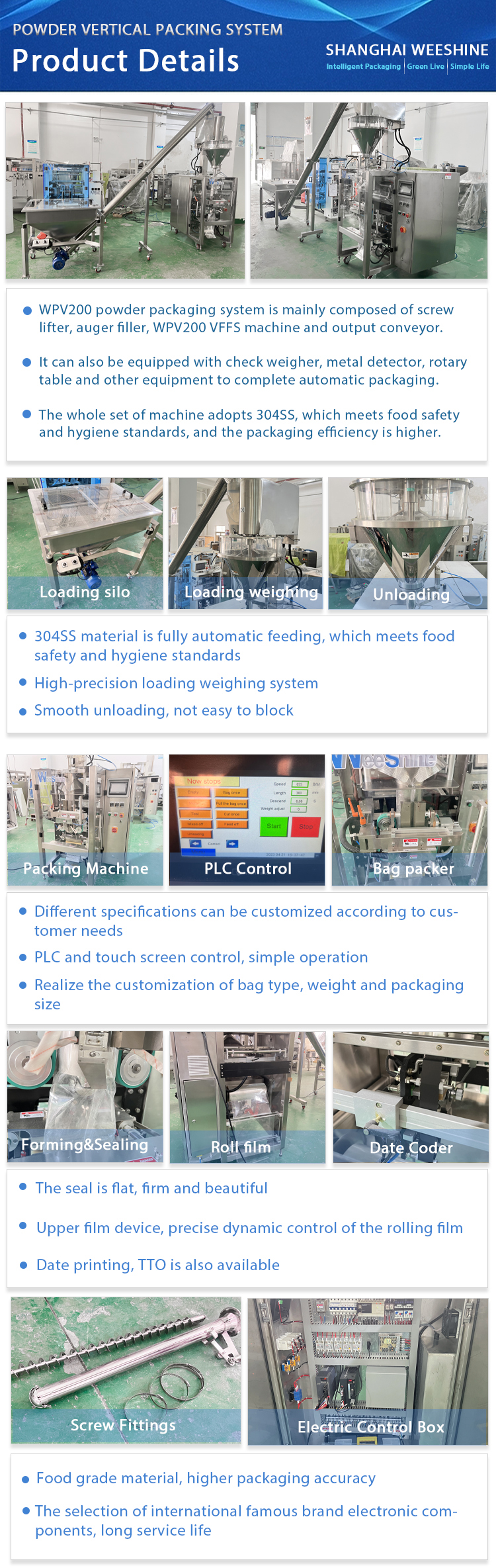

Main Features

1.Equipped with safety protection,comply with firm's safety management requires.

2. PLC and HMI controller, easy to operate and maintain.

3.Servo film pulling system,photocell accuracy cutting position.

4. Touch screen can store the technical parameters of various kinds of products.No need to reset while products changing.

5. Separate circuit boxes for power control and pneumatic control, low noise, good tightness and more stable.

6. Automatically completed products feeding,forming, filling, gas flushing (exhausting), sealing,cutting,date printing and counting.

7. Have error indicating system, helping handle the trouble immediately.
8. The device of gusseted bag, linked bag, punching device ect for optional.

Packing Machine 215

Packing Machine 217

FAQ

1. How do I know the packing machine model is suitable for my product?
Weeshine: Please advise all the below details of your product and we will check for you.
1.Product details

2.Bag shape

3. Bag size for each weight bag: Film width,bag width & bag length

4. Filling weight per bag

5.Packing film material

6. Production capacity per hour

7. Other requirements
2.How about the delivery time?

Weeshine: All our machines are tailor-made as different customers have different requirements, delivery will be within 15 working days for the small packing machines. It takes longer time for the large-scale
machine.
3.Can you offer some video or pictures of the packing machine?

Weeshine: Yes, of course. We also could help you to test your product on our packing machine and record a video for your reference if you could send some samples to us.
4. Are you factory or trading company?

Weeshine: We are the factory, and especially R&D, manufacture and sell various packing machines. We have engaged in the packing R&D and production over 20+ years.
5. How can we make sure about the machine quality after we make the payment?

Weeshine: We will send you the pictures and videos for you to check the quality, you are welcome to check the quality by yourself before shipping as well.
