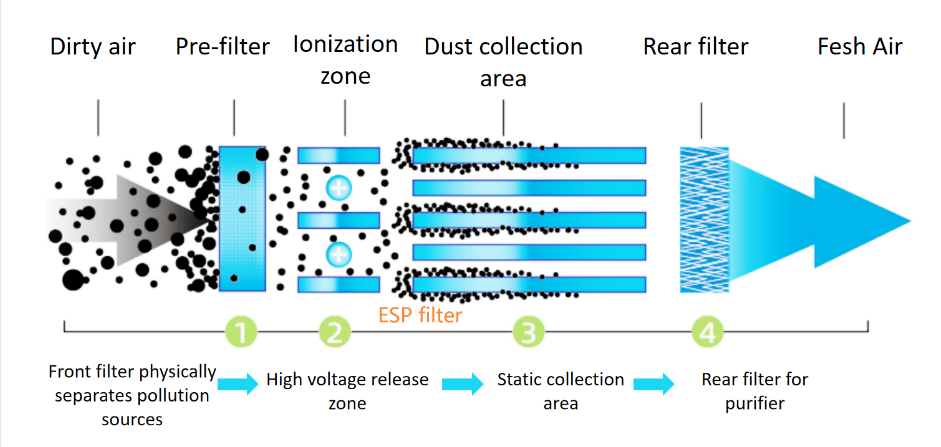

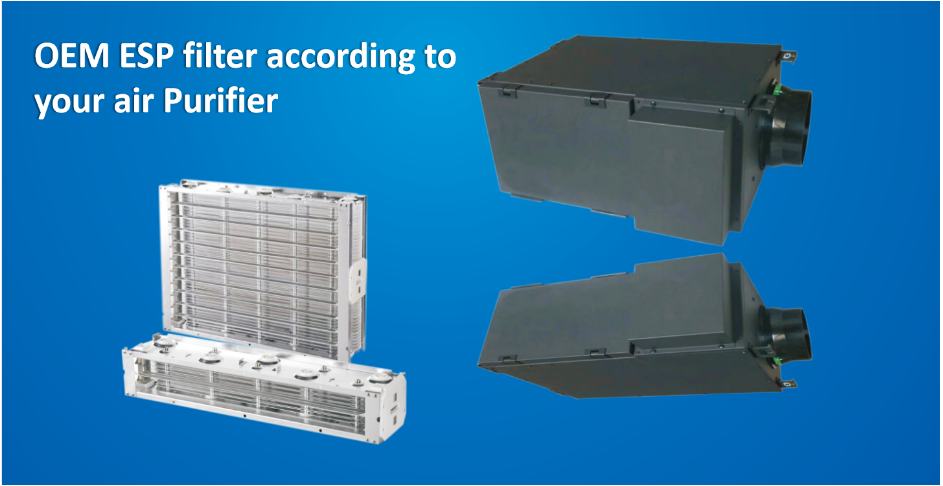

20230907130332 20230907130437 How ESP filter working for air purifier?

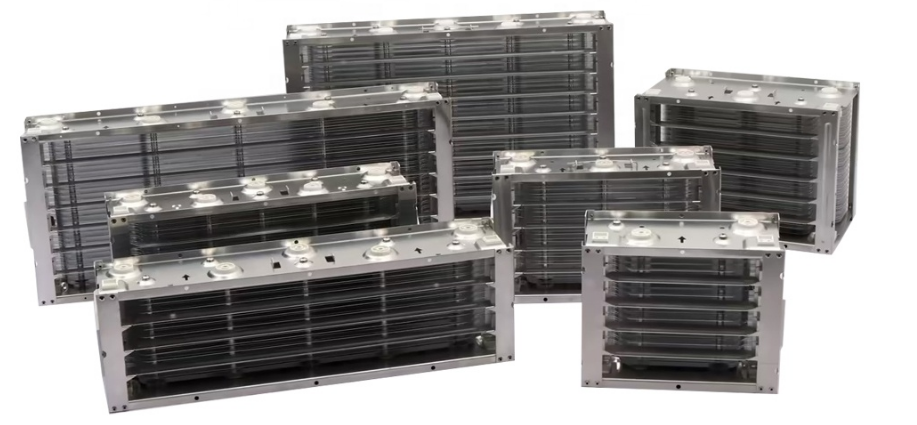

Ecohro/LiveWell environmental protection, using high and low voltage ionisation technology and aviation aluminium manufacturing ESP electrostatic dust removal module, can be quickly used in commercial air purifiers, dust collectors, kitchen fume purifiers, return air duct dust removal, can be highly efficient in cleanning dust, oil smoke, PM2.5, so that the air is fresher.

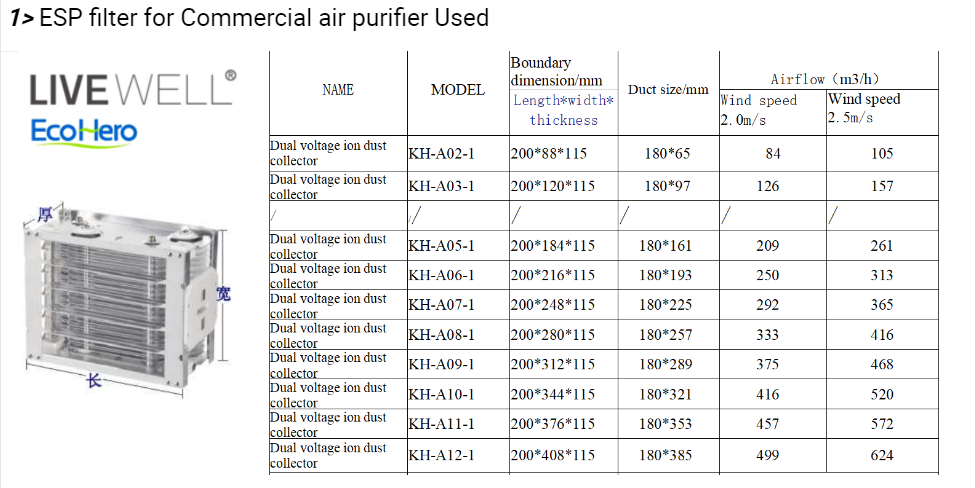

20230907130456 More Size Can be ordered at below:

Please kindly offer your detail information for inquiry differenet size of your ESP filter.

Size specification about： 20230907130529

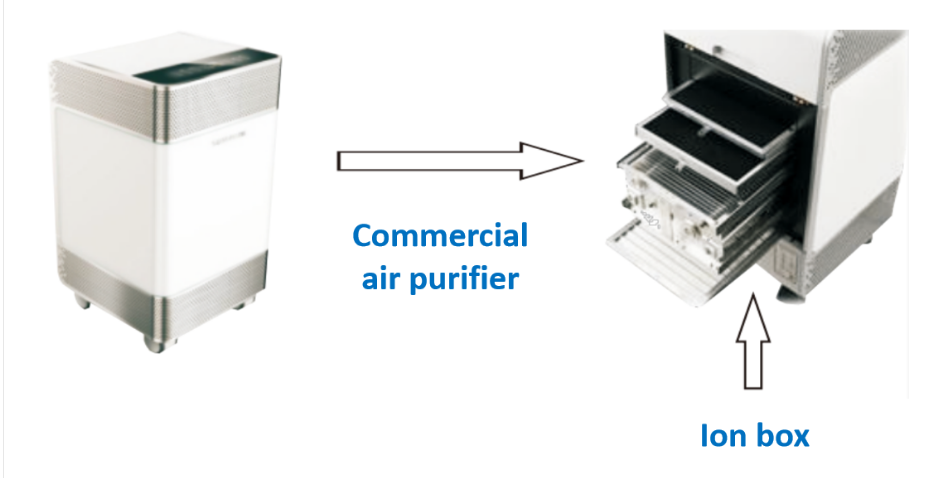

Product feature

Design and develop for office, conference room and other commercial occasions. Set dust removal, sterilization, removal of formaldehyde, voc, odor and other functions in one. Adopting a variety of consumption-free air purification technologies such as electrostatic dust removal technology, plasma catalysis technology, negative ion refreshing technology and ion sterilization technology.

The removal of PM2.5 reached 99.98%, and the decomposition efficiency of harmful volatile organic gases such as formaldehyde, toluene and xylene reached 94.1%. Ozone release concentration is 0.002ppm, 25 times lower than the national standard requirements, plug and play, life without consumables.

Application area:

Offices, conference rooms and other 30-100 m² of office and business environment 20230907130548

Size specification about：

20230907130607

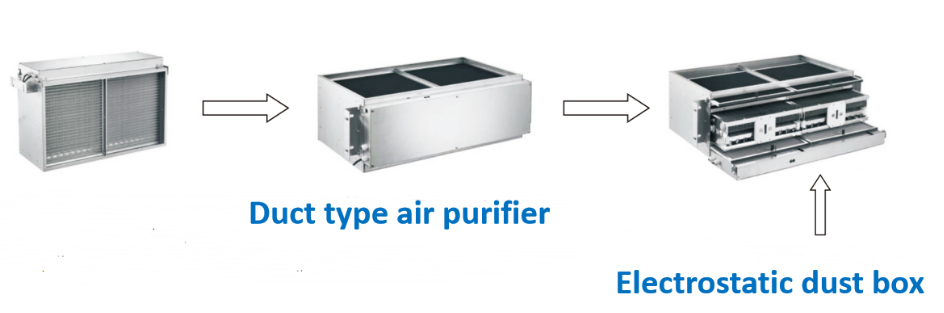

Product feature

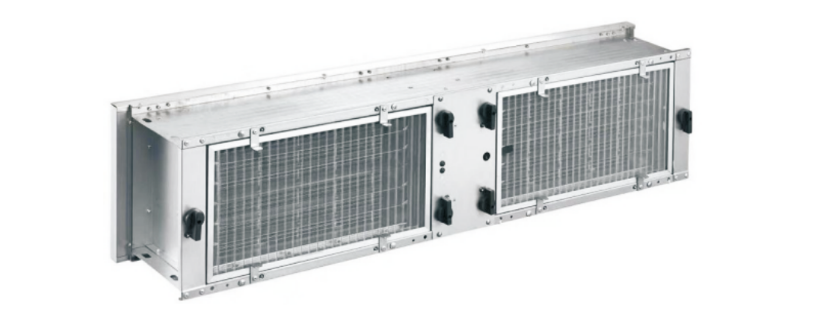

Designed for air duct installation. Sterilization, dust removal, decomposition of volatile organic gases, odor removal. Five-stage purification: initial effect filter net, electrostatic ion box, plasma catalytic net UV sterilization lamp (optional), photocatalyst net (optional). High efficiency: one-time removal efficiency of PM2.5 can reach more than 90%. Automatic purification: equipped with air flow sensor, the equipment automatically works with the wind. Fault tip: When the electrostatic dust removal box in the equipment causes the continuous arc lamp flame for 3 seconds, the equipment will automatically stop working and give an alarm, and the equipment will automatically restart 50 seconds later. Side drawer modular structure, convenient ion box cleaning. The use of electrostatic dust removal technology, plasma catalysis technology, ion sterilization technology and ultraviolet sterilization technology (optional) and other consumption-free air purification technology, products are never consumable.

Application area:

The central air purification system of the building is installed in the air duct of the central air-conditioning system or in the air inlet duct of the new fan 20230907130622

Size specification about：

20230907130646

Product feature
Special for fan coil return air outlet or air duct type central air conditioning room return air outlet, flange butt.
Five-stage purification: initial effect filter net, electrostatic ion box, plasma catalytic net UV sterilization lamp (optional),photocatalyst net (optional).
High efficiency: one-time removal efficiency of PM2.5 can reach more than 90%.
Automatic purification: equipped with air flow sensor, the equipment automatically works with the wind.
Fault tip: When the electrostatic dust removal box in the equipment causes the continuous arc lamp flame for 3 seconds, the equipment will automatically stop working and give an alarm, and the equipment will automatically restart 50 seconds later.
Front drawer modular structure, convenient ion box cleaning.
The use of electrostatic dust removal technology, plasma catalysis technology, ion sterilization technology and ultraviolet sterilization technology (optional) and other consumption-free air purification technology, products are never consumable.
Application area
The central air purification system of the building is installed at the room return air outlet or fan coil return air outlet of the central air conditioning system.

20230907130702

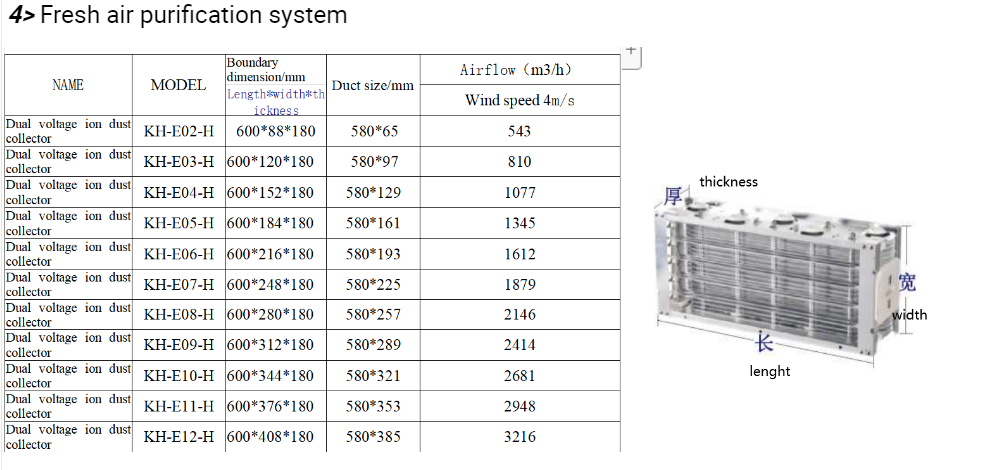

Size specification about：

20230907130717 Product feature

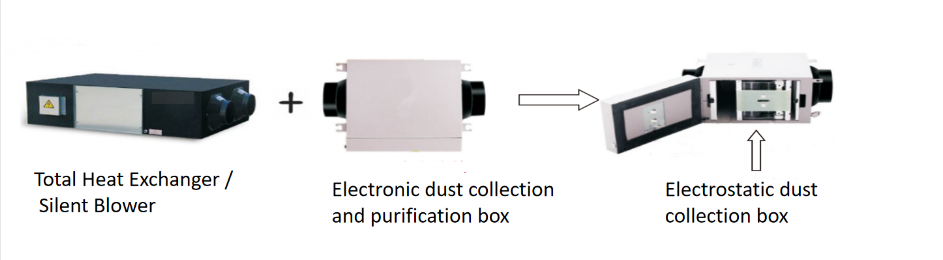

Match with the whole heat exchanger/fresh air ventilator use (introduction of clean air, protect the heat core).
Match with pipe fan/thin quiet fan use.
High efficiency: PM2.5 one-time removing efficiency can reach more than 90%.
in addition to the fog, formaldehyde,peculiar smell,sterilization.
Low consumables.
Intelligent linkage.
Application area
Fresh air purification system.

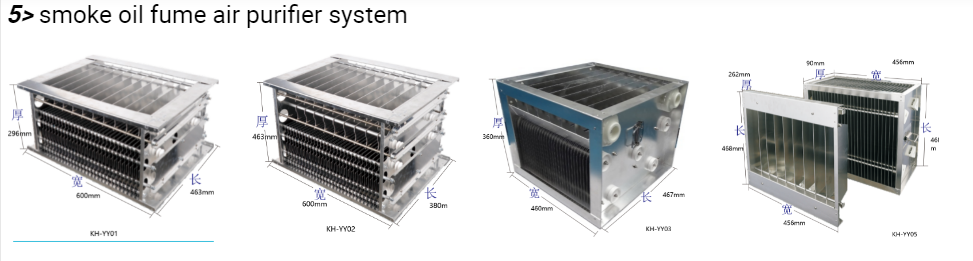

Size specification about： 20230907130747 Purification principle:

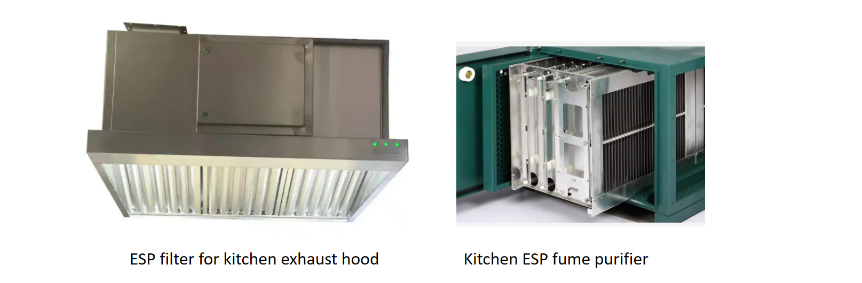

electrostatic catering fume purification equipment is the use of cathode in the high-voltage electric field (12,000V) emitted electrons, electrons collide with air molecules and the resulting negative ions to capture soot particles, so that so electric field, so that charged soot particles are adsorbed by the anode (8,000V high-voltage plate) to remove soot purposes. In the elot particles charged, and then use the role of theectric field around the soot particles in the electric field changes, so that the electric field and soot particles intersect the surface, along the electric field movement of the ions are bound to collide with the soot particles and will be charged to the soot particles; diffusion of charge is the ions in the air due to the thermal movement of the diffusion, when close to the dust particles produced by the electric force of the electric image of each other attracted to the charge of the capture. The design of the electric field so that the movement speed of soot particles is low, generally within a few seconds will be able to make the soot particles charged with enough charge, charged particles in the electric field will be subject to electric field force (Coulomb force), the result is that soot particles are adsorbed to the anode. The result is that the soot particles are adsorbed onto the anode. Therefore, the rate of soot removal is very high, and it is especially suitable for capturing soot particles with smaller particle size and lighter weight.

Application area
kitchen oil fume purifiersystem, industry fume dust & oil fume purifier system
