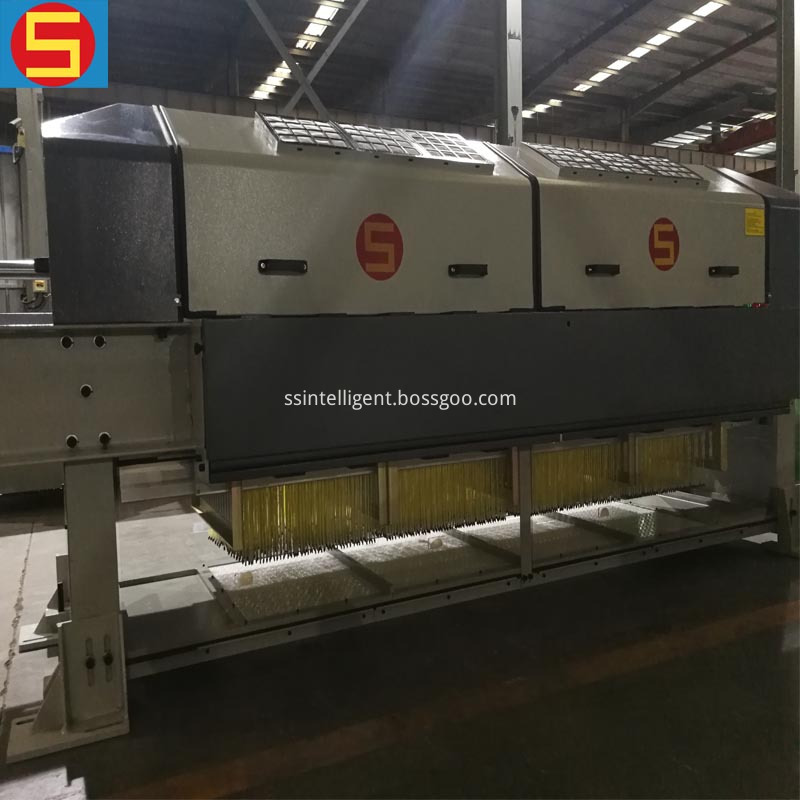

SLX 5376 cam type electronic jacquard machines are fully enclosed and have highly reliable control system. The rigid structure are fully based on cam type structure with roller bearings. Conjugate cam oil bath lubrication, all bearings permanent lubrication to ensure wear resistance, long service time. Soundless jacquard , no vibration and no hook missing. The controller supports BMP , EP and JC5 design file. Further strengthened drives and sturdy base of this digital jacquard textile weaving machinery make the machine to withstand higher loads. This computerized jacquard machine is suitable for various of weaving looms, such as rapier loom, air jet loom, water jet loom, shuttle loom, projectile loom. More characteristics as following:

Applicable to：

Rapier loom, air jet loom, water jet loom, shuttle loom, projectile loom with any reed width.

Weaving Products:

Label, tie, upholstery fabric, curtain fabric, shading fabric, sofa cloth, bedding cloth, towel, carpet, velvet, garment fabric, sari fabric, silk fabric, lining fabric etc.

Hooks:5376

Shed Opening: 55-120mm

Max Speed: 750 rpm

Advantageous Features：

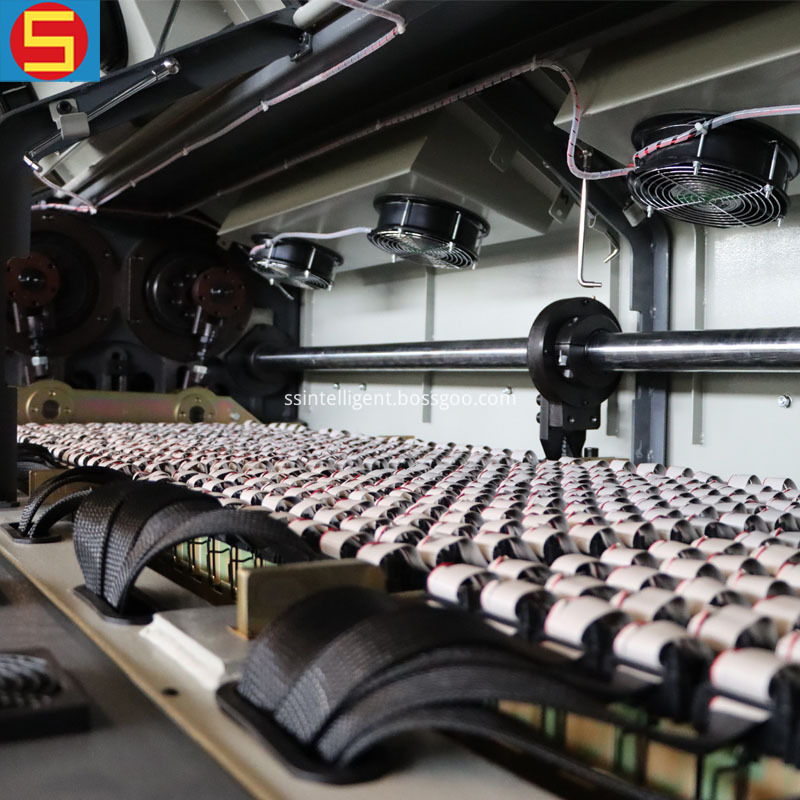

1. Sealed fuselage, optimized filtration and ventilation system of our cam type digital jacquard machines can effectively prevent flying flowers into the system.

2. The optimized shuttle opening keeps good effect. The opening curve can be designed according to the need to ensure the best weft insertion, reduce the tension on warp yarn and breaks

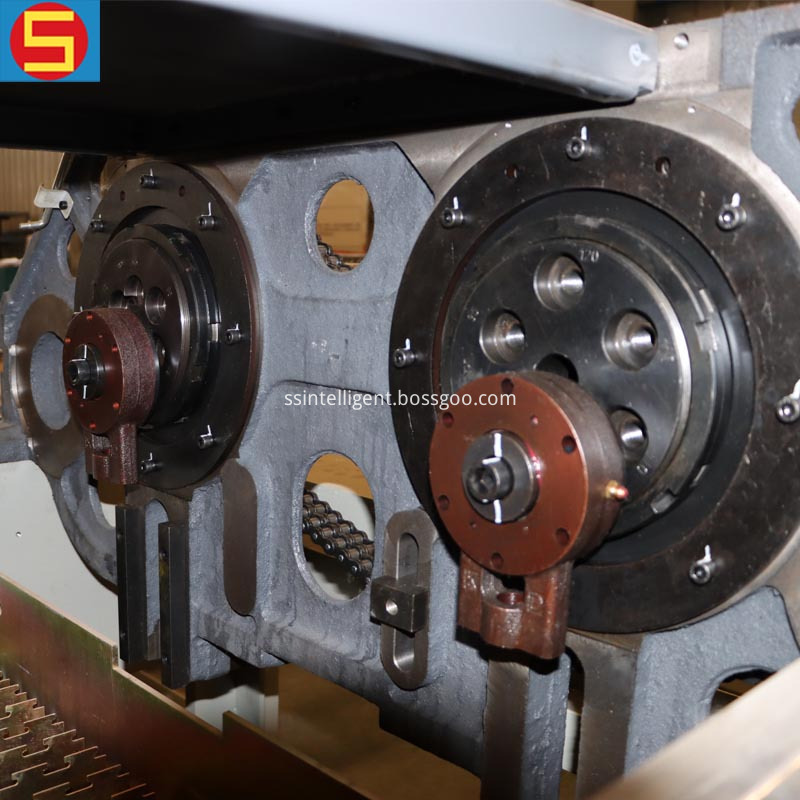

3. The self-locking characteristic of the conjugate CAM can reduce the interference to the braking performance of the loom
4. The concentrated lubrication oil hole and grease hole are easy to reach and check.
5.The small pull rod composite bearing with special filling hole, to ensure the longer service time.
