Modular Pressure Relief Valve MRV-02P
2 year ago
Application
- MRV Pressure Control Valves is usually used with a fixed displacement vane pump and used in the main circuit of the system.
Specification
| MRV | 02 | P | 1 | K | 50 | C |
|---|---|---|---|---|---|---|
| Product Series | Port Size | Control Port | Pressure Adjusting Range (Bar) | Adjusting Type | Knob Direction | Design No. |
| Modular Relief Valve | 02: 1/4" |
P: P port A: A port B: B port |
1: 8-70 2: 8-140 3: 10-250 |
K: Knob (Standard Type) |
50: B Port Side 51: A Port Side (Only for P control Port) |
|
| 03: 3/8" | 50: B port side |
Model No.
MRV-02-B-3-K-50-C, MRV-02-P-3-K-50-C, MRV-03-A-3-K-50-C, MRV-03-B-3-K-50-C, MRV-03-P-3-K-50-C
Conversion Table:
| MODEL | SIZE | ISO | CETOP | NFPA | DIN | |
|---|---|---|---|---|---|---|
| 02 | 1/4" | 6mm | ISO 03 | CETOP 3 | D03 | NG 6 |
| 03 | 3/4" | 9mm | ISO 05 | CETOP 5 | D05 | NG 10 |

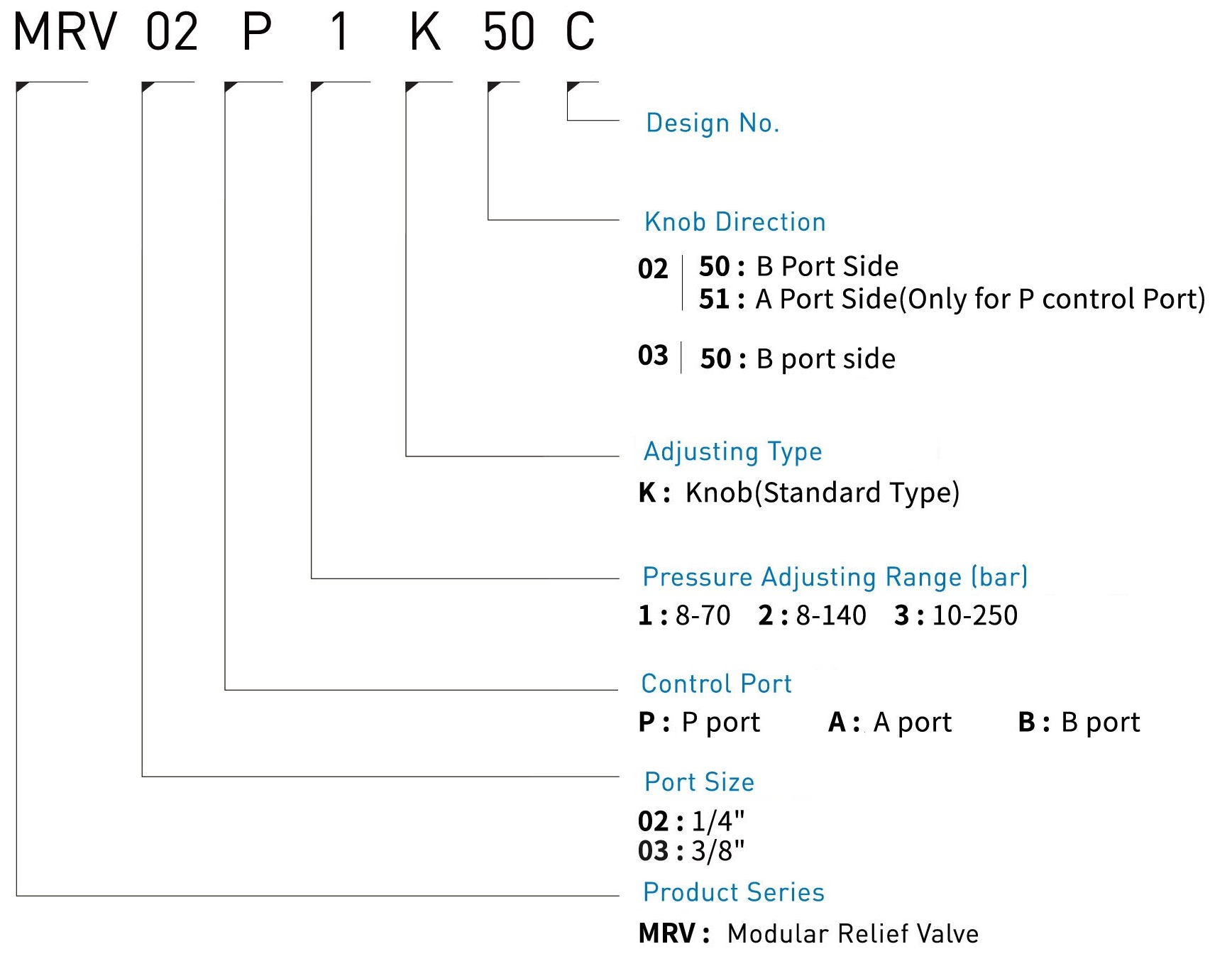

Model Code
