Classification of Aluminum Extrusion Dies

1. Classified by the section shape of the die hole compression zone

It can be divided into: flat die, conical die, flat cone die, streamlined die and double cone die, etc.,

2. Classified by the types of extruded aluminum profiles.
It can be divided into bar molds, ordinary solid profile molds, wall panel molds, variable-section profile molds, pipe molds, and hollow profile molds.

3. Classified by the number of die holes

It can be divided into single-hole die and multi-hole die;

4. Classified by the extrusion method and process characteristics
It can be divided into hot extrusion die, cold extrusion die, hydrostatic extrusion die, reverse extrusion die, continuous extrusion die, water cooling die, wide expansion die, horizontal extrusion Machine molds and vertical extrusion machine molds, etc.

5. Classified by the mold structure

It can be divided into integral mold, hollow die, removable mold, movable mold, tongue-shaped combined mold, plane split combined mold, embedded mold, fork mold, front mold, protective mold, etc.

6. Classified by the shape and structure of the mold

It can be divided into a cone mold with an inverted cone, a cylindrical mold with a boss, a cone mold with a positive cone, a conical-middle cone ring mold with an inverted cone, and an inverted cone mold. Cylindrical-conical molds for cones, reinforced molds, etc.

Advantages of Aluminum Extrusion Dies

1.  The extrusion method can not only produce rods, pipes and other products with simple cross-sectional shapes, but also hollow and solid products with complex cross-sectional shapes.

2. The production flexibility of the extrusion method is very large. Products with different shapes and sizes can be produced only by changing the mold. The mold replacement time is short and the production efficiency is high, which is of great significance for the production scale of small batches.

3. The dimensional accuracy of extruded products is far better than that of rolling and die forging, and the surface roughness is better, so it can be processed without processing and become a finished product.

4.  The mechanical properties of extrusion products are good, especially for aluminum and aluminum alloy products, the extrusion effect is that after quenching or aging, the longitudinal properties of the products are higher than those of rolling and die forging.

5. Compared with rolling, extrusion equipment has compact structure, less land occupation, less infrastructure cost, simple operation and easy maintenance.

6. It is easy to realize semi-automation or automation.

JIELIWEI has been providing aluminium profile mould for clients at home and abroad. With extraordinary craftsmanship and competitive price in this trade, more and more clients established long-term cooperative relationships with us.
If you are looking for Architectural Aluminum Profile Mold, Decorative Aluminum Profile Mold, Industrial Aluminum Profile Molds, Curtain Wall Aluminium Profile Extrusion Dies,Lighting Material Aluminium Profile Extrusion Dies, Roller Shutter Aluminium Profile Extrusion Dies..., Jieliwei is the perfect extrusion mold supplier for you!

Structure of Aluminium Extrusion -Hollow Mold and Solid Mold

Aluminum profile extrusion dies can be divided into solid dies and hollow dies according to the shape of the extrusion section, and hollow dies can be divided into single-hole dies and multi-hole dies.

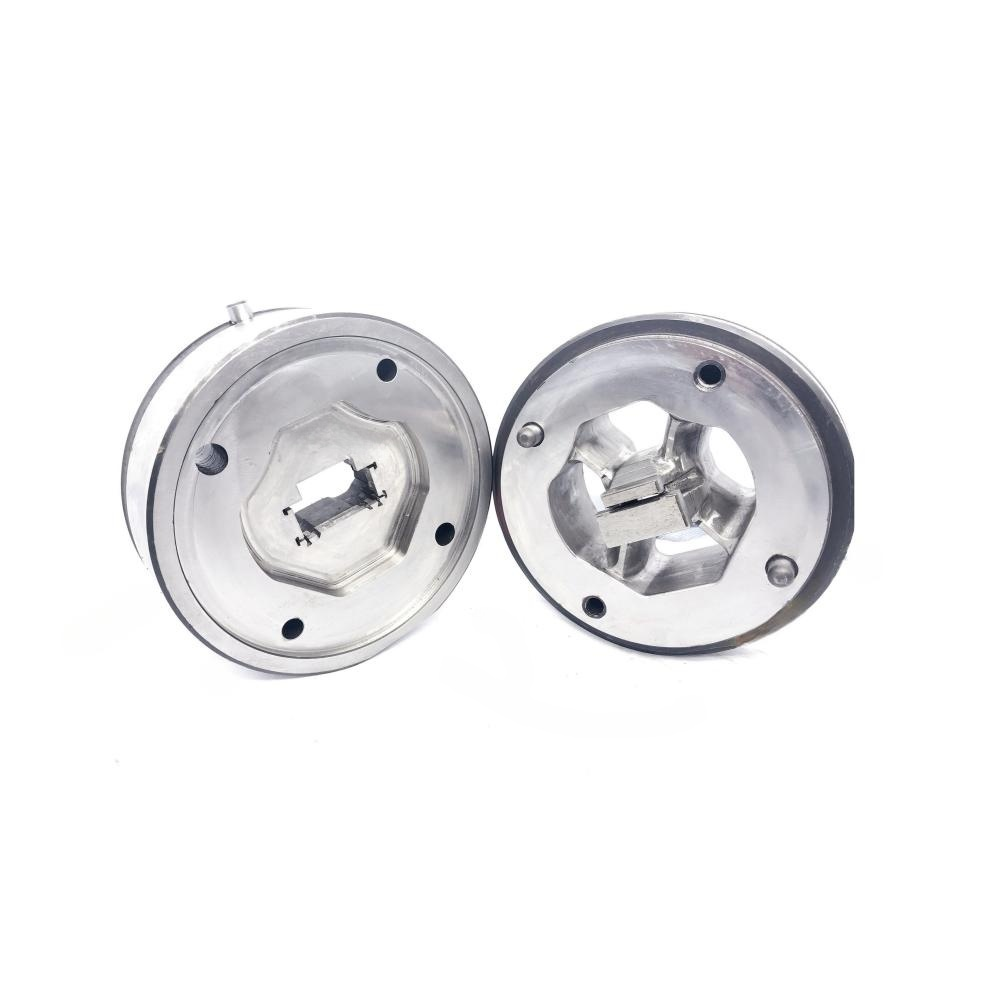

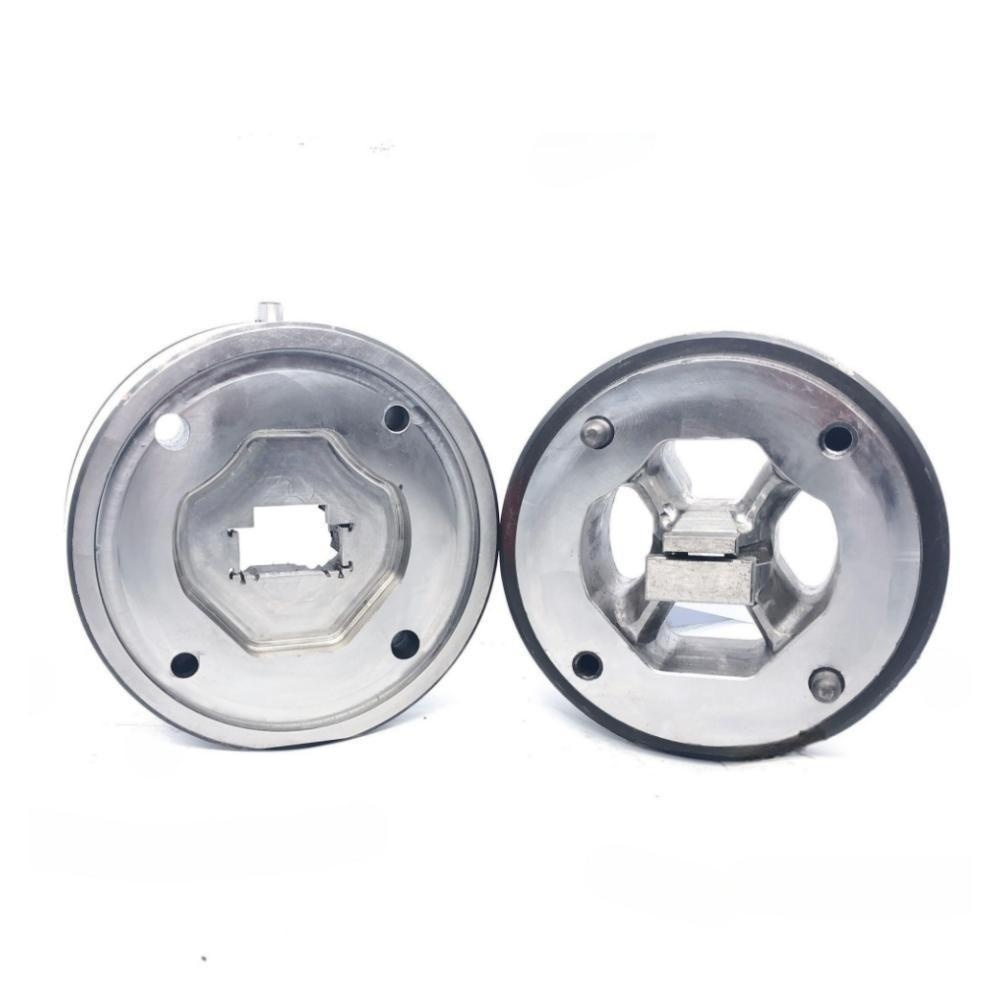

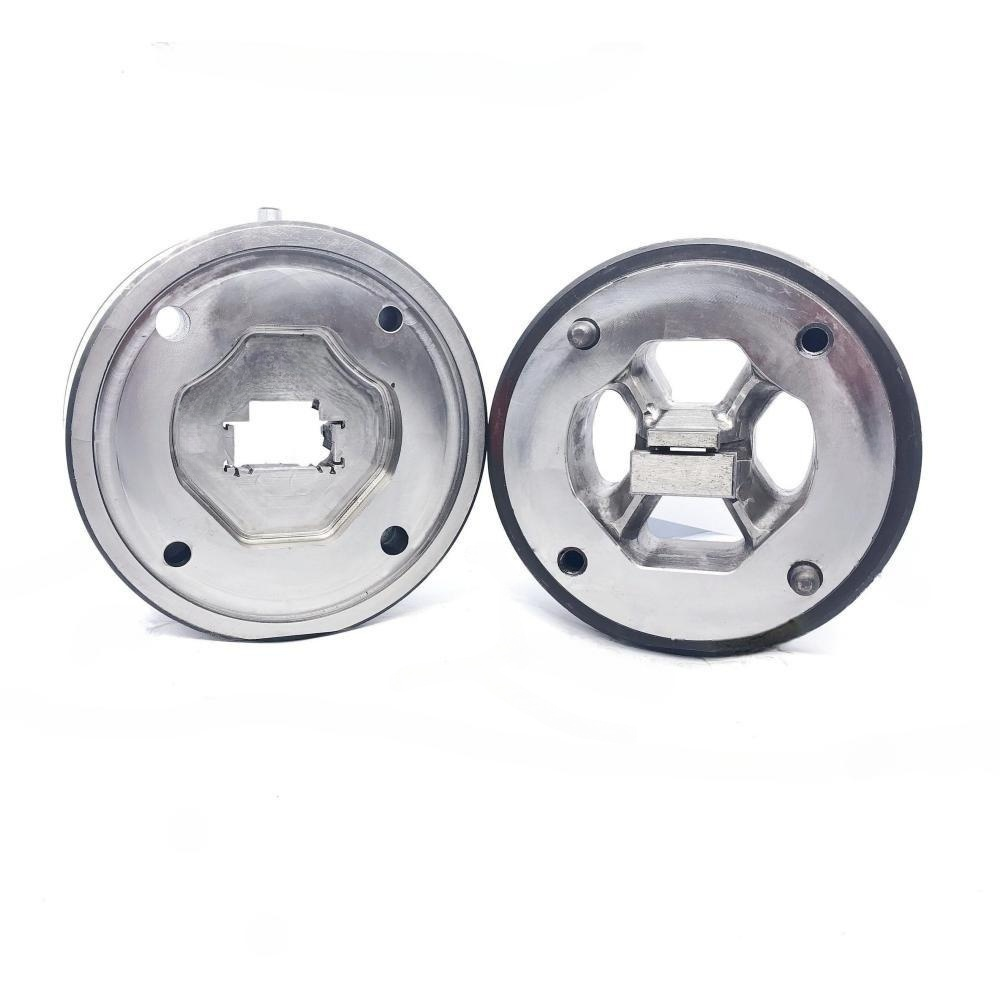

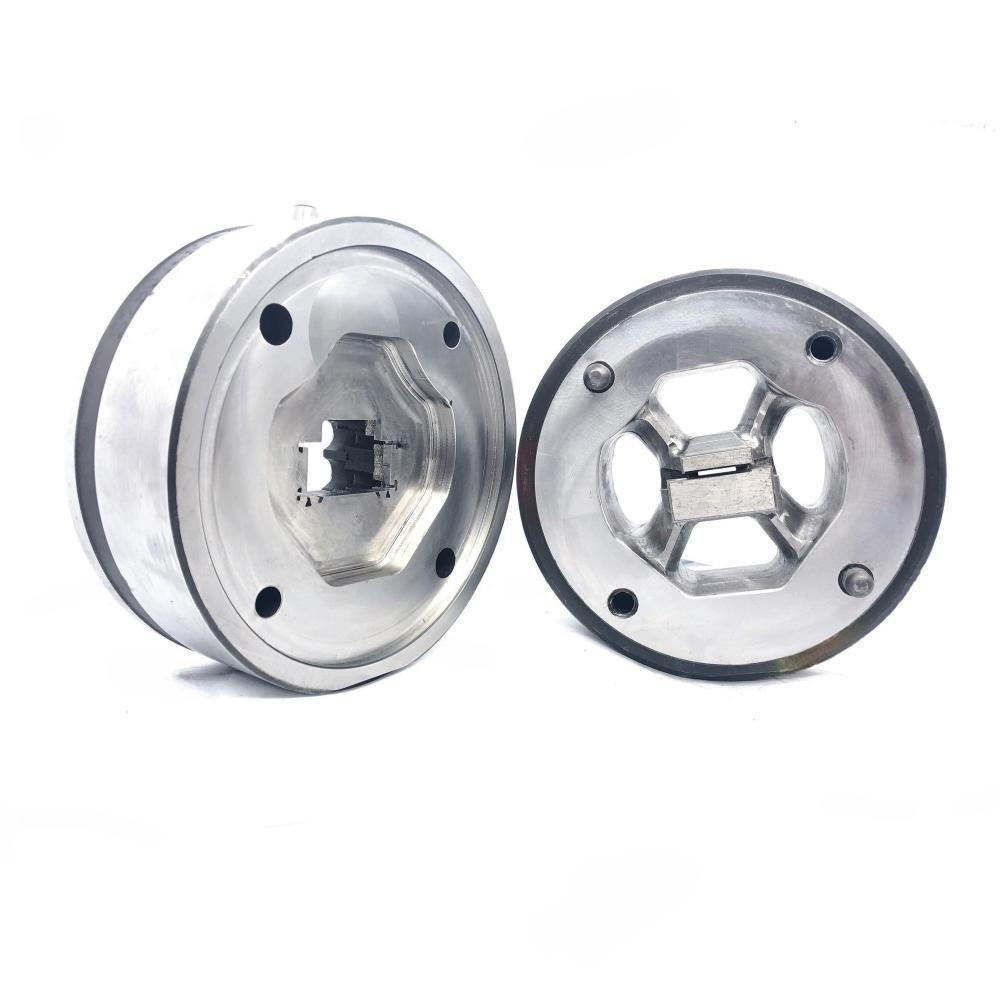

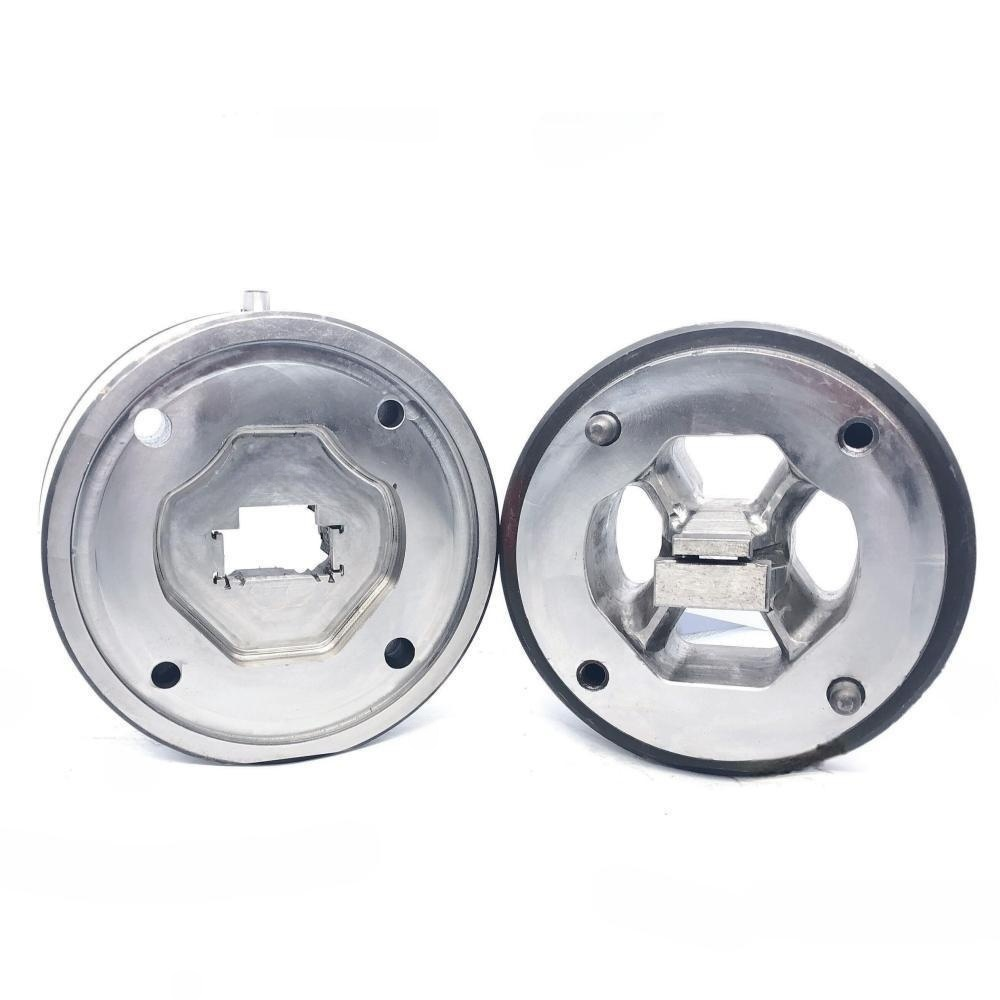

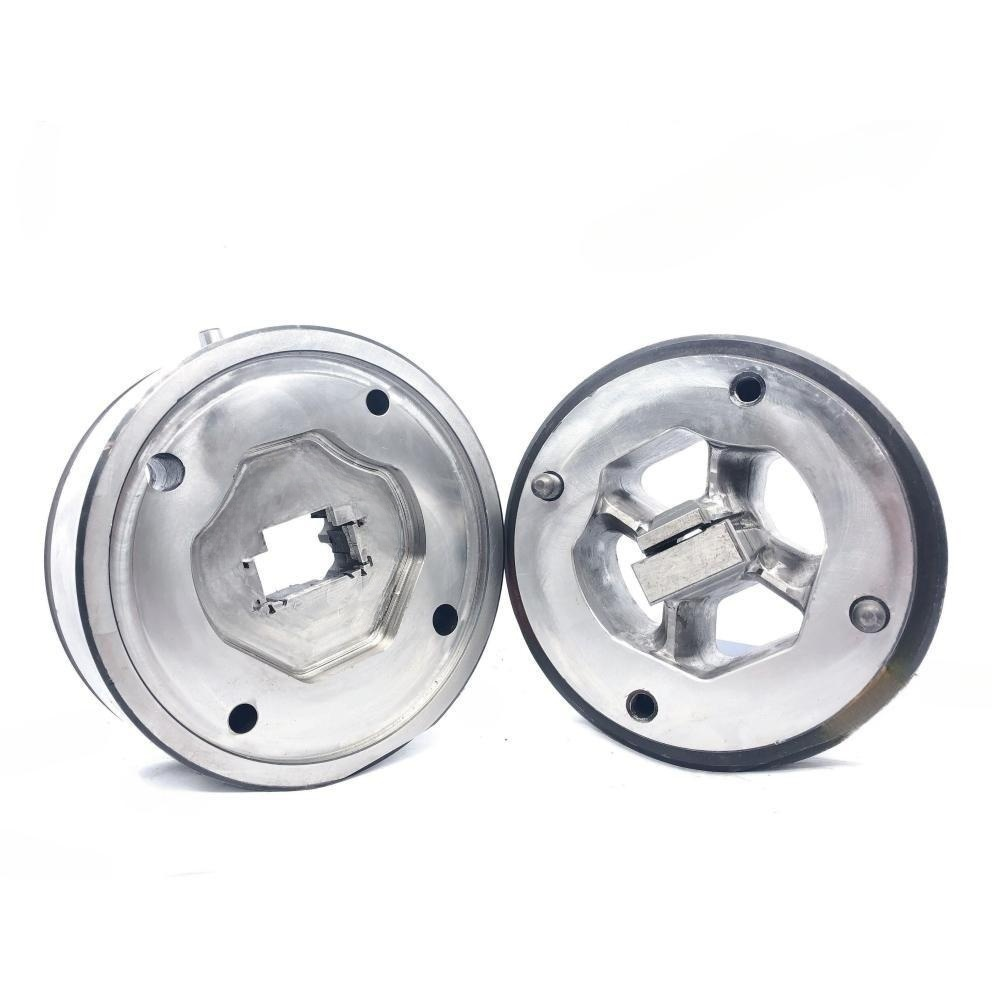

Hollow mold: It consists of two parts, the upper mold and the lower mold.

The general function of the upper mold is to guide the flow and position the hollow part of the hollow profile.

The lower mold is the outer surface working belt and empty knife.

Solid mold: Only one piece of mold including flow guide and working belt.
