Product details

Item		Specification	Unit	Remark

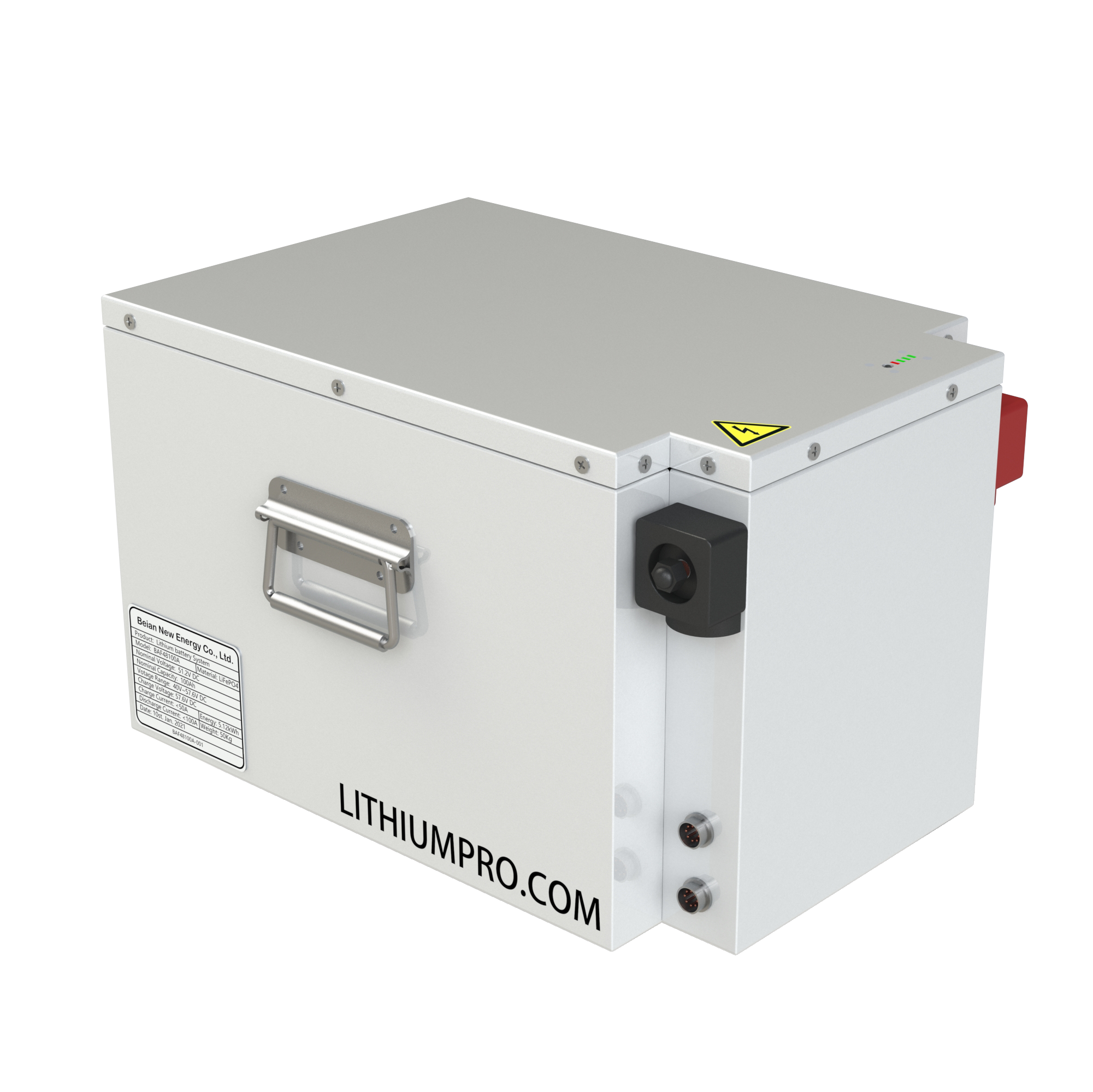

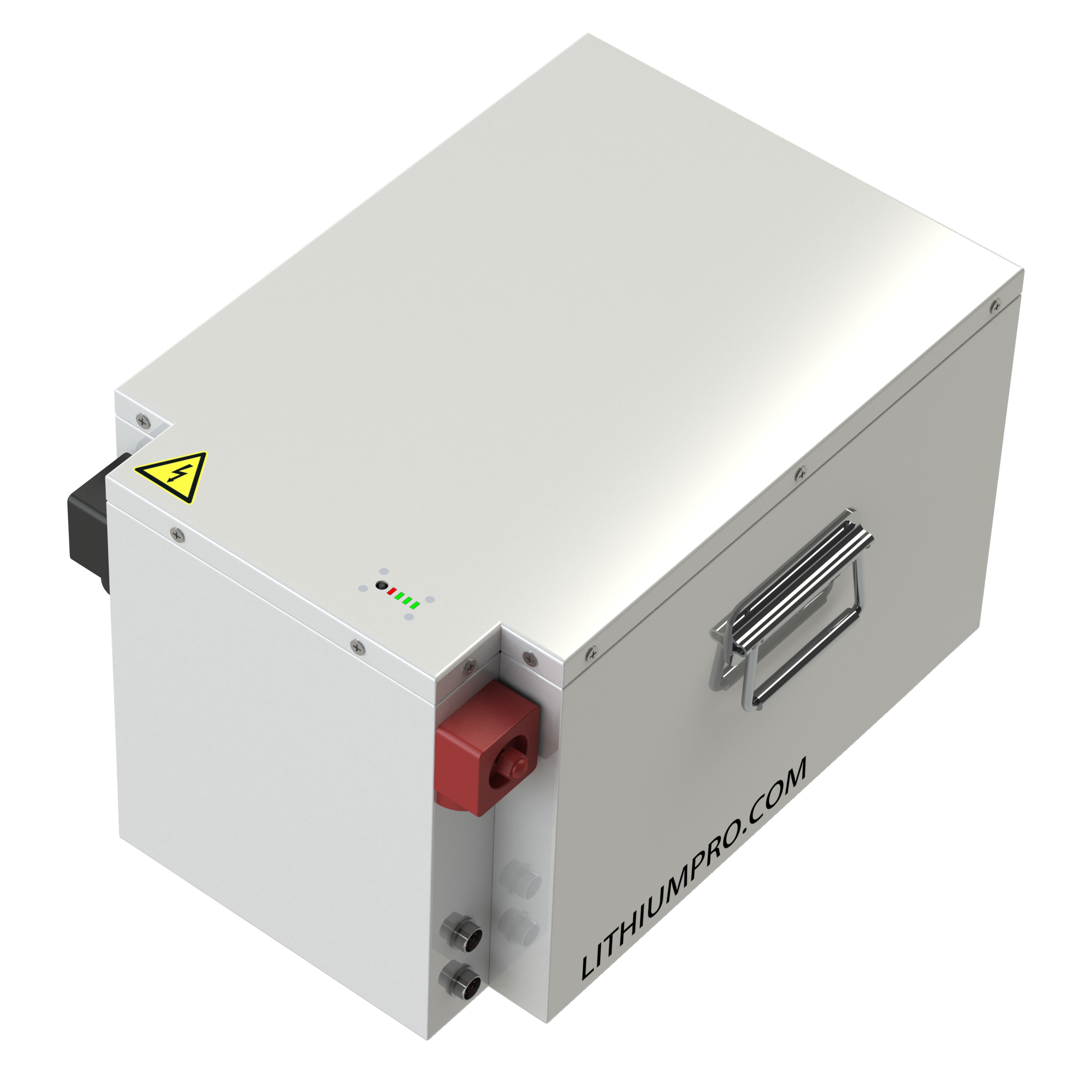

Pack Info.	Model	LFP-8S2P-100Ah
	Type	Cylinderical
	Material	LiFePO4
Cell Spec.	Battery Cell Model	F603200C-100Ah
Cell Spec.	Battery Cell Spec.	3.2V100Ah
Pack Spec,	Assemble Style	8S2P
	Nominal Voltage	25.6	V
	Nominal Capacity	200	Ah	@ 25℃
	Energy	5.120	kWh
	Energy Density	102	Wh/kg
	Charge Voltage	28.8	V	Voltage Range20~28.8V
	Discharge End Voltage	20	V	Voltage Range20~28.8V
	Standard Charge Current	40	A	0.2C
	Max Continuous Charge Current	100	A	0.5C
	Standard Discharge Current	40	A	0.2C
	Max Continuous Discharge Current	120	A	0.6C
	Peak Discharge Current	120	A	0.6C
	Charge Temp. Range	0~45	℃
	Discharge Temp. Range	-20~60	℃
	Storage Temp. Range	-10~30	℃
	Dimension	438300275	mm
	Weight	50	Kg
	Cycle life	2000	times	@ 0.5C/0.5C 90%DOD
BMS	The BMS default specification is below, if your load working current over the specification, please contact us. Need to be custom-made.
BMS	The Max continuous cuurrent	120	A

Product Description

FAQ

Q1. Can we put different lithium battery pack in parallel or series by ourselves?
> Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention:
1> Make sure the voltage of each battery are same before put in parallel. If they are not same, charge them to the same rate.
2> Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
3> Advise us the target capacity of the whole pack if you would like to put them in series. We will choose the suitable BMS for each battery.
4> If you are not professional in parallel and series batteries, please don't handle the battery by yourself, It may damage the battery or reduce the cycle life of battery.

Q2. Can we put different LiFePO4 battery pack in series by ourselves?
> You can buy big voltage packs directly from us.We don’t suggest to connect them in series by yourself, this may damage the battery or reduce the cycle life of the pack.

Q3. Is BMS included in the battery pack?
> Yes, our battery pack includes BMS.

Q4. What is your warranty?
> We offer 1~5 years warranty depend on different products.

Q5:What is your terms of payment?
> T/T recommended, Paypal and Western Union acceptable.
1> Sample order: Full payment made when PI received.
2> Mass production order:30% down payment when PI received, 70% before shipment.

Q6. How do you ship the lithium battery packs?

> For sample order or small battery packs, we can ship by express through Fedex, UPS, TNT etc. If whole parcel over 100KG, can be shipped by air or by sea, by sea is cheaper.

Company Profie

BEIAN is a high-tech green energy enterprise that provides customized solutions and products for lithium batteries, energy storage

lithium batteries and lithium battery power systems for global users.

At present, BEIAN has formed strategic partnerships with many well-known enterprises at home and abroad.

The products are widely used in Electric Scooter, Household energy storage, Solar energy storage, UPS, electric forklift, marine,
etc.
