liquid packing machine

2 year ago

16 0 

1 min

Product details

Model	WPV250
Bag size	(L)100-370mm (W) 100-250mm
Film width	Max.520mm
Film thickness	0.05-0.10mm
Packing range	10ml-2000ml/bag
Packing speed	Packing speed
Air consumption	0.65Mpa, 0.4m³/min
Power supply	220V/380V 50-60Hz
Power	4KW
Dimension	L2090 x W2060 x H2550mm
Weight	2050kgs
Packing material	All laminated film such as PET/PE, PET/AL/PE, Nylon/PE, etc.; PE (confirm when order)

Main Features

1.Equipped with safety protection,comply with firm's safety management requires. 2. PLC and HMI controller, easy to operate and maintain.

3.Servo film pulling system,photocell accuracy cutting position.

4. Touch screen can store the technical parameters of various kinds of products.No need to reset while products changing.

5. Separate circuit boxes for power control and pneumatic control, low noise, good tightness and more stable.

6. Automatically completed products feeding,forming, filling, gas flushing (exhausting), sealing,cutting,date printing and counting.

7. Have error indicating system, helping handle the trouble immediately.

8. The device of gusseted bag, linked bag, punching device ect for optional.

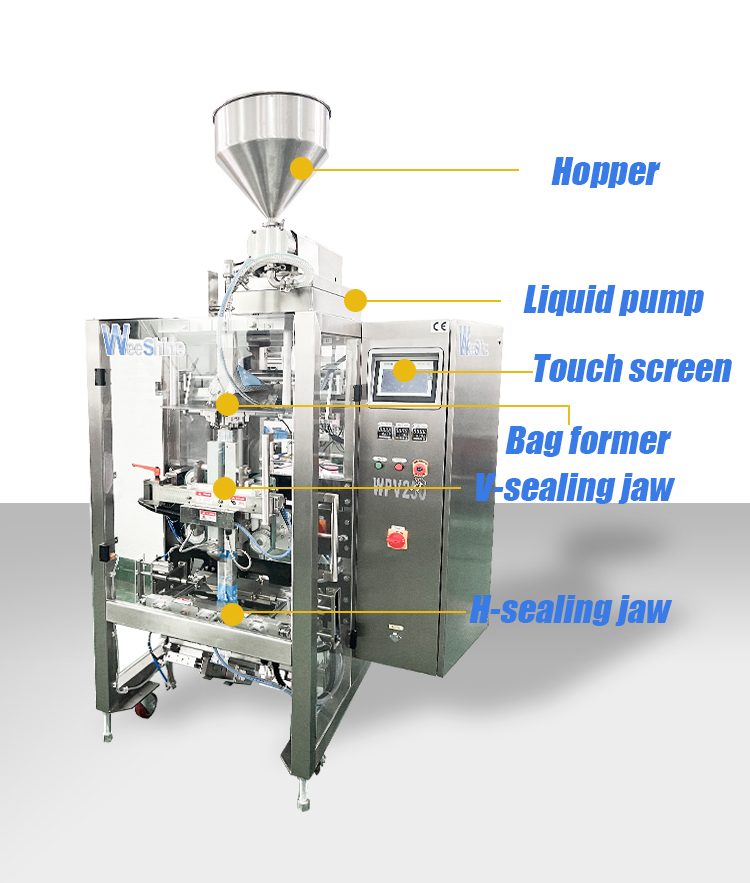

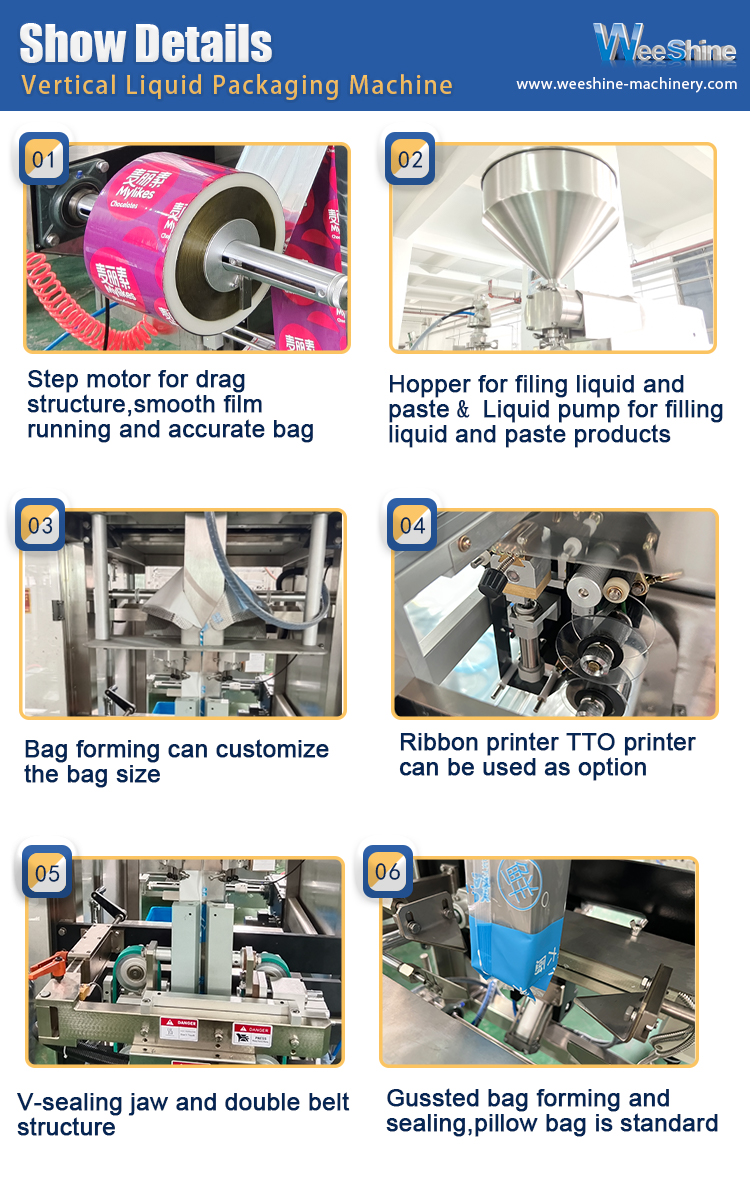

Packaging Machine Details
