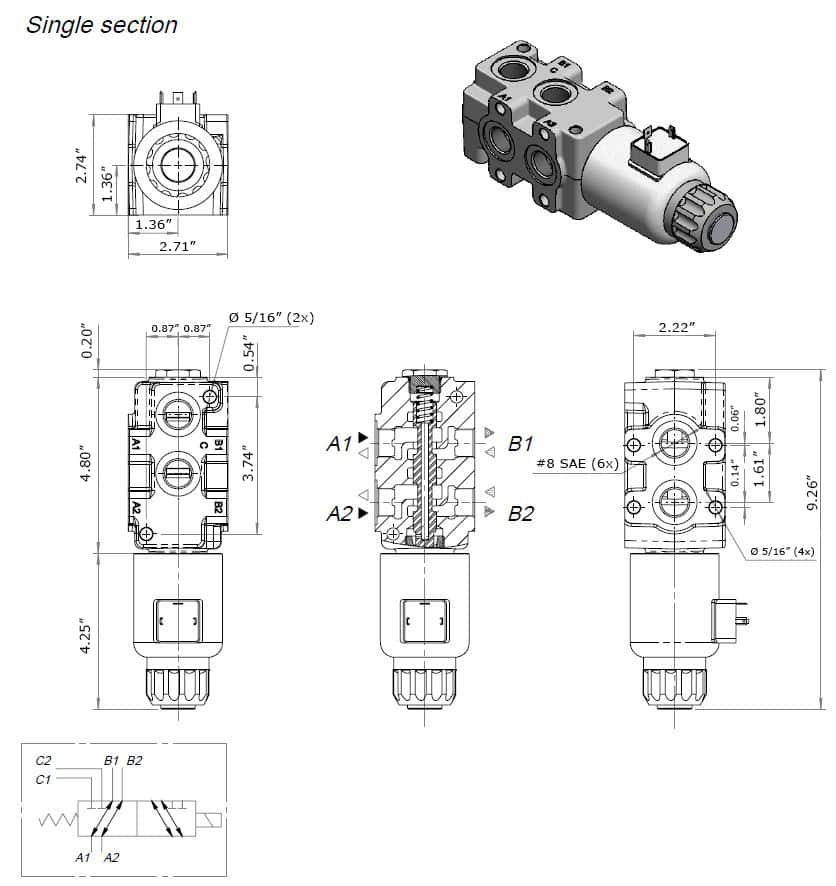

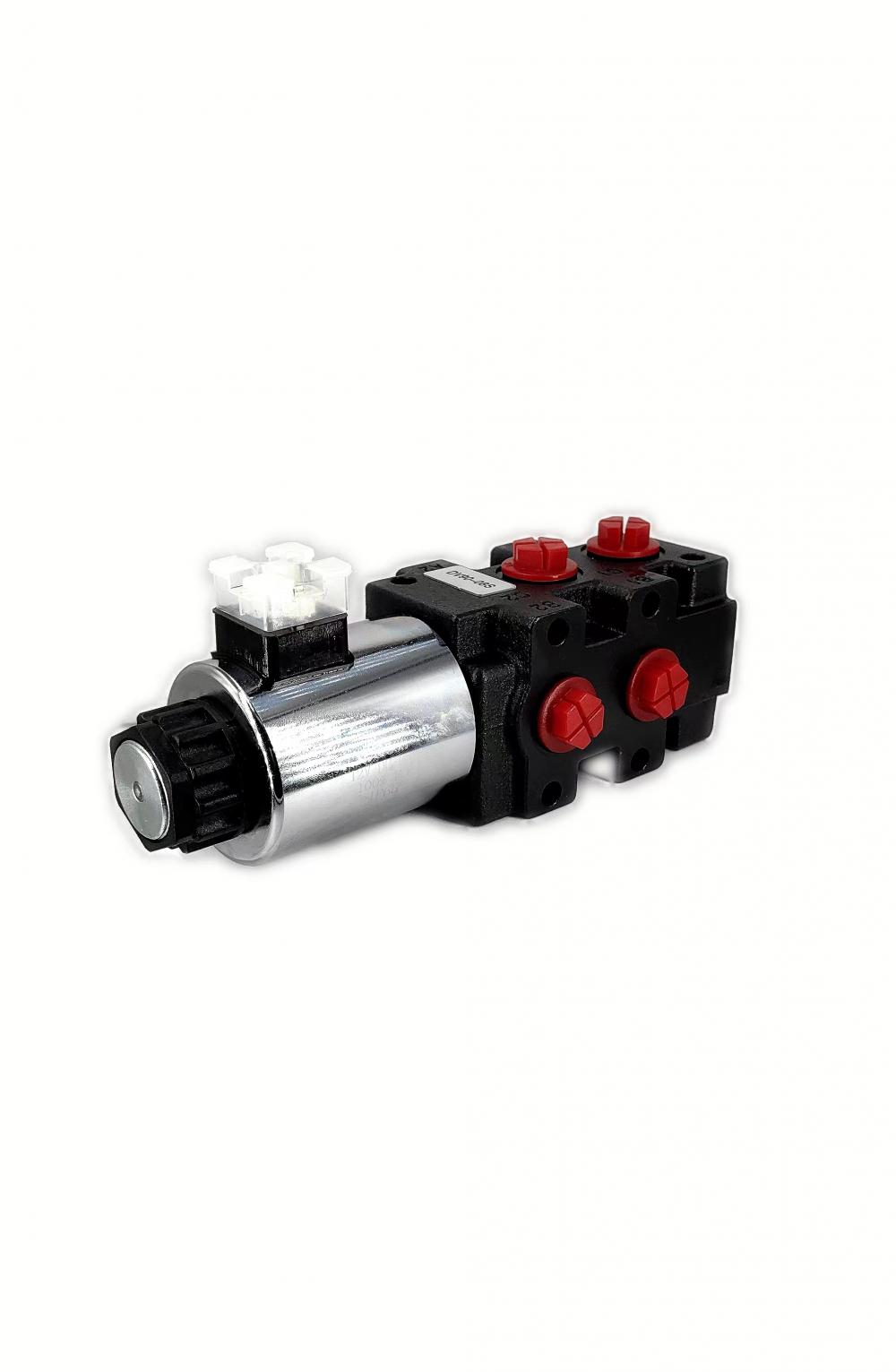

Solenoid Sectional Diverter Control Valve DV90-08S

Solenoid Sectional Diverter Control Valve DV90-08s is one type of Solenoid Directional Control Valves.It is same as Summit Hydraulic Multiplier.Haohong Hydraulic introduce DV90-08S from Summit company which is from the USA.By using just one DV90-08S,we could change cylinders from one to the other.So when we do not need to use hydraulic hoses to connect between cylinders to achieve changing cyliners.You could compare it with SUMMIT Company by click this(Hydraulic Solenoid Selector/Diverter Valve, 24 GPM, 12v DC (summit-hydraulics.com)).

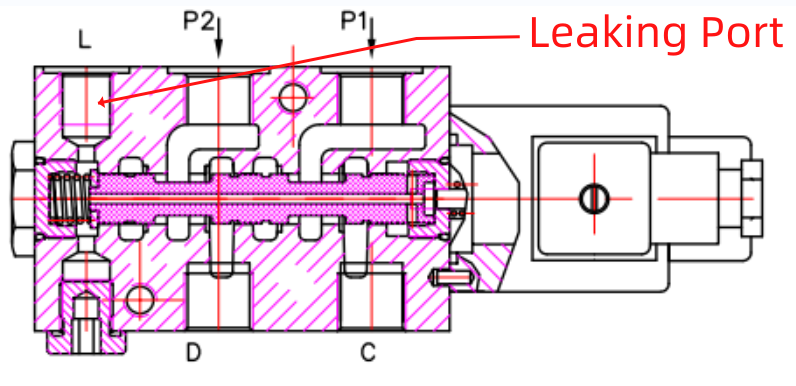

The difference between DV90-08S and SVV06 is Pressure.We can use svv06 to change cylinders under high pressure.Because svv06 solenoid sectional diverter control valve has leaking port.This leaking port could make sure changing oil direction smoothly.Due to lacking the leaking port,so dv90-08s just can change cylinders under 21Mpa.

1. 6-way with alternating spool; it's sectional type to obtain 8-way or 10 way circuit.

2. It's possible to flange mounting a block with cross return anti-shock valves.

3. Coils with several feeding voltage are available.

4. They are used as link between two consumers and the basic Directional Control Valves, when we want to control both consumers alternately by means of one basic directional control valve.

5. Diverters are used to add an extra facility to the directional control valve when it is needed for a sequence of operations  such as a safety operation or to control a selected hydraulic cylinder.

6. The stackable circuit selector valves allow one single drive fo 6 users with 5 diverters connected in series.

7. Please note the drainline must be connected back to tank at all times.
