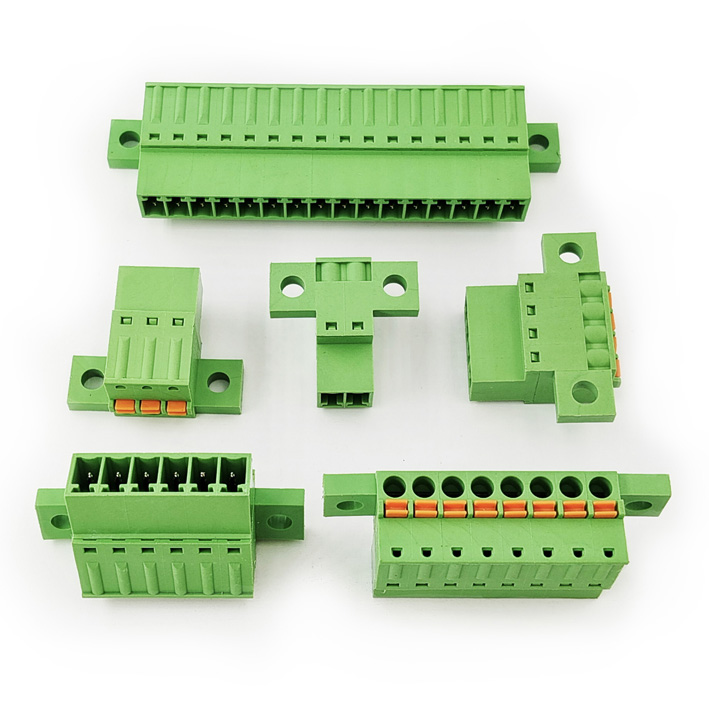

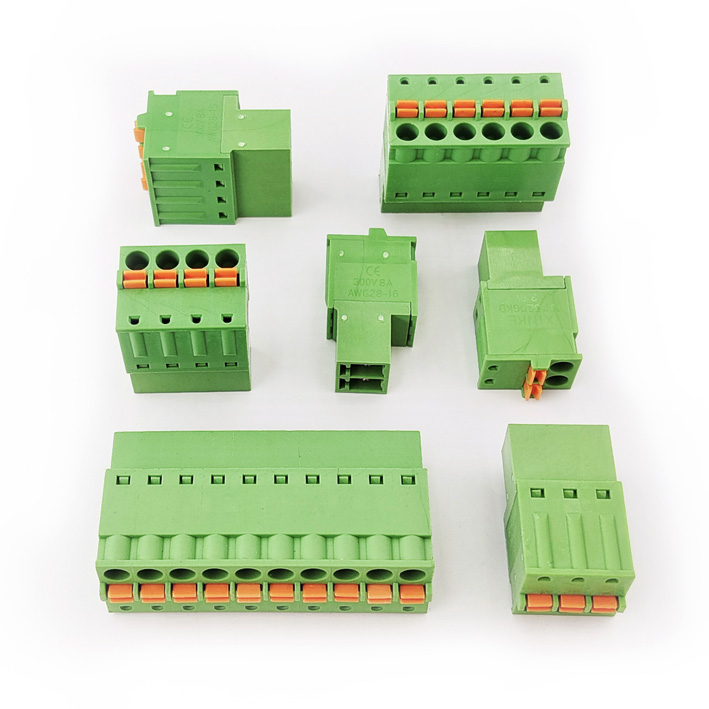

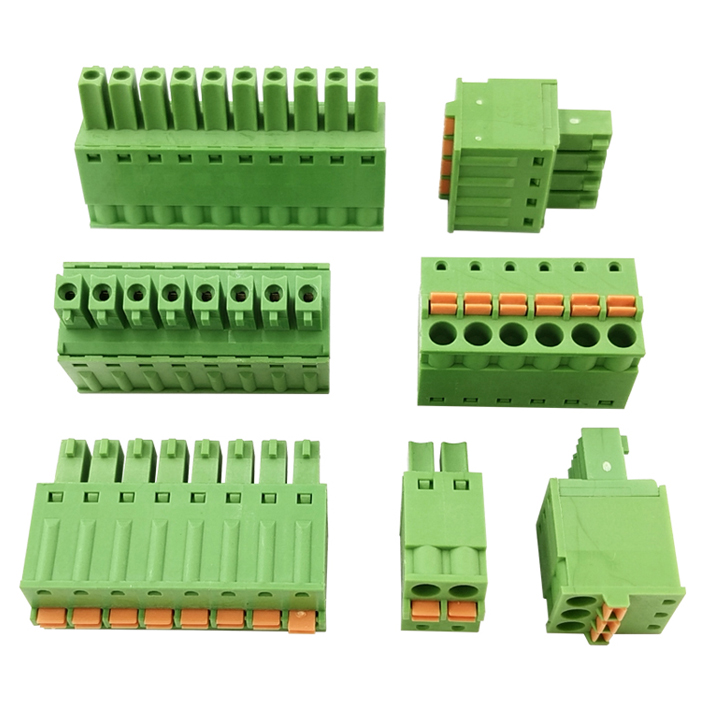

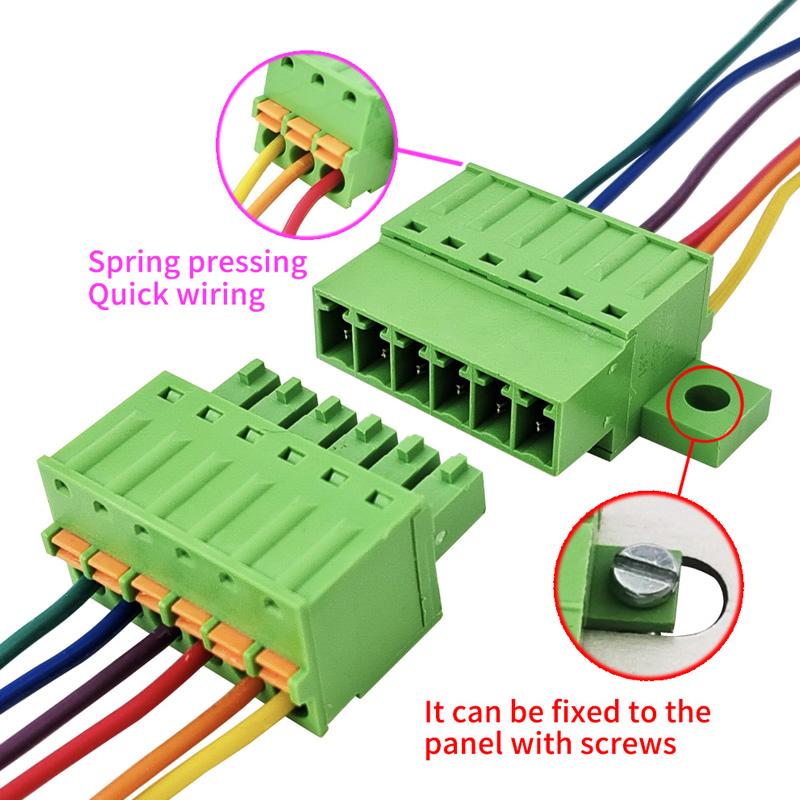

spring pluggable male and female terminal blocks connector1

About this item
 Pitch: 3.81mm; Rated Value: 8A 300V ; Wire Range: 28-16AWG
 Withstanding Voltage: AC1600V/1Min; Screw:-/Torque: -
 Stripping length: 8-9mm; Temperature range: - 40 ° C ~ + 105 ° C

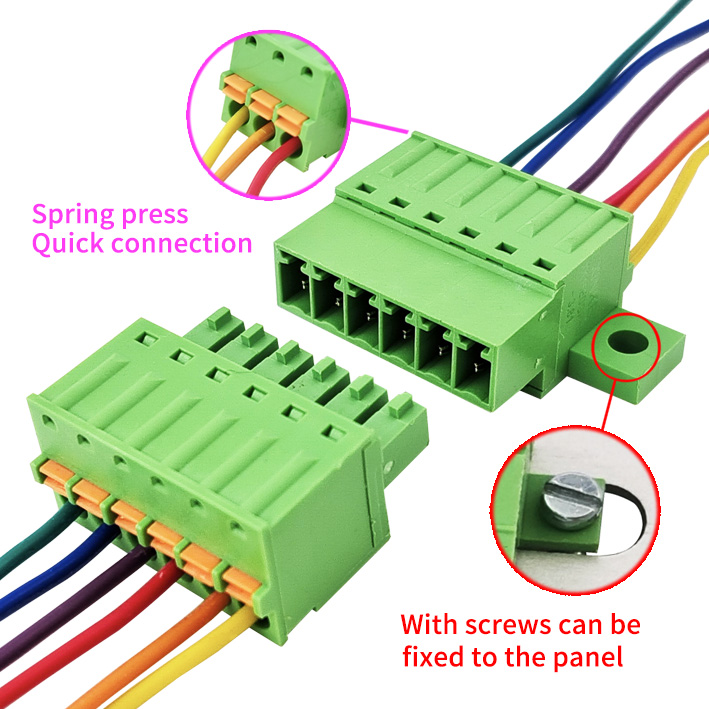

 XINKE terminal blocks are made from high quality plastic PA66 with high temperature resistant and V0 flame retardant. PCB din rail adapter. Easy to install and detach. Just loosen the screws, insert the stripped cable and tighten the screws.

 XINKE screw terminals can be used for Arduino wire connection. Widely applied in most electronics, communication equipment, instruments, computers, automatic control system, household appliance and warning devices, IC Socket, DIY PCB Universal Board, Power Modules and LCD Modules.

Product Description



Manufacturer's model:

XK15EDGRKDS+KD-3.81MM

Manufacturer's model and specification：

XK15EDGRKDS+KD-3.81MM

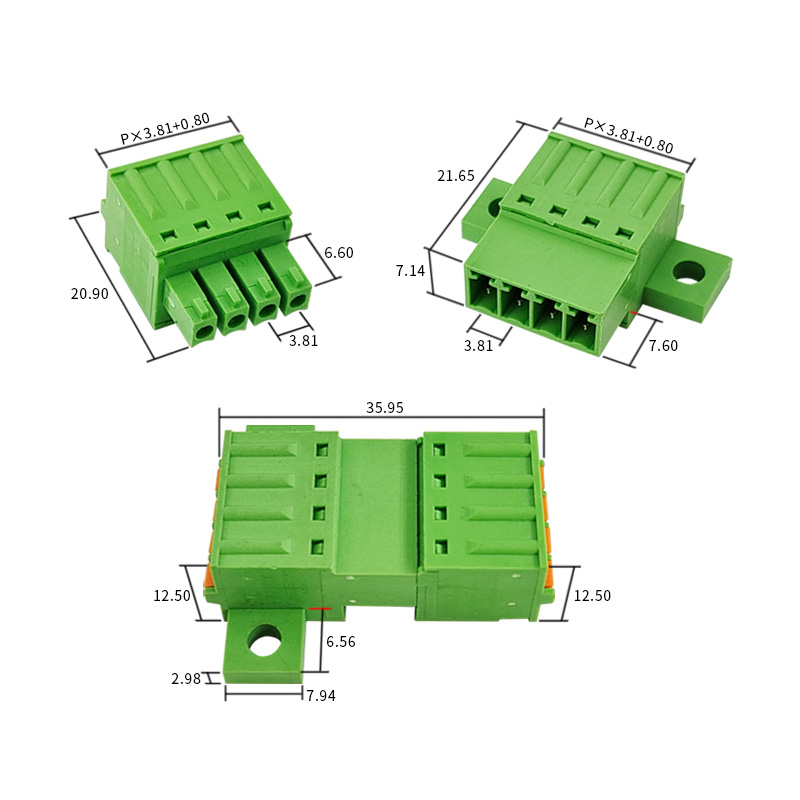

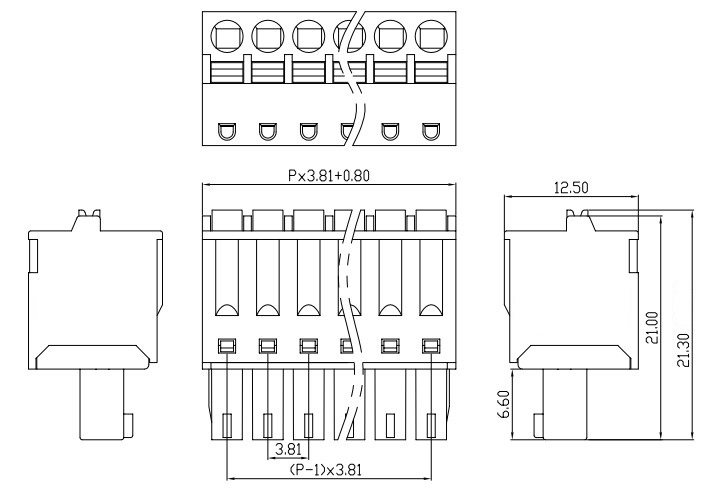

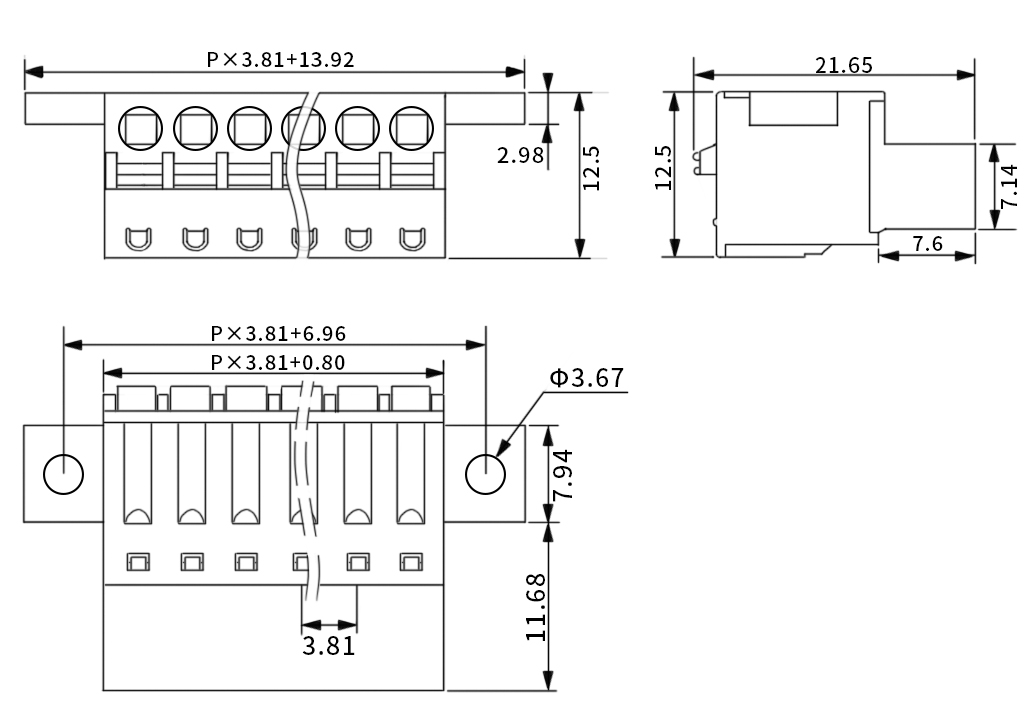

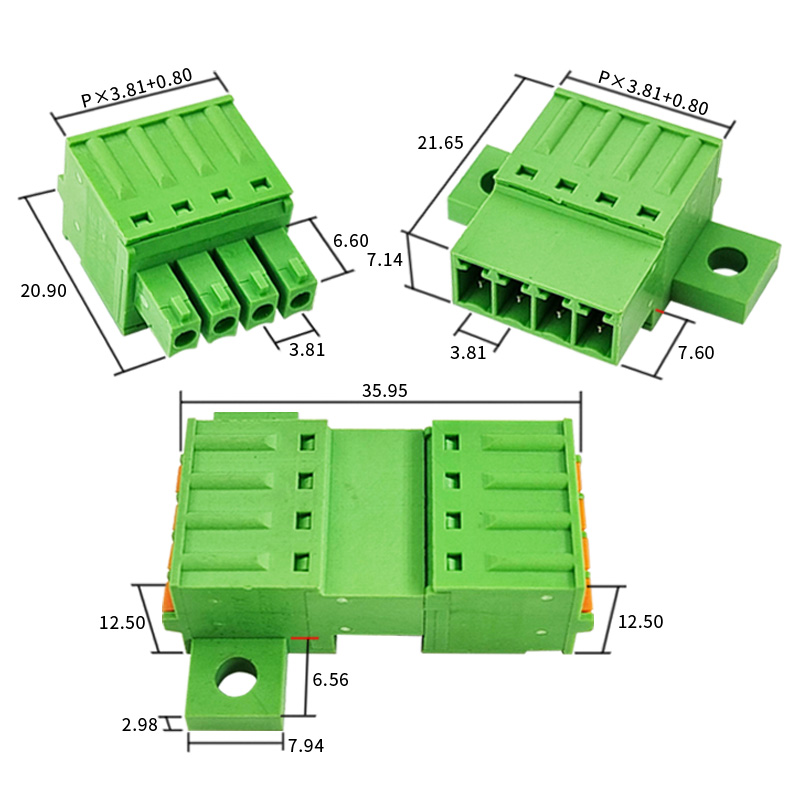

Product Model	XK15EDGRKDS+KD-3.81MM	Insulation Material	PA66
Rated Voltage	300V	Imflammability	UL94V-0
Rated Current	8A	Contactor Material	Copper alloy
Wire Range （Solid/Stranded）	28-16 AWG	Contactive Coating	Ni plated
Witgstanding Voltage	1600V/1Min	Pitch	3.81mm
Conductor cross section （Solid/flexible）	1.5 mm²	Poles	2-24P
Stripping Length	8-9mm	Operating temperature	-40~+105 ℃
Impulse withstand voltage	2.5KV	Screw/Torque(Max)	-

Company Introduction

ABOUT US
XINKE factory was established in 2013 and covers an area of nearly 3,000 square meters. It is an electronic component manufacturing enterprise integrating new product research and development, large-scale production and brand sales. It produces various types of terminal blocks and connectors, with an annual output of more than 30 million pieces, which are widely used in smart home, lighting electronics, security equipment and other filds. The products are sold all over the world, and it has accumulated more than 5,000 customers.
production workshop
The injection molding machine softens the PA66 at high temperature and injection molding.

Automatic assembly workshop
Put the shell, screws, pins and other semi-finished products into the assembly machine to automatically complete the assembly.

our team
Professional technical and sales team, all-round service to customers.To the greatest extent to meet the various needs of customers.
storehouse
Adequate inventory and complete specifications ensure timely and stable supply and shipment.

Automatic detection workshop
Using the most advanced infrared detection technology, the defect rate of products is greatly reduced.
Participate in the exhibition
We actively participate in domestic and foreign exhibitions and look forward to in-depth cooperation with you.

Customer Photos
