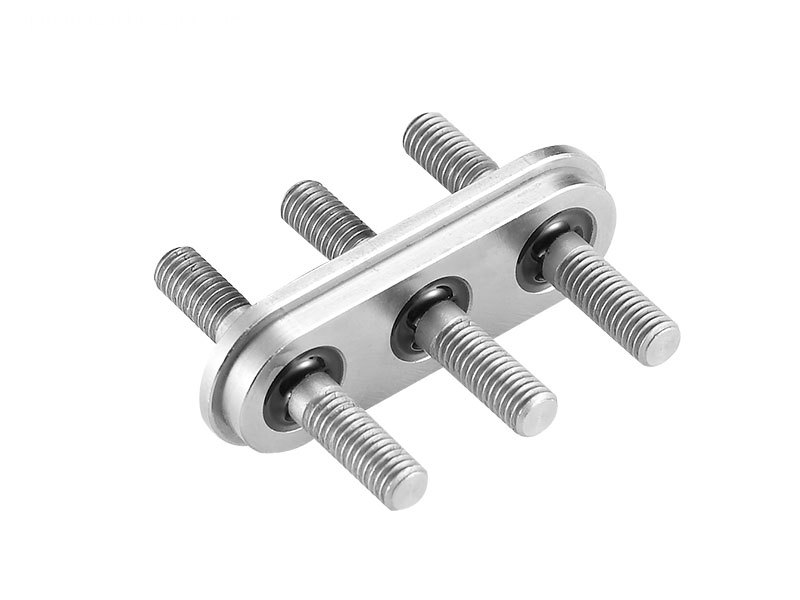

Air Conditioning Compressor Seal Terminal
2 year ago
Hermetic Compressor Terminals Model:
Application: Air conditioning compressors for hybrid electric vehicles and all-electric vehicles.
Product advantages:
The product is glass and metal sintering seal connection; According to the application requirements, the surface of both sides of the main body can choose ceramic or silicone rubber, the number and position of the needle can be selected, the needle surface mirror layer material can be selected; The product has the characteristics of high pressure resistance, strong mechanical properties, etc. The installation of the terminal can be selected according to the requirements of clamping ring fixation, bolt fixation and other installation methods; Can be customized according to size and functional requirements.
Technical parameters:
PLATE:
Material: 45#
PIN:
Material: Iron - chrome
Diameter: 5mm
Length: 32.7mm
Connection mode: screw lock
Insulation resistance: 1000MQ/DC500V
Resistance voltage: AC1000V/ s
Working condition: Voltage: 24V Current: 30A-60A
