DONGFENG truck with crane
2 year ago
The DONGFENG 6X4 Truck Mounted Cheap 12T Straight Arm Crane is a hydraulic crane mounted on a truck which can do loading & unloading work without need of any external crane and manpower. It is an integrated solution for loading, transportation and unloading of the goods.
There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton
Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.
Heavy Duty Crane:50Ton, 80Ton, 120Ton.
The cranes can be of famous brands as Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, Sany, etc.
VEHICLE PARAMETER :
|
VEHICLE PARAMETERS |
|||
|
Chassis Brand |
DONGFENG |
Condition |
Brand New |
|
Crane Capacity |
12T |
Crane Brand |
XCMG Remote Control |
|
Arm Type |
Straight |
Cab |
Left/Right Rudder |
|
Engine Power/displacement |
270HP/9L |
Gearbox |
FAST， 9F 2R |
|
Overall Size |
8.5X2.5X3.85/m |
GVW |
25000kg |
|
Cargo Length |
6m |
Curb Weight |
11720kg |
|
Vehicle Frame |
350mm crossbeam |
Tire Spec. |
12.00R20 |
|
Rear Axle Load |
16T |
Brake System |
Air Brake |
|
Wheelbase |
4800+1350mm |
Allow Passengers |
3 |
|
Max Speed |
90km/h |
Drive Model |
6X4, LHD/RHD |
|
CRANE PARAMETERS |
||
|
Crane Model
|
XCMG SQS300-4 |
XCMG SQS250-4 |
|
Max Lifting Capacity(kg) |
12000 |
10000 |
|
Working Radius(m) |
14 |
14.5 |
|
Lifting Height(m) |
12.3 |
12.9 |
|
Rotation Angle |
360 Degree |
360 Degree |

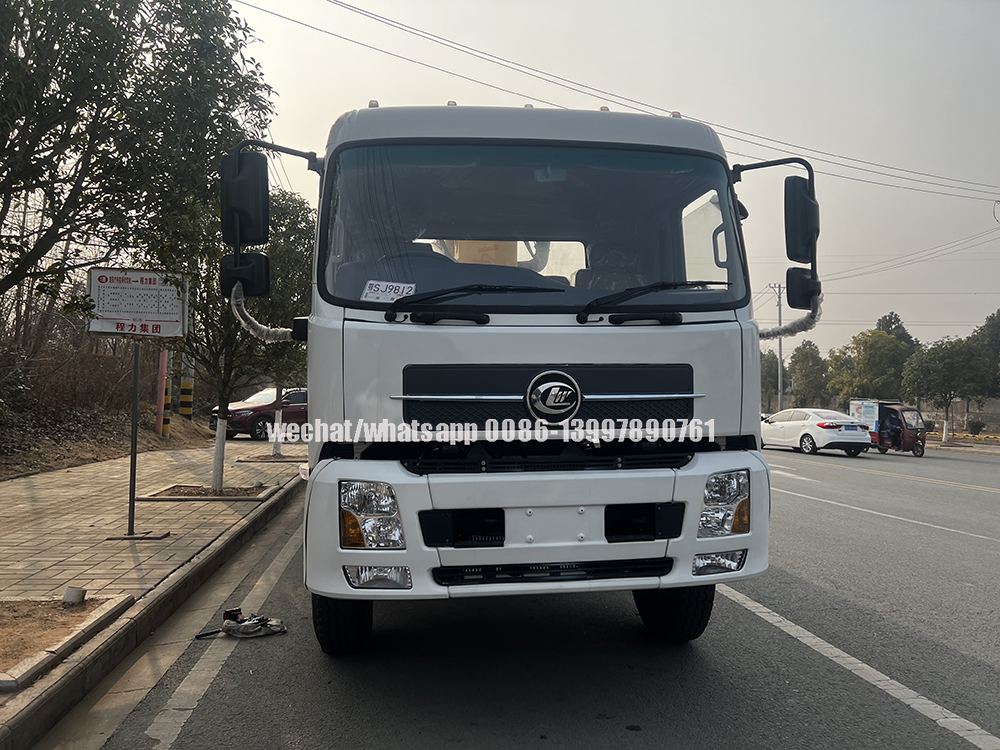

DONGFENG 6X4 Truck Mounted Cheap 12T Straight Arm Crane- Image 1

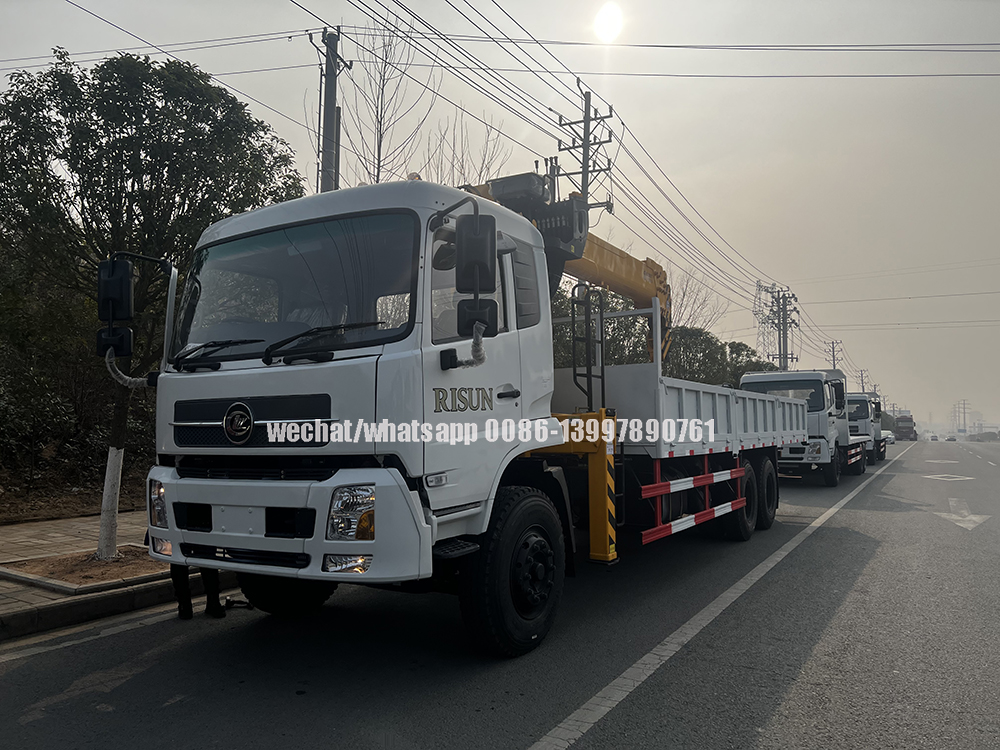

DONGFENG 6X4 Truck Mounted Cheap 12T Straight Arm Crane- Image 2

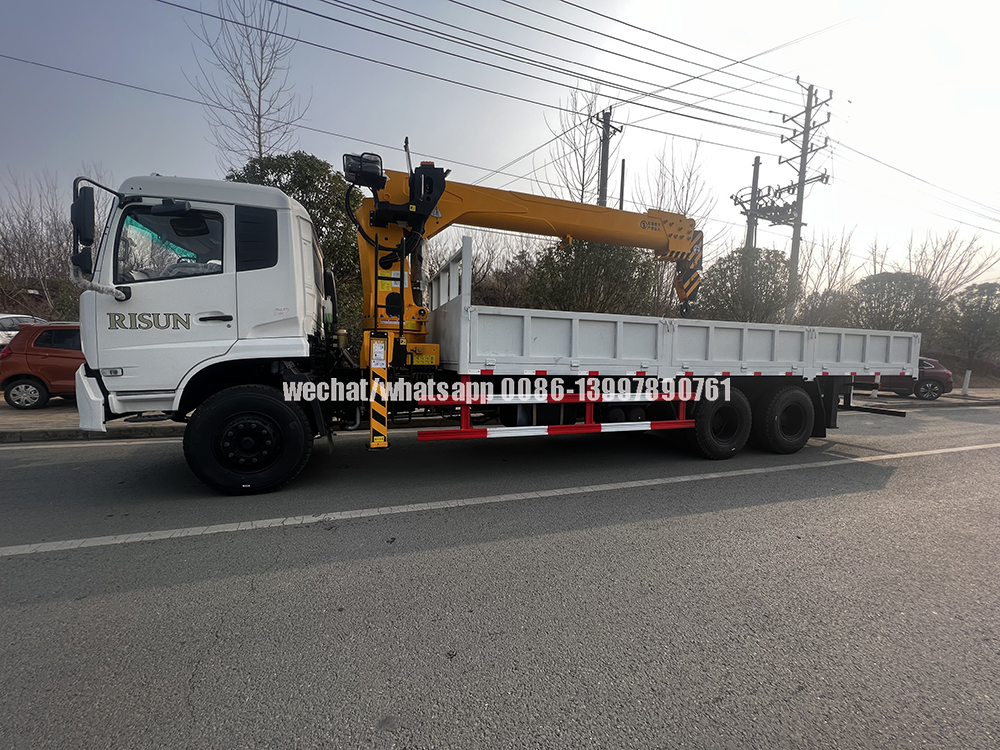

DONGFENG 6X4 Truck Mounted Cheap 12T Straight Arm Crane- Image 3

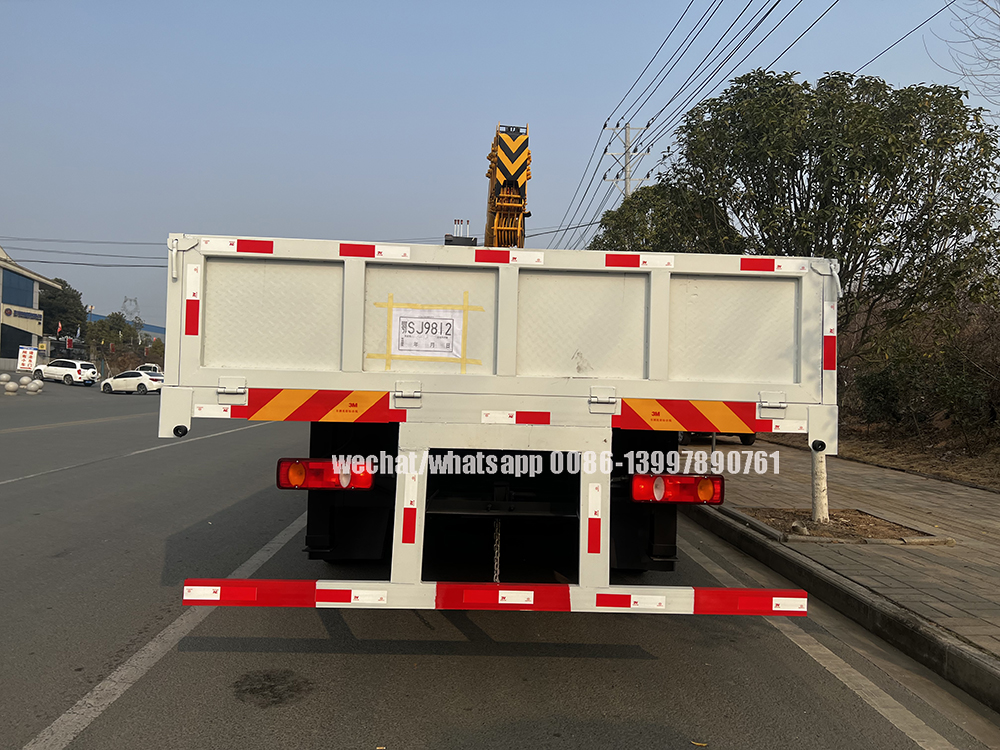

DONGFENG 6X4 Truck Mounted Cheap 12T Straight Arm Crane - Image 4

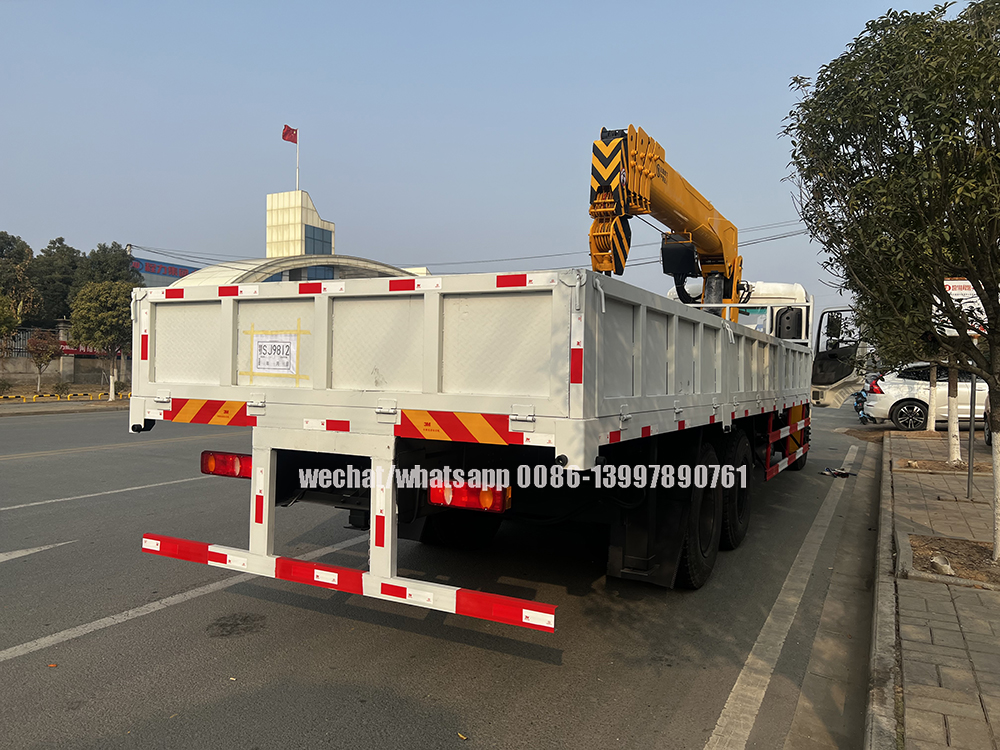

DONGFENG 6X4 Truck Mounted Cheap 12T Straight Arm Crane - Image 5

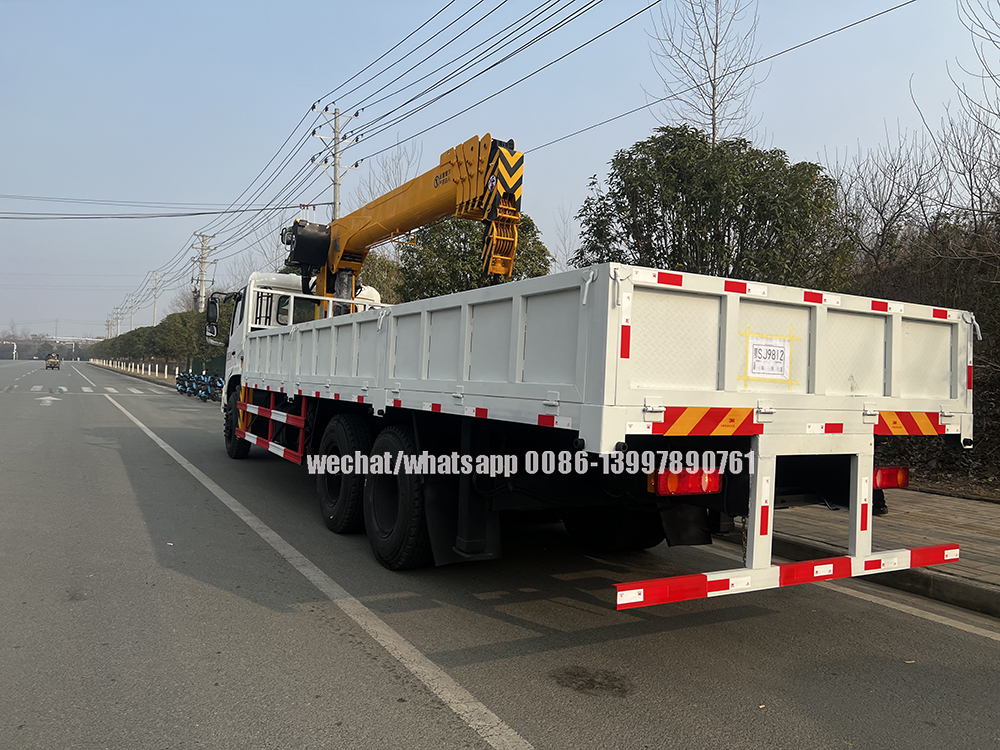

DONGFENG 6X4 Truck Mounted Cheap 12T Straight Arm Crane- Image 6
DONGFENG 6X4 Truck Mounted Cheap 12T Straight Arm Crane- Image 7
Chassis Brand We Can Supply
We are the top one specialized vehicles(trucks) manufacturer and exporter in china, we produce and sale trucks such as Dump Truck, Cargo Truck, van truck, water tanker, refrigerated truck , Fire Truck, ambulances, garbage truck , road wrecker, Car Carrier, crane truck , Aerial Working Platform Truck, oil tanker, semi trailers, bulk feed transport truck, aluminium alloy tanker, cane trucks, etc...
All images and videos are taken in our factory and vehicles are ordered by oversea clients.
We can supply our clients with best products, competitive price, site technical support and fastest after sale service.
Welcome to contact us for more information of the DONGFENG 6X4 Truck Mounted Cheap 12T Straight Arm Crane at any time.
