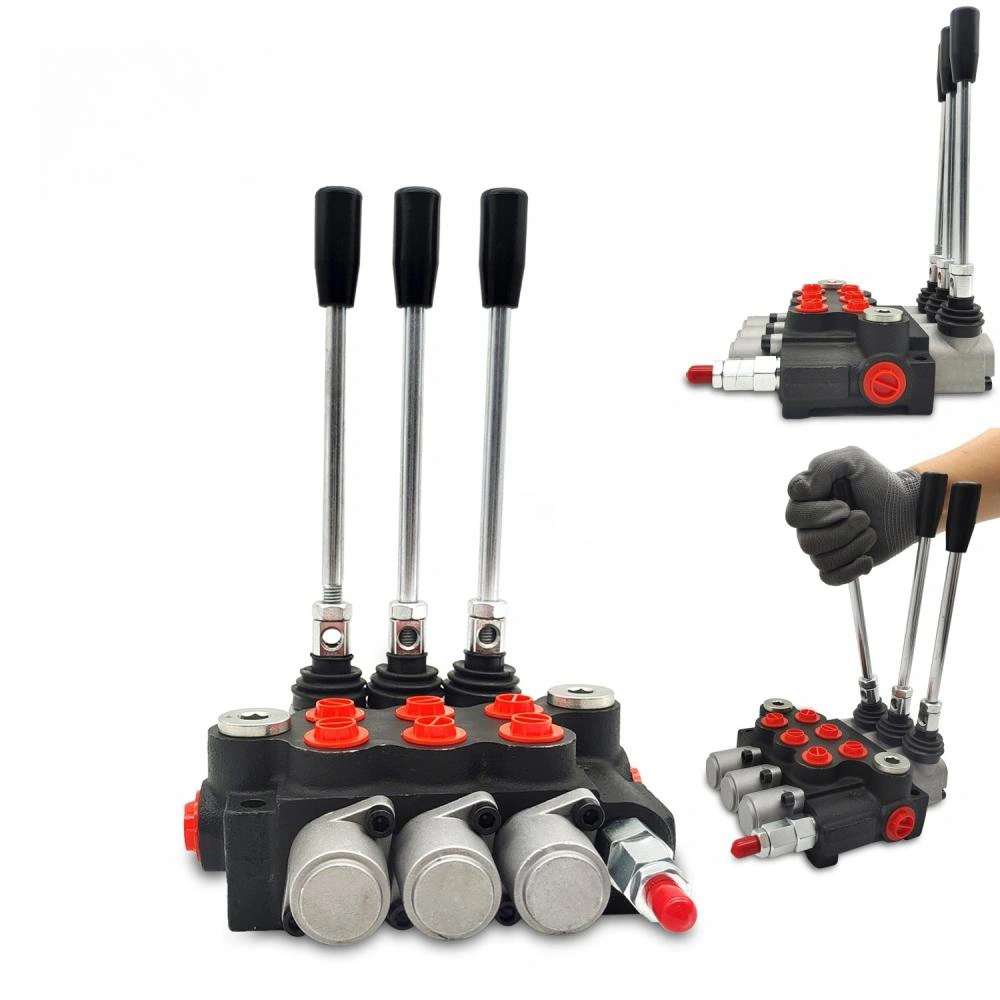

3P40 Series Hydraulic Monoblock Directional Valve
2 year ago
1. P40 series valves with middle-high pressure monoblock construction is developed based on Europe technology.
2. Inner Hydraulic Check Valves: The check valve inside the valve body is to insure the hydraulic oil not to be returned.
3. Inner Pressure Relief Valves: The relief valve inside the valve body is able to adjust the hydraulic system working pressure.
4. Oil way: Parallel circuit, power beyond option.
5. Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.
6. Valve construction:1-7 levers.Spool Function: O,Y, PA.
7. Option: Hydraulic Check Valves are available to be added on A and B port.
8. Available with manual,' pneumatic control, electric and pneumatic control, hydraulic and electric control and etc.
| Name |
3 Spool P40 Hydraulic Directional Control Valves |
|
Max operating pressure |
P = 3600psi (250 bar);T = 150psi (10 bar); A ,B = 4300psi (300 bar) |
|
Nominal flow |
13gpm (60L/min) |
|
Relief valve |
Adjustable |
|
Center system |
Open |
|
A, B ports |
3/8" BSPP |
|
P, T, N port |
1/2" BSPP |
|
Applications |
Small tractors,Tractors loaders,Log splitters,Other mobile. |
|
Payment |
1.We accept Paypal, credit card, debit card, Google Pay... 2.Shipping will be arranged within 7 business day once payment is cleared. |
|
Contact Us& Feedback |
If there is any fault or problem with the product, please don't be shy to express it, we will solve it at the first time. |
|
Construction |
Р40 is a mono-bloc distributor. Its body is made of cast iron . Plungers are made of carburized steel with hard chrome plating. |
