Product details

Guaranteed 100% Factory Sale Brand New Dongfeng 4X4 AWD Dump Truck Mounted Crane 2 Tons

Dongfeng dump truck with crane (also called box vehicle, van truck, cargo van, box van, cube truck, cargo van) is used to transport cargo with closed box or un-closed box. It is very normal and important transport truck. The material used for van truck body could be corrugated steel, color steel plate, fiberglass, aluminum…

By adding cooling system and polyurethane insulation layer, van truck could be refrigeration truck and carry cargo or food that need be in low temperature.

According to the requirements, it could be single door at rear or side, or double door, it could be equipped with taigate lift/ rear hydraulic lift platform.


Vehicle Parameters

DONGFENG Dump Truck Mounted Crane 2T
General Vehicle Brand DONGFENG
Vehicle Condition Brand New
Overall Dimension 5900 * 2200 * 2100 mm
GVW / Kerb Weight 4,900 kg / 2,920 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner Air Conditioner Equipped
Engine Fuel Type Diesel
Engine Brand CHAOCHAI
Power 140 Hp (102 KW)
Displacement 4678 ml
Emission Standard Euro 3
Chassis Drive Type 4X2, left hand drive or right hand drive
Transmission 5 forward,1 reverse
Wheelbase/No. of axle 3360 mm / 2
Tyre Specification 7.00R16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 98 km/h
Paint Metallic paint
Superstructure Box Capacity 2 tons
Box Material steel
Floor With anti-static rubber blanket
Dimension of Box 2900 x 1900 x 500 mm
All standard accessories: tool kit, English Manual……
Optional 1. Tank material could be  color steel plate, fiberglass, aluminum…
2. Cooling system and polyurethane insulation layer.
3. Tailgate capacity available: 500kg, 1 ton, 1.5 tons, 2 tons, 3 tons...
4. Tailgate dimension could be customized.


Vehicle Images

Crane Truck Jpg

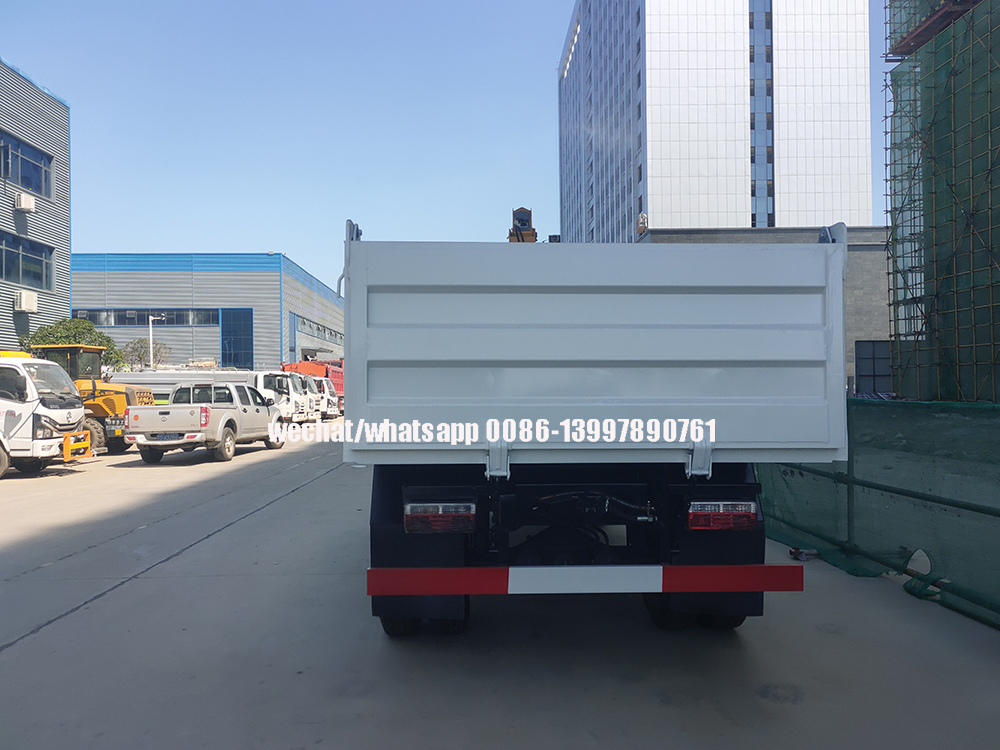

Dongfeng 4X4 AWD Dump Truck Mounted Crane 2 Tons Image 1

Dump Truck With Crane1 Jpg

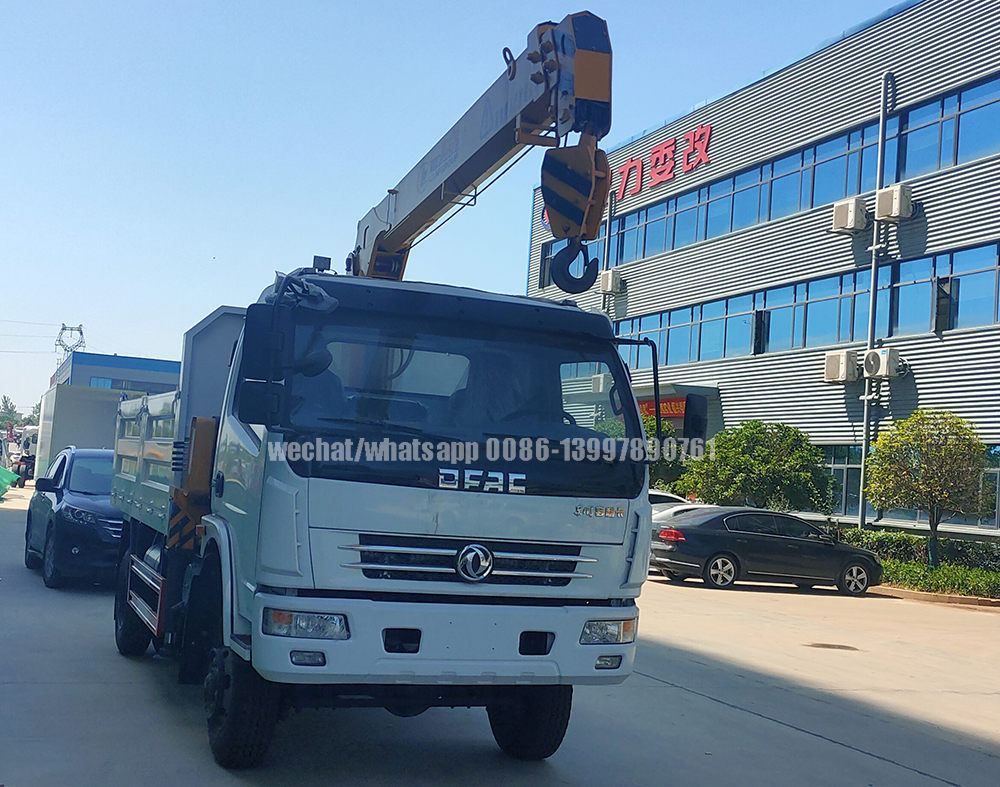

Dongfeng 4X4 AWD Dump Truck Mounted Crane 2 Tons Image 2

Crane Truck 4 Jpg

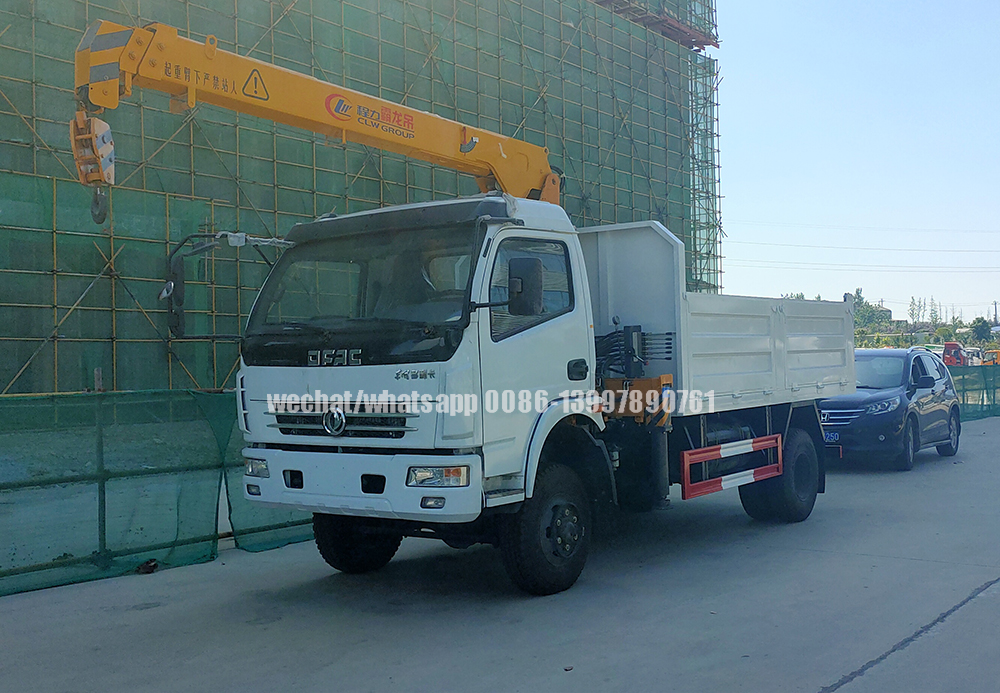

Dongfeng 4X4 AWD Dump Truck Mounted Crane 2 Tons Image 3

Truck Mounted Crane Jpg

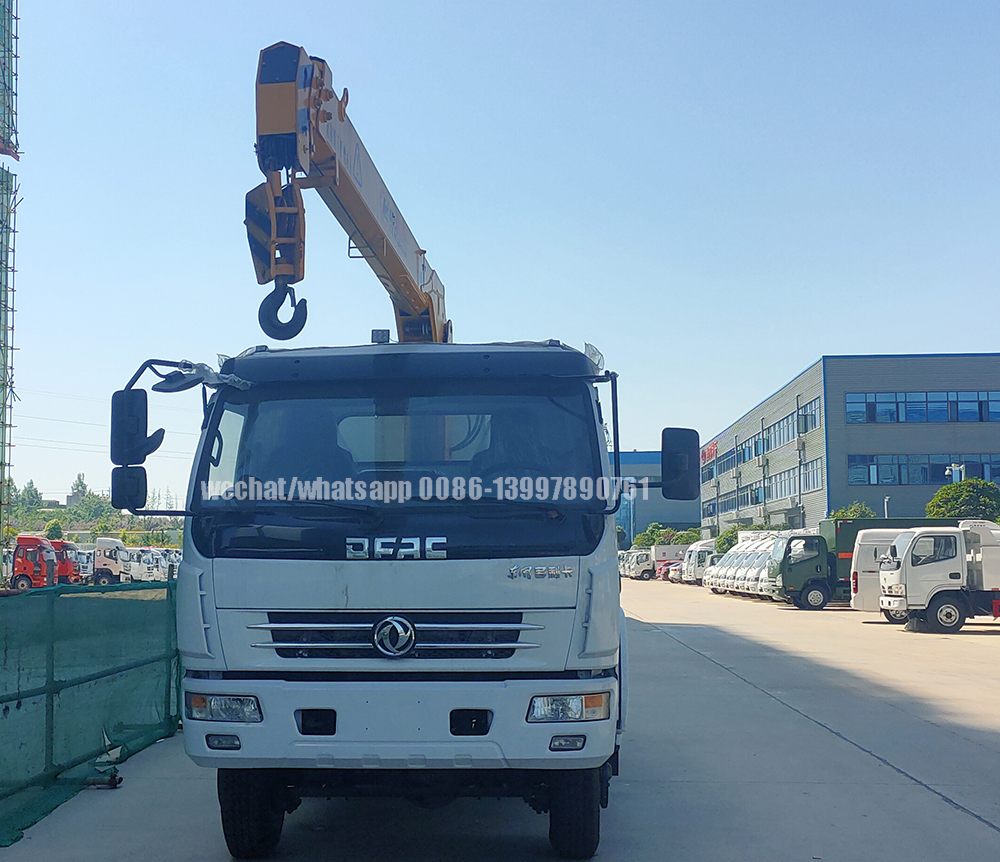

Dongfeng 4X4 AWD Dump Truck Mounted Crane 2 Tons Image 4

Tipper Jpg

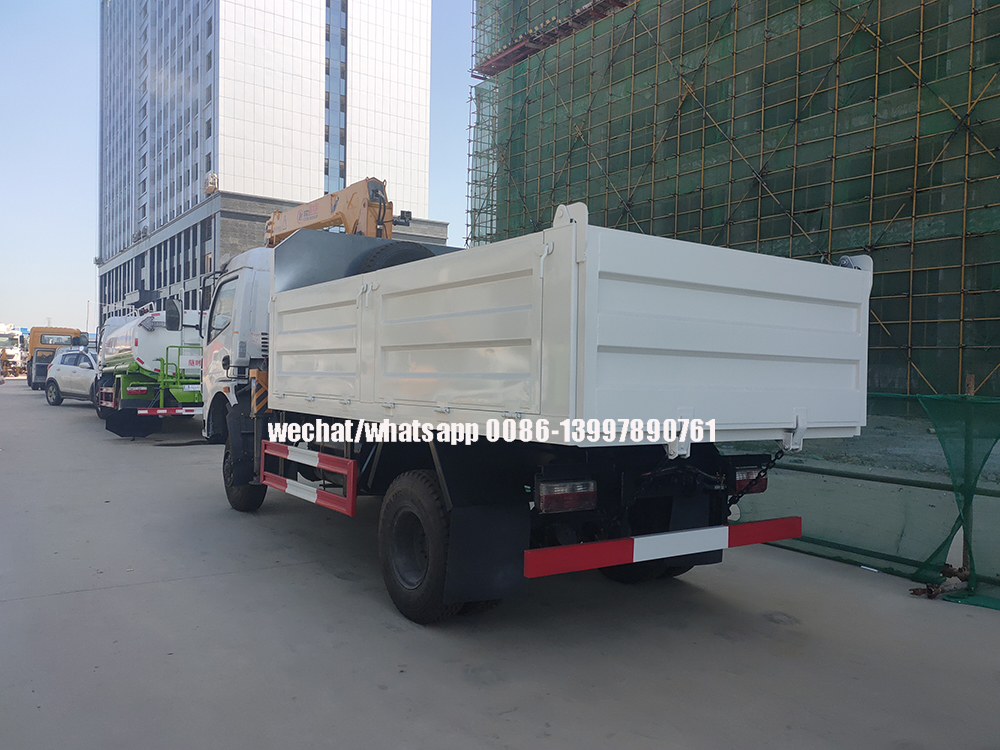

Dongfeng 4X4 AWD Dump Truck Mounted Crane 2 Tons Image 5

Cargo Truck Jpg

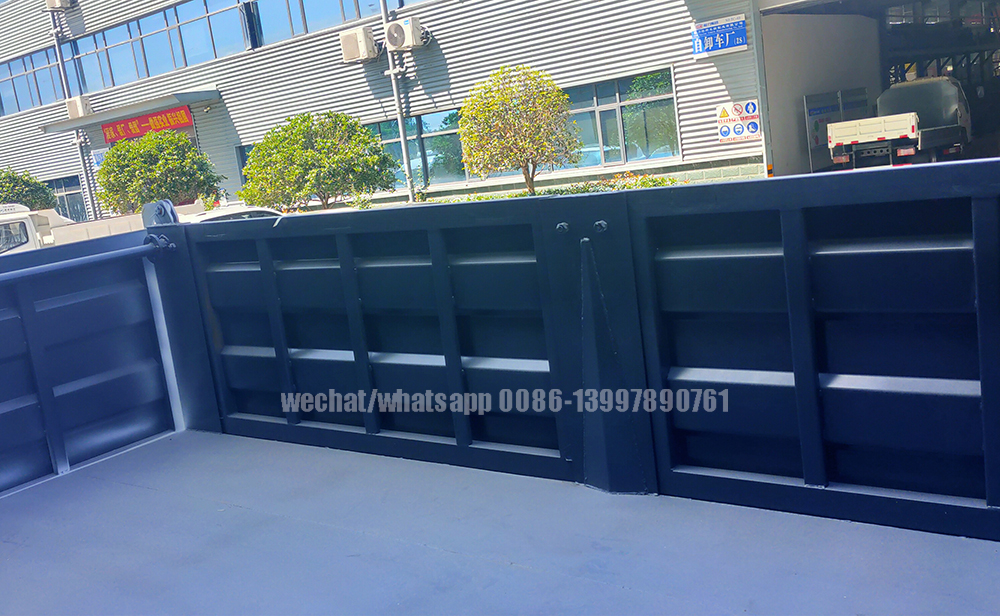

Dongfeng 4X4 AWD Dump Truck Mounted Crane 2 Tons Image 6



 Cooperation Partner

Chassis BrandWe are professional special purpose vehicles manufacturer and exporter in china, we produce and sale trucks such as garbage compactor truck, Water Delivery Truck,combined sewer cleaner truck, Asphalt Distribution Truck, Oil Tank Truck, Semi Trailer, Refrigerator Trucks, Fireworks Transportation Truck, Cargo Trucks, etc..

Welcome to contact us for more information of the Dongfeng 4X4 AWD Dump Truck Mounted Crane 2 Tons at any time.
