DF3VIE showing vedio
2 year ago

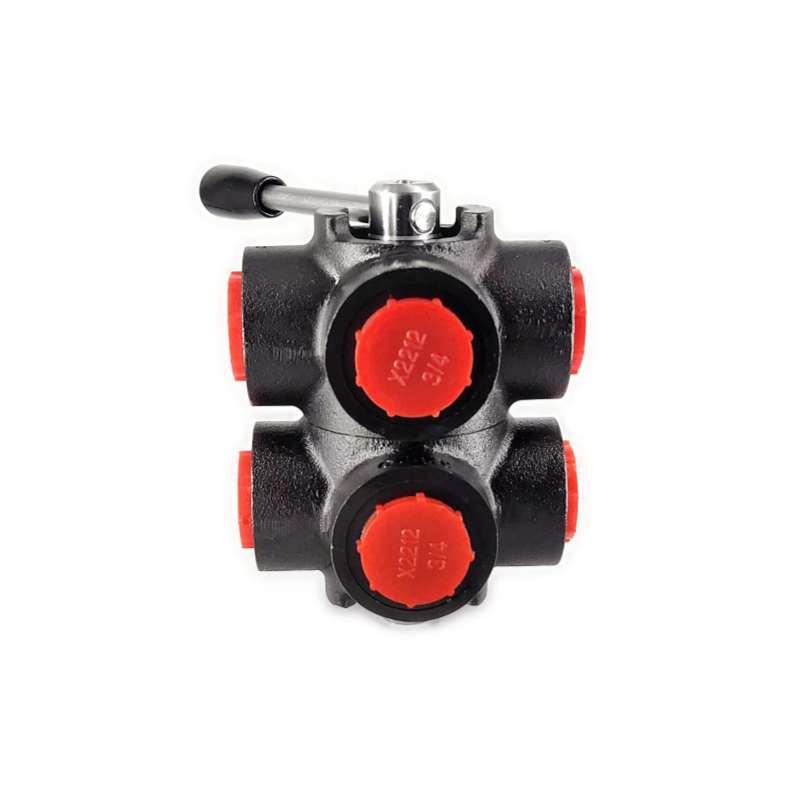

This Roraty Spool Valve is introduced by Haohong hydraulic from the OM Company.It is one kind of Hydraulic Directional Control Valves.You could find it by click this link.(DIVERTER DF 6 - OM Group (groupmarchesini.com))This valve is made up by two 3-way diverter valves coupled together.Each of the two valves is used to divert the inlet flow towards two ports.A single lever controlsboth sections at the same time.Hydraulic Check Valves should be fixed before or behind this valve to ensure the direction of fluid.After this valve,Flow Control Valves are needed to control the rate of fluid.
CONNECTIONS:
Connect P and P'to the 2 pressure flows,ports A andB to the first actuator and ports A'and B'fo the secondactuator.With lever in position 1,P is connected to A andP'to A';with lever in position 2,P is connected to B andP'to B'.With lever in the central position all ports areconnected to each other (open centre).

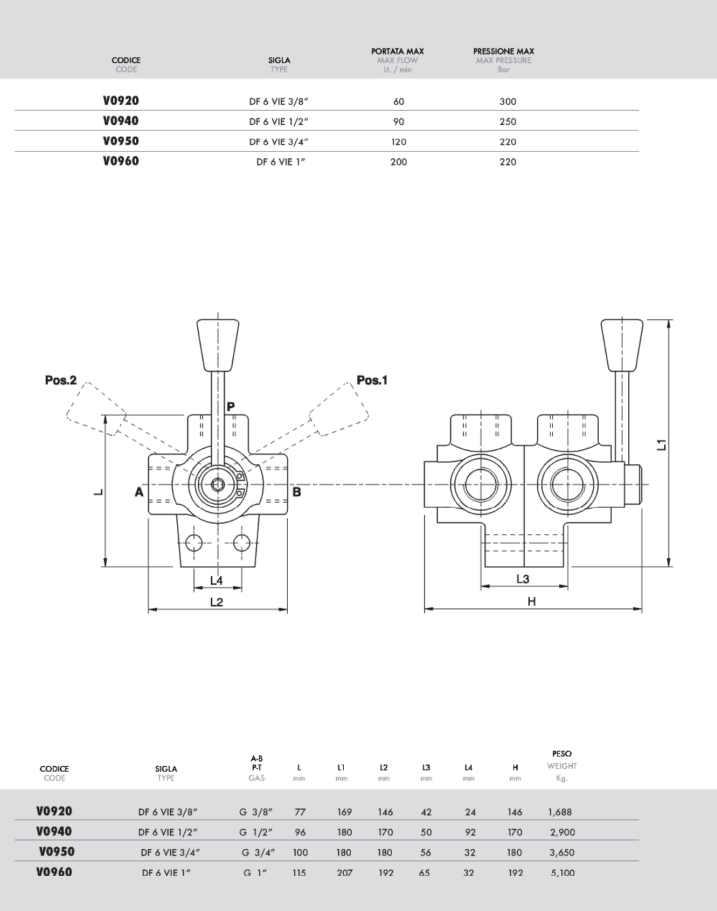

Parameters and character:
