fan blades with shaft bushing

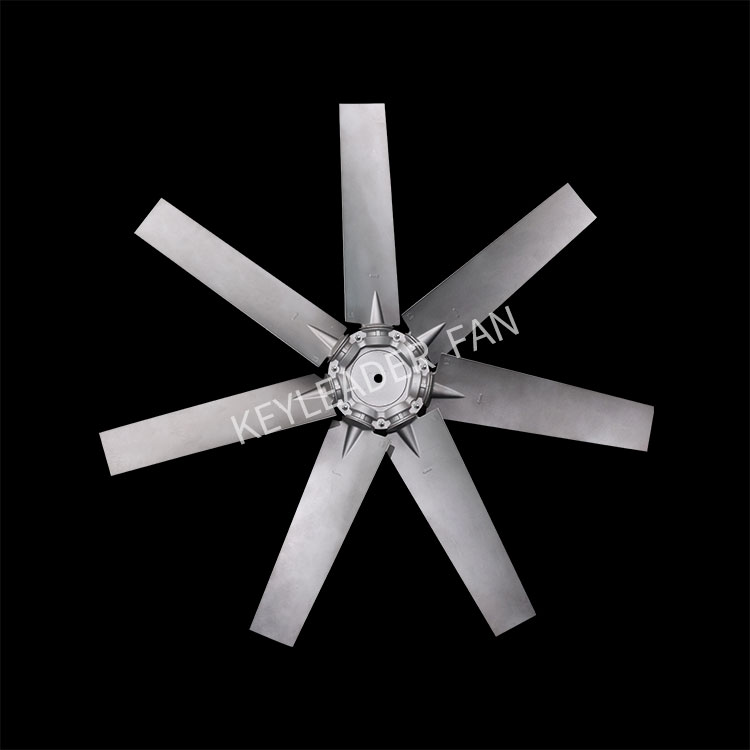

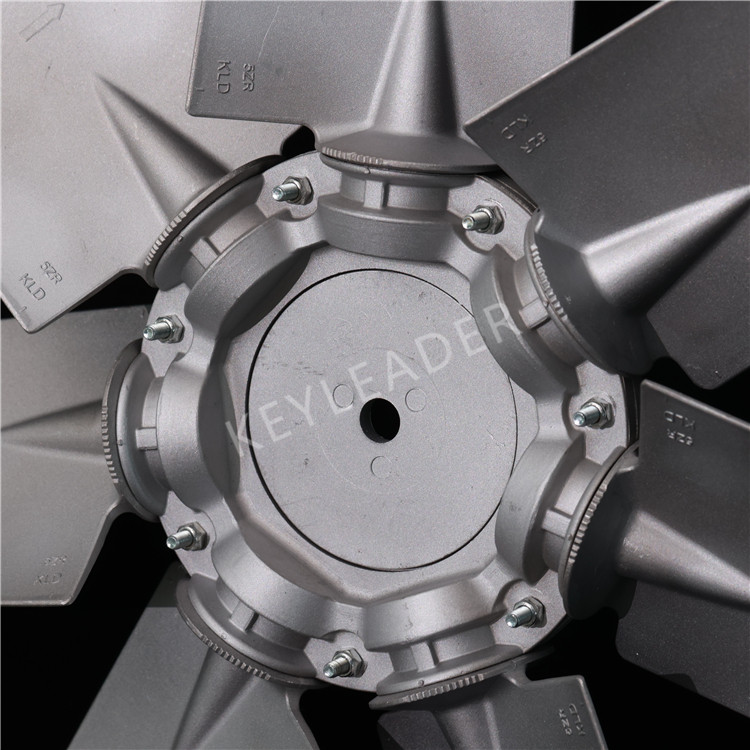

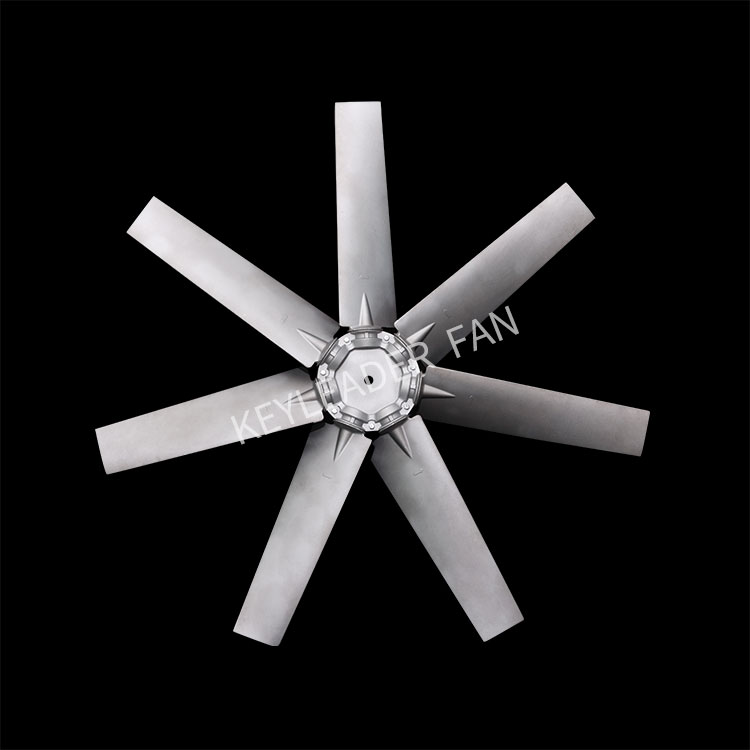

P5 aluminum alloy fan blades(7 leaves)

axial fan impeller

axial fan blades

Model No.: P5-AL-7

Product Name：P5 aluminum alloy 7 blades axial fan wheel

Diameter size: 335-1070mm

Air volume: 695-127373m³/h

We specializing in the production of kinds of pesticide dispenser fan blades, fog cannon fan blades, engine fan blades, radiator fan blades, axial flow fan blades, fan blades, construction machinery fan blades, air conditioning fan blades, cooler fan blades, cooling tower fan blades, air compressor fans, generator fans, generator set fans, snow maker fans, forklift fans, excavator fans, Cooling blades of road roller fan and other equipment.

·Fan blade size range: 240mm --- 2120mm, it can be customized within the size range;

·Mounting hole size, fan rotation direction, air blowing and suction: all can be customized according to requirements;

·Air volume: 280 - 789052m ³/ h. The factors affecting the air volume include rotating speed, power, fan diameter, number of blades, blade angle and blade model. The air volume shall be calculated according to the specific data;

·Blade material: explosion-proof nylon, glass fiber reinforced nylon, aluminum alloy.

Low pressure produces large air volume. Keyleader axial flow fan blade is a good choice for ventilation devices in industry, agriculture and animal husbandry. Our blades are very suitable for ventilation and heat dissipation, and can be applied to high and low temperatures from - 40 ° C to + 110 ° C. The wind blade adopts streamlined curve and lightweight design, so that the wind blade can achieve high energy efficiency and low consumption.

The corrosion resistant material of axial flow fan blade is suitable for use in various harsh environments.

Small fan P3, S14, diameter: 204mm – 709mm, number of blades: 3,4,5,6,8,10,12

Medium sized fan 5Z, 7z, P4, P5, K6, diameter: 320mm – 1250mm, number of blades: 3,4,5,6,7,8,9,12,16

Large fan P5, P6, K6, 6W, 9W, diameter: 330mm – 2120mm, number of leaves: 3,4,5,6,7,8,9,12,16

Product features: adjustable angle, high and low temperature resistance, low noise, high efficiency and corrosion resistance.

·Fan blade customization requires customers to provide fan diameter, mounting hole size or mounting flange size, rotation direction and air flow direction.
