Zhongshi API Piston Sucker Rod Pump Tubing Pump1
2 year ago
The subsurface sucker rod pumps are manufactured in accordance with API 11AX, and have been API monogrammed and ISO 9001 licensed. Technology was introduced from USA in 1980' s. More than 40 models and sizes of sucker rod pumps are available with the diameter ranging from 28 mm to 108 mm
Sucker Rod pump is also known as insert rod pump, it is one type of the conventional sucker rod pumps. The rod pump is connected to the sucker rod directly; it can be pulled out with sucker rod and does not influence the tubing, so the well inspection and work over is more convenient. It can save half times and reduce cost of the pumping test, thus the rod pump is suitable for the deeper well.
| Specification | Nominal Pump Bore (in) | Plunger Length(ft) | Max.O.D.(mm) | Rod(in) | Tubing(in) | Pump Constant (m3/d) | Stroke (m) |
| 20-112RHBC | 1.12 | 4~6 | 46.7 | 3/4 | 2 3/8 | 0.92 | ≤7.5 |
| 20-112RHBM | 44.7 | ||||||
| 20-125RHBC | 1.25 | 47.5 | 3/4 | 2 3/8 | 1.14 | ||
| 20-125RHBM | 44.7 | ||||||
| 25-150RHBC | 1.5 | 59.5 | 3/4 | 2 7/8 | 1.64 | ||
| 25-150RHBM | 55.6 | ||||||
| 25-175RHBC | 1.75 | 59.5 | 3/4 | 2 7/8 | 2.24 | ||
| 25-175RHBM | 55.6 | ||||||
| 30-225RHBC | 2.25 | 72.1 | 3/4 | 3 1/2 | 3.69 | ||
| 30-225RHBM | 71.7 |

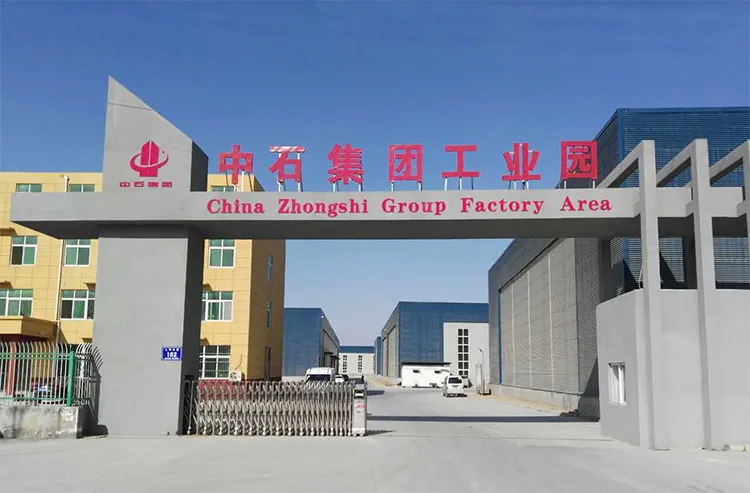

Company for sucker rod pump manufacturing
