Aquaculture Waste Water Outlet Quality
2 year ago
30TPD Compact Aquaculture Wastewater Treatment Plant
Characteristics of Farming and Breeding Waste Water
High Concentration of Organic Matter
-There Is a Lot Of Suspended Solids
-With Dark Color
-Contains a Lot Of Bacteria,Nitrogen, Phosphorus &Other Nutrients
-Pollutants Have Good Biodegradability because of Large Mount Animal Excrement
Loren New Agricultural Waste Water Disposal System
We have Successfully Developed a New Effluent Treatment Process Based On Traditional Effluent Treatment And Combination With Our Many Years Engineering Practice Experience, To Assure All Effluent Can Be Reused or Can Be Truly Achieved as Zero Discharge.
Feature of Loren Integrated Waste Water Module System
-Low Investment,
-Advanced Technology
-Small Footprint Space
-Easy Operation
-Excellent Clear Water Quality Outlet Effect
-Can Meet Reuse Standard & Truly Achieves Zero Discharge

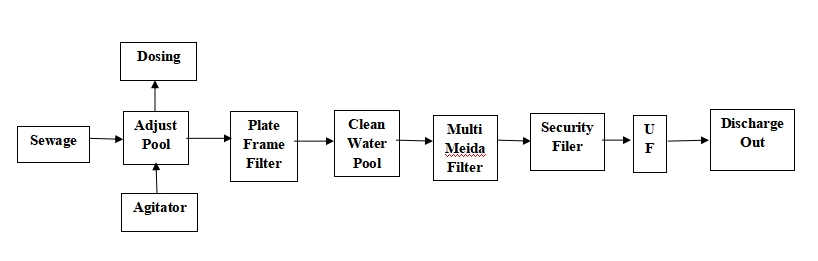

Flow Chart of Compact ETP System
Aquaculture ETP Configuration Table (0-3M3/h Capacity)
|
SN |
Equipment Item |
Specification |
Unit |
Qty |
|
1 |
Coated CS Compacted Integrated ETP |
7.5*2.0*2.6m |
Set |
1 |
|
2 |
Lift Pump |
0.55KW,3-5M3/h, 15m Head |
Set |
1 |
|
3 |
Pneumatic Diaphragm Pump |
Support Aluminium Material |
PC |
1 |
|
4 |
Plate Frame Filter Press |
XM5/450 |
Set |
1 |
|
5 |
Acid and Alkali Dosing Device |
300L |
Set |
1 |
|
6 |
SS304 Mixer |
Matching |
Set |
1 |
|
7 |
Dosing Pump |
300L Diaphragm Metering |
Set |
1 |
|
8 |
PAC Dosing Tank |
300L PE Tank |
Set |
1 |
|
9 |
SS304 Mixer |
Matching |
Set |
1 |
|
10 |
PAC Dosing Pump |
Diaphragm Metering |
Set |
1 |
|
11 |
PAM Dosing Tank |
300L PE Tank |
Set |
1 |
|
12 |
SS304 Mixer |
Matching |
Set |
1 |
|
13 |
PAM Dosing Pump |
Diaphragm Metering |
Set |
1 |
|
14 |
Multiple Media Filter |
DN300 FRP Structure |
Set |
1 |
|
15 |
Activated Carbon Filter |
DN300 FRP Structure |
Set |
1 |
|
16 |
Security Filter |
3-5M3/h SS304 Structure |
Set |
1 |
|
17 |
SS304 Mixer System |
1.5KW, 23m3/H |
Set |
1 |
|
18 |
Cast Iron Submersible Pump |
40m3/h, 2.2KW |
Set |
1 |
|
19 |
Auto Suction Pump |
5m3/h,0.55KW, 20M Head |
Set |
1 |
|
20 |
E-Box |
Chint Elements |
Set |
1 |
|
21 |
Net Weight |
2000 kgs |
Set |
1 |
Farming Breeding Waste Water Treatment System Applicant Fields
-Breeding Wastewater (Small Water Volume, Only Ensure Clear Water)
-Aquaculture Waste Water
-Ink Wastewater of Printing Industry
-Packing Industry Waste Water
-Wood Company Melamine Paper Printing Wastewater
-Spray Paint Sewage
-Cosmetics Production Wastewater
-Garment Factory Printing Wastewater
- Machinery Processing Plant Wastewater
-Cutting Fluid Wastewater
-Pickling Wastewater
-Machined Workshop
-Small Volume STP
