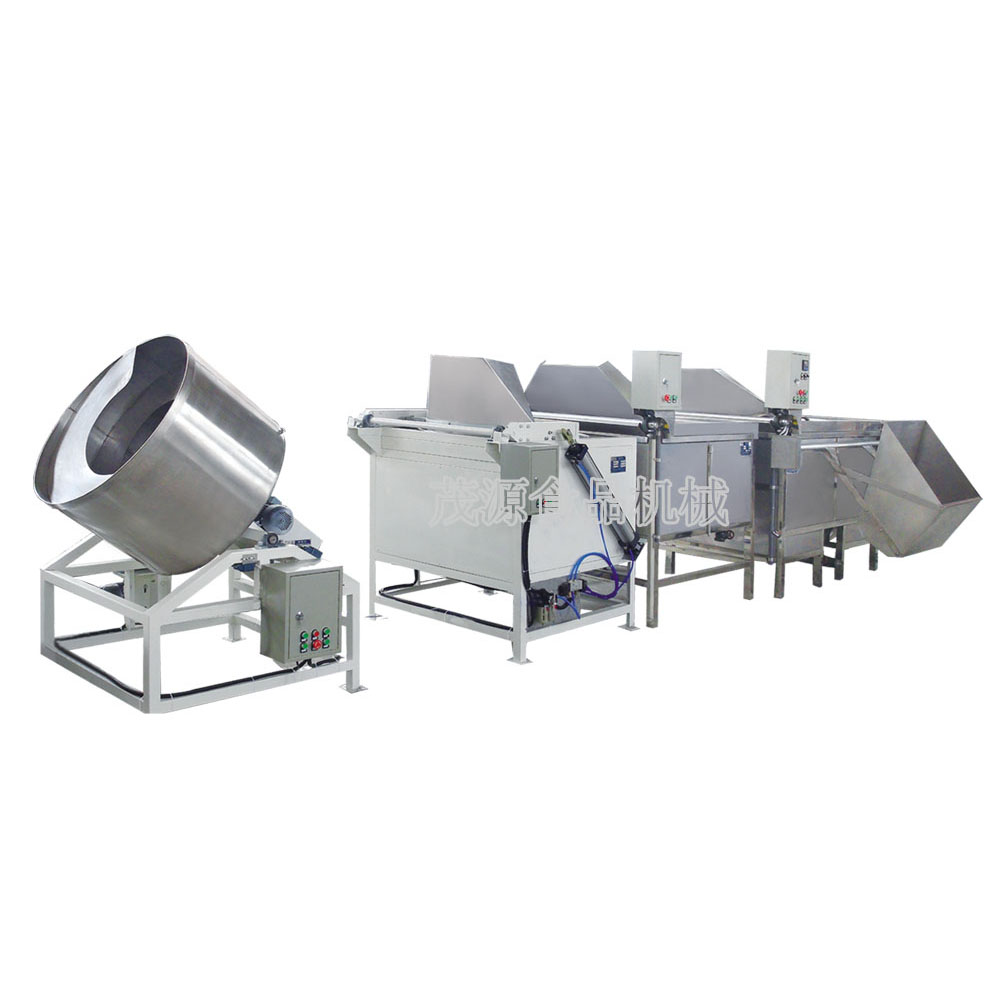

frying peanut production line_2021129113834
4 year ago
Introduction of Equipment Performance and Structure
This is a nuts batch frying machine.The machine is mainly composed of airframe, frying pan, feeding cage, discharging system,it is widely used in peanut , spicy crisp, beans, corn, fried rice and other fried food . The heating speed is fast and the temperature is automatically adjusted according to the set temperature. Stainless steel material: 304, the low loss, high efficiency and full automatic fryer can raise the temperature in short time, control the temperature automatically, feed and discharge automatically, and it also
has a temper protection device. Heating method: coal-fired, diesel-fuel-fired, gas-fired, electric-fired. Selectable shape of charging basket square or round.
Equipment parameters, usage data
|
MODEL |
RQ(Y)J--F400 |
RQ(Y)J—F/Y500 |
RQ(Y)J—F600 |
RQ(Y)J-F800 |
|
TEMP RANGE（℃） |
40-250 |
40--250 |
40-250 |
40-250 |
|
DIMENSION（mm) |
1600*1470*1500 |
1800*1660*1750 |
2000*1860*1750 |
2200*2100*1750 |
|
FRYING AREA(m2) |
0.3 |
0.45 |
0.65 |
0.85 |
|
OUT PUT(P/B)（Kg/h） |
400/120 |
60 |
600/200 |
800/250 |
|
VOLUME PER POT（Kg） |
45--50 |
0.45 |
70--80 |
90-100 |
|
OIL CAPACITY（Kg） |
400 |
0.55 |
800 |
900 |
|
MOTOR POWER（Kw） |
0.37 |
380 |
0.75 |
0.75 |
|
VOLTAGE（V） |
380/220 |
50 |
380/220 |
380/220 |
|
FREQUENCY（Hz） |
50 |
9-12 |
50 |
50 |
|
GAS CONSUMPTION(Kg/h) |
4--7 |
13-17 |
10--12 |
12-14 |
|
OIL CONSUMPTION(kg/h) |
6--8Kg |
7-9KG |
8.5--10Kg |
10-12 |
|
WEIGHT(kg) |
450kg |
600kg |
800kg |
1000kg |
Features of equipment advantages
The deep frying pan is all made of stainless steel with acid resistance and heat resistance, automatic temperature control, gas alarm
device, high degree of automation, with the characteristics of safety protection circuit, stable ignition, accurate control, strong
anti-interference ability, long safe service life and so on.
Types of processed products, finished products and processes
Mainly used for peanut, broad beans, corn flowers and other food fried, the finished food is crisp and sweet.

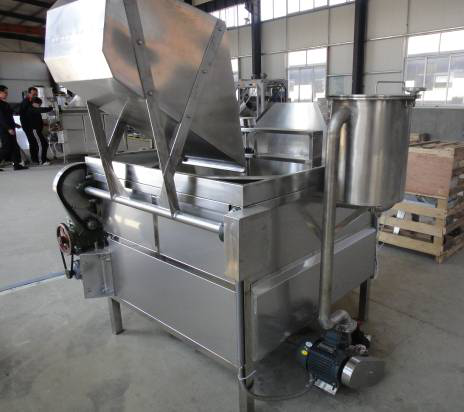

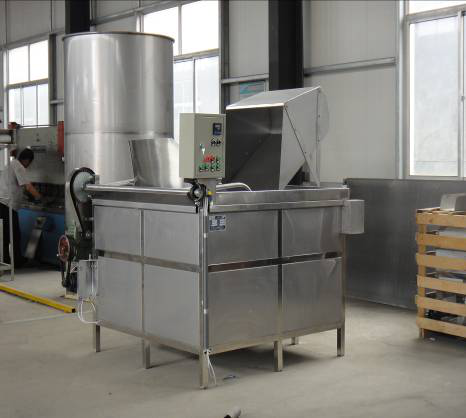

Pictures of batch fryer
